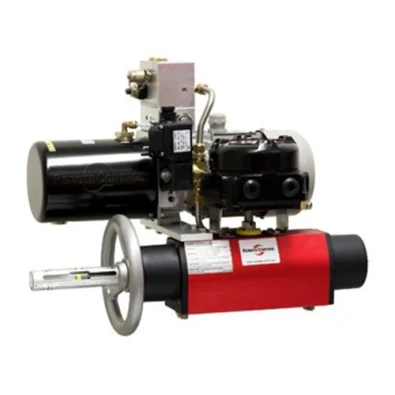

Rotork Rce-Sr - Electro-Hydraulic Actuator

Model Number: RCE-SR

Rotork's RCE-SR range of electro-hydraulic actuators provide high levels of torque in relation to size. RCE-SR actuators offer a cost effective alternative to a spring return electric actuator and are suitable for use across a range of applications which include district heating plants and tunnels. A simple and robust design that is made for direct mounting on valves (according to ISO standards).

Features and benefits of the Rotork RCE-SR actuator range include:

  • 50 Nm – 5,000 Nm. (442 lbf. in. – 44,248 lbf. in.)
  • On – Off and positioning through impulse control from external system
  • Max pressure: 10 bar/ 145 psi (RCE265 8bar/115psi)
  • Temp: -20ºC to +40ºC (-4ºF to +104ºF)
  • Mounting face according to international standard ISO5211, DIN3337, DIN79, NAMUR, VDI/VDE 3845
  • Mounting kits for all 90° valves and accessories
  • Spring cartridge with pretensioned springs. Blow-out-proof drive shaft
  • Scotch Yoke provides increased torque in the end positions, smooth action, precise control, low air consumption and compact dimensions
  • High-quality materials for long working life and optimum corrosion resistance. Extruded anodized aluminium housing, RCE 210-260 have drive shafts and screws of stainless steel
  • Long life, maximum reliability
