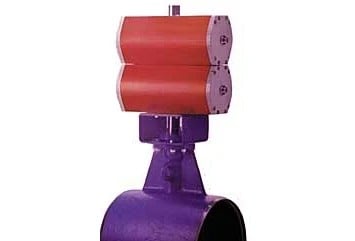

Rotork Rc88 - Compact Pneumatic Scotch Yoke Actuator High Torque

Model Number: RC88

The Rotork RC88 is an extremely high torque, compact, pneumatic quarter-turn actuator. Its scotch yoke design is particularly suited for valves with high start or end torque requirements. It is available in double-acting and spring-return configurations with torque output up to 7,600 Nm (67,000 lbf.in).

Key feature and benefits of RC88 Actuators are:

  • High torque: 2,500 to 7,600 Nm
  • For On-Off and modulating applications
  • Robust, compact actuators
  • Double-acting or single-acting with spring-return
  • Pre-tensioned springs for safety
  • Connection accessories according to VDI/VDE3845 NAMUR
  • Scotch yoke design gives high torque in the end positions
  • High reliability, long life, three-year warranty
  • High efficiency, low air consumption
  • Housing in anodised aluminium
  • Temperature range: -20°C to +80°C

Options available include: Manual override, RCT extra corrosion protection, epoxy finish, customer specified paint, quick acting, speed restrictor, low temperature, high temperature, oil hydraulics, stainless steel drive shaft and screws.
