Burkert Type 8804 - 2/2 & 3/2 Way Ball Valve With Electric Rotary Actuator

Model Number: 8804

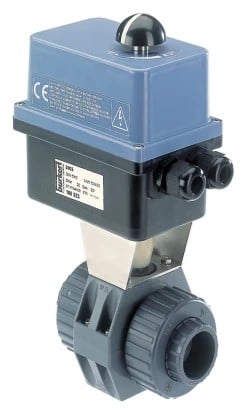

The electric ball valve Type 8804 consists of an electrical rotary actuator and a 2/2-way or 3/2-way ball valve made of stainless steel. 2-way variants are available with a 2-piece or 3-piece ball valve for various applications. The 3-way version is offered with L or T boreholes (on request). The rotary actuator is compactly built. It can be used also as a single device for the operation of other control members (see data-sheet Type 3003).

  • Port Connection: G 1/4 - G 2 1/2
  • Body Material: Stainless steel 1.4408
  • Seal Material: PTFE
  • Max. Pressure: 100 Bar
