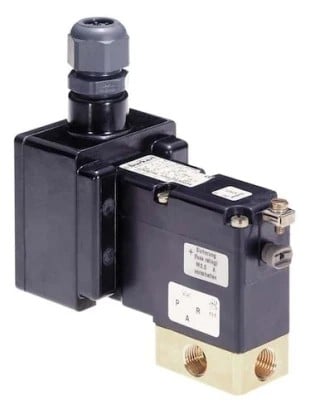

Burkert Type 780 Eex Ed - 3/2 Way Hazardous Area Solenoid Valve

Model Number: 780 EEx ed

The BURKERT TYPE 780 direct-acting 3/2 way universal function solenoid valve is manufactured with a pivoted armature as the switching method. This unique valve design hermetically isolates the actuator from the fluid. It provides a long service life, even in un-lubricated applications. Designed to meet ATEX standards to EEX-ed IIC T5 the type 780 valve is manufactured in both Stainless steel and brass with a choice of seal materials.

  • Body Materials -Brass or stainless steel
  • Port Sizes: ¼" or sub-base mounted
  • Seal materials – NBR or FKM
  • Operating voltages 24, 110, 230 V/UC
  • Duty cycle 100% continuously rated
  • Cycling rate approx. 30 c.p.m.
  • Rating IP 65
  • EX approval - II 2G EEx-ed-IIC T5 PTB03 ATEX 1030X

Can't find the right part?

We're official distributors, we can get it

Type 0780 Solenoid Valve, 3/2 Way Universal Inserted, 2mm Orifice Size, FKM Seals, Stainless Steel, 1/4" BSP, 24VUC, 40 Watt Inrush 3 Watt Hold, *JW10 Cable Length 3000mm *PD30 Atex Approved

£344.00 (ex VAT)

£412.80 (inc VAT)

Only 1 in stock
1-2 Days

Type 0780 solenoid valve Circuit function C 3/2-ways; normally closed; output A balanced Orifice size DN 04,0 4,0mm (5/32") Seal material DWST FF FKM Body material VA stainless steel Port connection LTA GM82 G1/4 threaded port Voltage SP 024 24 volts AC/DC 40 watt inrush, 3 watt hold Special Feature VAR1 JA01 Terminal box with screwed cable connection M 20 x 1,5 (with approval PTB 00 ATEX 3119 X) & fuse (with approval PTB 01 ATEX 2064 U) VAR2 PD29 Appr. PTB 03 ATEX 1030X II 2G, II 2D, IEC Ex PTB 05.0026X, Ex ed IIC T4 or Ex ed mb IIC T4 or Ex ed ia IIC T4 or Ex ed mb ia IIC T4, Ex tD A21 IP65 T 135

Type 0780 solenoid valve Circuit function C 3/2-ways; normally closed; output A balanced Orifice size DN 04,0 4,0mm (5/32") Seal material DWST FF FKM Body material VA stainless steel Port connection LTA GM82 G1/4 threaded port Voltage SP 024 24 volts AC/DC 40 watt inrush, 3 watt hold Special Feature VAR1 JA01 Terminal box with screwed cable connection M 20 x 1,5 (with approval PTB 00 ATEX 3119 X) & fuse (with approval PTB 01 ATEX 2064 U) VAR2 PD29 Appr. PTB 03 ATEX 1030X II 2G, II 2D, IEC Ex PTB 05.0026X, Ex ed IIC T4 or Ex ed mb IIC T4 or Ex ed ia IIC T4 or Ex ed mb ia IIC T4, Ex tD A21 IP65 T 135

£378.00 (ex VAT)

£453.60 (inc VAT)
