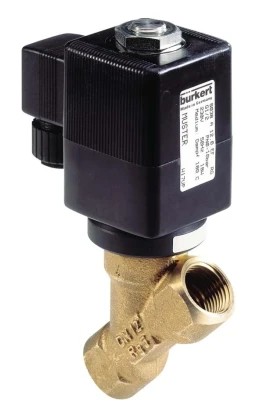

Burkert Type 6038 - 2/2 Way Angle Seat Solenoid Valve

Model Number: 6038

The BURKERT TYPE 6038 valve is a 2/2-way solenoid valve with direct-acting switching character, closed by spring force. It is pressure-relieved and switches without differential pressure. The magnetic core is linked to the seat tube. When the magnetic core is activated, a drilled hole is opened up by a pre-stroke. The core area within the valve is relieved of pressure, and the valve is opened through magnetic force. In the inactive state, the valve is closed by a pressure spring. In doing this, the closing force of the spring is assisted by the pressure of the medium on the magnetic core.

  • Port Connection: G 3/8, G 1/2, G 3/4, G 1
  • Body Material: Brass, stainless steel on request
  • Seal Material: FKM, others on request
  • Max Pressure: 10 Bar
  • Piston-operated valve with pressure relief
  • Switches without differential pressure
  • For neutral media and steam
  • Temperatures up to +160 °C
  • Fast switching
