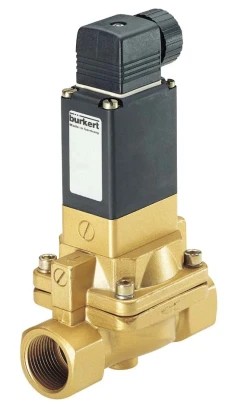

Burkert Type 5282 - 2/2 Way Solenoid Valve For Slightly Contaminated Fluids - 93906451

Burkert Type 5282 - 2/2 Way Solenoid Valve For Slightly Contaminated Fluids
Part Number: 93906451

Burkert Type 5282
Circuit function A - 2/2-ways; normally closed
Orifice size 13,0 - 13mm (1/2")
Seal material BB - NBR
Material MS - brass
Port connection GM84 - G1/2 threaded port
Coil size 0 - type specific
Voltage 110 - 110 volts
Frequency 50 - 50 Hz
Power consumption 08 - 8 watt
Variable code 1 JH54 - Cable plug type 2518 (00314802), without wiring 3 poles, 0-250 V AC/DC
Variable code 2 LF02 - electr. feedback signaller 1060-10S
Variable code 3 MT50 - pilot circuit function C or circuit function D
Pressure (bar) (max) 16
Pressure (bar) (min) 0,2

HS Code 84818079
Country of Origin Germany
Net Weight 0.682 KG
