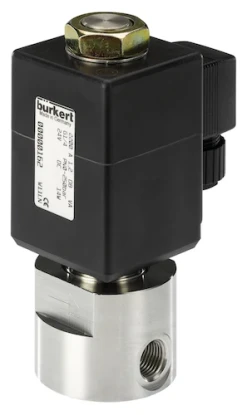

Burkert Type 2200 - 2/2 Way High Pressure Solenoid Valve

Model Number: 2200

The direct-acting Burkert valve Type 2200 is delivered with circuit function normally closed. The valve is especially developed for high pressures. The characteristic of the valve construction is the seat design and the sealing element. The conical sealing element allows the switching at high pressures with relative low coil capacity and seal setting.

  • Port Connection: G 1/4
  • Body Material: Stainless steel 1.4401
  • Seal Material: Stainless steel/PCTFE
  • Max Pressure: 250 Bar
  • Direct-acting, normally closed and normally open
  • Electrical connection cable plug Form A
  • Also available with ATEX approval
