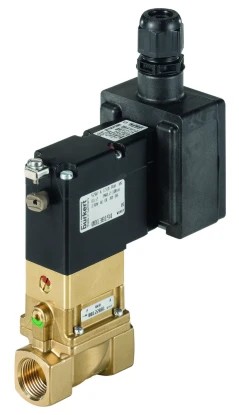

Burkert 5282 Eex D - 2/2 Brass Or Stainless Steel Hazardous Area Solenoid Valve

Model Number: 5282 EEx d

The BURKERT type 5282 valve hazardous area solenoid valves are suitable for pipe sizes from DN15 –DN65. These 2-way normally closed or Normally open valves meet EEx ed IIC T5 II2G standards and are available with 3mt cables or Junction box. Manufactured in brass body or Stainless steel with Viton diaphragm as standard and options for EPDM or Buna. A manual override and isolating diaphragm is a standard feature on this valve range.

  • Pressure range 0.2 – 10 bar
  • Port Connections Threaded port G1/2“ – G21/2“
  • Orifice DN 13 up to 65 mm
  • Operating voltages 24, 110, 230 V/UC
  • Duty cycle 100% continuously rated
  • Rating IP65
  • Approvals: EEx m II T4 with moulded cable & EEx me II T4 with terminal box
