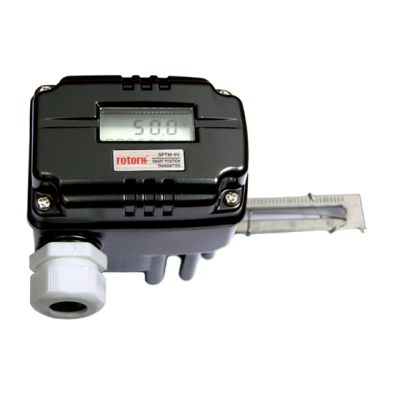

Model Number: SPTM-5V

The SPTM‑5V is a loop-powered smart position transmitter designed to convert valve or actuator position into a 4–20 mA analog signal. Developed by Rotork YTC, it supports both linear and rotary motion applications in industrial process control systems.

Key Features

  • Signal Output: 4–20 mA (2-wire, loop-powered)
  • Mounting Types:
  • SPTM-5VL – Linear motion
  • SPTM-5VR – Rotary motion
  • High Accuracy:
  • Linearity: ± 1% FS
  • Hysteresis: ± 0.2% FS
  • Repeatability & Sensitivity: ± 0.2% FS
  • Explosion-proof & Intrinsically Safe Options
  • IP67 Rated Aluminium Housing (dust & waterproof)
  • Operating Temp: –40 °C to +85 °C
  • Easy Calibration: 2-point and 5-point (via buttons)
  • Supply Voltage: 9–28 V DC
  • Direct/Reverse Action Selectable
  • LCD Display (optional)
