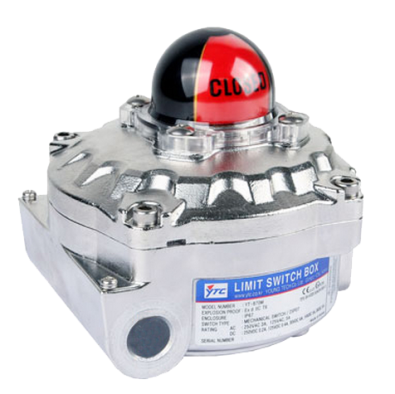

Rotork YTC Limit Switch Box YT-875

Free UK Shipping over £100

Fast Shipping

Worldwide Shipping

Technical Sales Team

Download Specification

Model Number: YT-875

Request a quote

Explosion-proof construction – Certified Ex db IIC T6 (gas) / Ex tb IIIC T85 °C (dust)
Visual position indicator – Clear valve position display
Easy cam adjustment – Quick and accurate switch setting
8-point terminal strip – Multiple wiring options
Dual conduit entries – Separate inlets for power and signal
Universal actuator compatibility – Fits most rotary actuators
IP67 protection – Dust-tight and water-resistant
Operating range – –20 °C to +60 °C
Conduit thread options – ½″ NPT, ¾″ PF, M20 metric, etc.
Switch options – 2 × SPDT mechanical or 2 × proximity sensors
Electrical ratings – AC up to 125/250 V (5–10 A), DC 12–24 V for sensors
Mounting standards – NAMUR VDI/VDE 3845 and ISO 5211
Certifications – ATEX, IECEx, CSA, CCC
