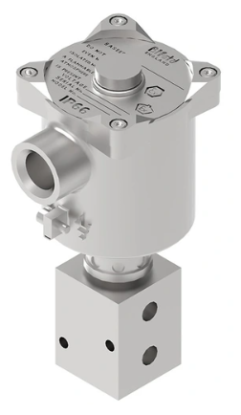

Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves
Free UK Shipping over £100
{"ga_data":{"item_list_id":744,"item_list_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves FP03","items":[{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03\/450\/S2\/M\/32\/NC\/V\/RK-04)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03\/S0A\/C3\/43\/SC\/S\/57I-24D\/M\/35)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03\/S0A\/M\/32\/NC\/S\/77A-24D\/65)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03\/S0A\/M\/32\/NC\/S\/77A-24D\/65\/[M801])","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03\/S0A\/M\/32\/NC\/V\/77A-24D\/65)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03\/S0A\/M\/32\/NO\/S\/77A-24D\/65)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03\/S2\/M\/32\/NC\/S\/77A-24D\/28LP\/[M801])","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03\/S2\/M\/32\/NC\/S\/77A-24D\/28LP\/K85\/[M801])","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03\/S2\/M\/32\/NC\/V\/77A-24D\/28LP\/[M801])","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03\/S2\/M\/32\/NC\/V\/77A-24D\/28LP\/H2S\/[M801])","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-02-32-NC-AL-77G-24D-30)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-02-32-NC-AL-77U-24D-15-K85)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-02-32-NC-AL-78A-370-K85)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-02-32-NC-AL-78A-370-M)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-02-32-NC-AL-78A-370-ML-K85)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-02-32-NC-AL-78G-370)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-02-32-NC-V-77A-110A-ML-30-K85)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-02-32-NC-V-77A-220A-30)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-02-32-NC-V-77A-24D-08-K85)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-02-32-NC-V-77A-24D-15)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-02-32-NC-V-77A-24D-15-K85)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-02-32-NC-V-77A-24D-30)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-02-32-NC-V-77A-24D-30-K85)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-02-32-NC-V-77A-24D-M-15)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-02-32-NC-V-77A-24D-M-15-H2S)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-02-32-NC-V-77A-24D-M-30)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-02-32-NC-V-77A-24D-ML-15)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-02-32-NC-V-77G-24D-ML-30)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-02-32-NC-V-77I-24D-15)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-02-32-NC-V-77I-24D-30-K85)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-02-32-NC-V-77U-24D-M-15)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-02-32-NC-V-78A-370)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-02-32-NC-V-78A-370-K85)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-02-32-NC-V-78A-370-M)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-02-32-NC-V-78A-370-ML)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-04-32-NC-AL-78A-370-K85)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-04-32-NC-AL-78G-370)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-04-32-NC-SA-78A-370-K85)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-04-32-NC-V-77A-24D-15-K85)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-04-32-NC-V-78A-370)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-04-32-NC-V-78A-370-K85)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-04-32-NC-V-78A-370-ML)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-M1-32-NC-AL-28A-370-M)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-M1-32-NC-AL-77G-24D-M-30)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-M1-32-NC-AL-78G-370-K85)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-M1-32-NC-V-74AT4-24D-36)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-M1-32-NC-V-74AT4-24D-36-K85)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-M1-32-NC-V-77A-220D-ML-30)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-M1-32-NC-V-77A-24D-30)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-M1-32-NC-V-77A-24D-M-30)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-M1-32-NC-V-77A-24D-ML-30)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-M1-32-NC-V-77U-24D-ML-30-K85)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-M1-32-NC-V-78A-370)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-M1-32-NC-V-78A-370-K85)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-M1-32-NC-V-78A-370-M)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-M1-32-NC-V-78A-370-ML)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-M7-32-NC-AL-77G-24D-30)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-M7-32-NC-AL-77G-24D-30-K85)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-M7-32-NC-AL-78A-370)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-M7-32-NC-AL-78A-370-ML)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-M7-32-NC-V-77A-125D-30)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-M7-32-NC-V-77A-24D-08)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-M7-32-NC-V-77A-24D-15)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-M7-32-NC-V-77A-24D-30)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-M7-32-NC-V-77A-24D-30-K85)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-M7-32-NC-V-77A-24D-M-30-K85)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-M7-32-NC-V-77A-24D-ML-15)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-M7-32-NC-V-77A-24D-ML-30)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-M7-32-NC-V-77A-24D-MLT-57)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-M7-32-NC-V-77A-48D-30)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-M7-32-NC-V-77U-24D-08-K85)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-M7-32-NC-V-77U-24D-30-K85)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-M7-32-NC-V-78A-370)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-M7-32-NC-V-78A-370-K85)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-M7-32-NC-V-78A-370-M-K85)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-M7-32-NC-V-78A-370-ML)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-M8-32-NC-AL-77G-24D-30)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-M8-32-NC-AL-77G-24D-M-30)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-M8-32-NC-V-77A-24D-08)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model FP03 - Stainless Steel Hydraulic Solenoid Valves - (FP03P-M8-32-NC-V-77A-24D-15)","price":"0.00","quantity":1,"item_brand":"Bifold"}]}}
Type: Hydraulic solenoid‑operated valve, direct‑acting for reliable control
Construction: 316L stainless steel body — corrosion‑resistant and suitable for industrial environments
Operation: Typically configured as 2‑way or 3‑way, 2‑position valve (with normally open or normally closed options)
Pressure Rating: Designed for high‑pressure hydraulic service — dependent on model but generally suitable for demanding fluid power applications
Flow Capacity: Moderate flow capability appropriate for pilot and control circuits in hydraulic systems
Seals & Temperature: Elastomer seal options (e.g., Nitrile or alternatives) offering standard industrial temperature and media compatibility
Electrical: Multiple solenoid coil voltage choices (e.g., 24 V DC, 110/230 V AC) with manual override or latch features available on some variants
Approvals: Certain configurations come with hazardous area or industrial safety certifications
Mounting: Flexible mounting options such as sub‑base or panel mount depending on the specific model
Part Number
Description
Price
Quantity
FP03/450/S2/M/32/NC/V/RK-04 - Repair Kit including labour for 16 off FP03 SOVs returned under 22-7502.
FP03/S0A/C3/43/SC/S/57I-24D/M/35 - Model Code: 4 litre per minute, Max Valve Pressure: Direct Acting Spring Return - 250bar, Connections: CETOP 03 Mounting, Valve Configuration: 4 way 3 position, Valve Configuration: Spring Centred, O-Ring Material: Nitrile -30°C to +130°C, Solenoid: Ex d, Solenoid Approval: INMETRO/IECEx Dual Certified/Labelled, Voltage/Resistance: 24VDC, Override Options: Electrical to switch or temporary manual override, Power: 6.5 Watts, Cable Entry: M20 x 1.5 Cable Entry, Option: Standard, Manifold Option: No Manifold,
FP03/S0A/C3/43/SC/S/57I-24D/M/35 - Model Code: 4 litre per minute, Max Valve Pressure: Direct Acting Spring Return - 250bar, Connections: CETOP 03 Mounting, Valve Configuration: 4 way 3 position, Valve Configuration: Spring Centred, O-Ring Material: Nitrile -30°C to +130°C, Solenoid: Ex d, Solenoid Approval: INMETRO/IECEx Dual Certified/Labelled, Voltage/Resistance: 24VDC, Override Options: Electrical to switch or temporary manual override, Power: 6.5 Watts, Cable Entry: M20 x 1.5 Cable Entry, Option: Standard, Manifold Option: No Manifold,
FP03/S0A/M/32/NC/S/77A-24D/65 - Model Code: 3 litre per minute, Max Valve Pressure: Direct Acting Spring Return - 250bar, Connections: Subbase mounting, Valve Configuration: 3 way 2 position, Valve Configuration: Normally Closed, O-Ring Material: Nitrile -30°C to +130°C, Solenoid: Ex d, Solenoid Approval: ATEX/IECEx Dual Certified, Voltage/Resistance: 24VDC, Override Options: Auto Reset, Power: 6.5 Watts, Cable Entry: M20 x 1.5 Cable Entry, Option: Standard, Manifold Option: No Manifold,
FP03/S0A/M/32/NC/S/77A-24D/65/[M801] - Model Code: 3 litre per minute, Max Valve Pressure: Direct Acting, Spring Return, 250bar, Connections: Subbase mounting, Valve Configuration: 3 way, 2 position, Valve Configuration: Normally Closed, O-ring Material: Nitrile -30°C to +130°C, Solenoid: Ex d, Solenoid Approval: ATEX/IECEx Dual Certified, Voltage/Resistance: 24VDC, Override Options: Auto Reset, Power: 6.5 Watts, Cable Entry: M20 x 1.5 Cable Entry, Option: Standard, Manifold Option: 1/4" NPT Manifold,
FP03/S0A/M/32/NC/S/77A-24D/65/[M801] - Model Code: 3 litre per minute, Max Valve Pressure: Direct Acting, Spring Return, 250bar, Connections: Subbase mounting, Valve Configuration: 3 way, 2 position, Valve Configuration: Normally Closed, O-ring Material: Nitrile -30°C to +130°C, Solenoid: Ex d, Solenoid Approval: ATEX/IECEx Dual Certified, Voltage/Resistance: 24VDC, Override Options: Auto Reset, Power: 6.5 Watts, Cable Entry: M20 x 1.5 Cable Entry, Option: Standard, Manifold Option: 1/4" NPT Manifold,
FP03/S0A/M/32/NC/V/77A-24D/65 - Model Code: 3 litre per minute, Max Valve Pressure: Direct Acting Spring Return - 250bar, Connections: Subbase mounting, Valve Configuration: 3 way 2 position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +130°C, Solenoid: Ex d, Solenoid Approval: ATEX/IECEx Dual Certified, Voltage/Resistance: 24VDC, Override Options: Auto Reset, Power: 6.5 Watts, Cable Entry: M20 x 1.5 Cable Entry, Option: Standard, Manifold Option: No Manifold,
FP03/S0A/M/32/NO/S/77A-24D/65 - Model Code: 3 litre per minute, Max Valve Pressure: Direct Acting Spring Return - 250bar, Connections: Subbase mounting, Valve Configuration: 3 way 2 position, Valve Configuration: Normally Open, O-Ring Material: Nitrile -30°C to +130°C, Solenoid: Ex d, Solenoid Approval: ATEX/IECEx Dual Certified, Voltage/Resistance: 24VDC, Override Options: Auto Reset, Power: 6.5 Watts, Cable Entry: M20 x 1.5 Cable Entry, Option: Standard, Manifold Option: No Manifold,
FP03/S2/M/32/NC/S/77A-24D/28LP/[M801] - Model Code: 3 litre per minute, Max Valve Pressure: Direct Acting Spring Return - 450bar, Connections: Subbase mounting, Valve Configuration: 3 way 2 position, Valve Configuration: Normally Closed, O-Ring Material: Nitrile -30°C to +130°C, Solenoid: Ex d, Solenoid Approval: ATEX/IECEx Dual Certified, Voltage/Resistance: 24VDC, Override Options: Auto Reset, Power: 8 Watts Energise - 2.8 Watts Holding, Cable Entry: M20 x 1.5 Cable Entry, Option: Standard, Manifold Option: 1/4 inch NPT Manifold,
FP03/S2/M/32/NC/S/77A-24D/28LP/[M801] - Model Code: 3 litre per minute, Max Valve Pressure: Direct Acting Spring Return - 450bar, Connections: Subbase mounting, Valve Configuration: 3 way 2 position, Valve Configuration: Normally Closed, O-Ring Material: Nitrile -30°C to +130°C, Solenoid: Ex d, Solenoid Approval: ATEX/IECEx Dual Certified, Voltage/Resistance: 24VDC, Override Options: Auto Reset, Power: 8 Watts Energise - 2.8 Watts Holding, Cable Entry: M20 x 1.5 Cable Entry, Option: Standard, Manifold Option: 1/4 inch NPT Manifold,
FP03/S2/M/32/NC/S/77A-24D/28LP/K85/[M801] - Model Code: 3 litre per minute, Max Valve Pressure: Direct Acting Spring Return - 450bar, Connections: Subbase mounting, Valve Configuration: 3 way 2 position, Valve Configuration: Normally Closed, O-Ring Material: Nitrile -30°C to +130°C, Solenoid: Ex d, Solenoid Approval: ATEX/IECEx Dual Certified, Voltage/Resistance: 24VDC, Override Options: Auto Reset, Power: 8 Watts Energise - 2.8 Watts Holding, Cable Entry: 1/2 inch NPT Cable Entry, Option: Standard, Manifold Option: 1/4 inch NPT Manifold,
FP03/S2/M/32/NC/S/77A-24D/28LP/K85/[M801] - Model Code: 3 litre per minute, Max Valve Pressure: Direct Acting Spring Return - 450bar, Connections: Subbase mounting, Valve Configuration: 3 way 2 position, Valve Configuration: Normally Closed, O-Ring Material: Nitrile -30°C to +130°C, Solenoid: Ex d, Solenoid Approval: ATEX/IECEx Dual Certified, Voltage/Resistance: 24VDC, Override Options: Auto Reset, Power: 8 Watts Energise - 2.8 Watts Holding, Cable Entry: 1/2 inch NPT Cable Entry, Option: Standard, Manifold Option: 1/4 inch NPT Manifold,
FP03/S2/M/32/NC/V/77A-24D/28LP/[M801] - Model Code: 3 litre per minute, Max Valve Pressure: Direct Acting, Spring
Return, 450bar, Connections: Subbase mounting, Valve Configuration: 3 way,
2 position, Valve Configuration: Normally Closed, O-ring Material: Viton -20°C
to +180°C, Solenoid: Ex d, Solenoid Approval: ATEX/IECEx Dual Certified,
Voltage/Resistance: 24VDC, Override Options: Auto Reset, Power: 8 Watts
Energise - 2.8 Watts Holding, Cable Entry: M20 x 1.5 Cable Entry, Manifold
Option: 1/4" NPT Manifold,
Please be advised of the following with regards to NACE compliancy.
This is to certify that the item listed above, comply with the customer’s order
requirements. The materials used within this product (as specified by the
customer) have been selected in accordance with ISO 15156-2/3 Annex A,
and meet the metallurgical and process requirements as mandated by NACE
MR0175 / ISO 15156. This statement is based on the condition that the
product is to be utilised in accordance with the product’s IOM manual and in
conjunction with either one of the following process media / environmental
limits as stated below:
A. Maximum chloride concentration of 50mg/L; with no restrictions on
temperature, in situ pH, or partial H2S pressure.
B. No chloride concentration limit; when a maximum temperature of 60°C and
partial pressure of H2S of 1Barg is enforced.
FP03/S2/M/32/NC/V/77A-24D/28LP/[M801] - Model Code: 3 litre per minute, Max Valve Pressure: Direct Acting, Spring
Return, 450bar, Connections: Subbase mounting, Valve Configuration: 3 way,
2 position, Valve Configuration: Normally Closed, O-ring Material: Viton -20°C
to +180°C, Solenoid: Ex d, Solenoid Approval: ATEX/IECEx Dual Certified,
Voltage/Resistance: 24VDC, Override Options: Auto Reset, Power: 8 Watts
Energise - 2.8 Watts Holding, Cable Entry: M20 x 1.5 Cable Entry, Manifold
Option: 1/4" NPT Manifold,
Please be advised of the following with regards to NACE compliancy.
This is to certify that the item listed above, comply with the customer’s order
requirements. The materials used within this product (as specified by the
customer) have been selected in accordance with ISO 15156-2/3 Annex A,
and meet the metallurgical and process requirements as mandated by NACE
MR0175 / ISO 15156. This statement is based on the condition that the
product is to be utilised in accordance with the product’s IOM manual and in
conjunction with either one of the following process media / environmental
limits as stated below:
A. Maximum chloride concentration of 50mg/L; with no restrictions on
temperature, in situ pH, or partial H2S pressure.
B. No chloride concentration limit; when a maximum temperature of 60°C and
partial pressure of H2S of 1Barg is enforced.
FP03/S2/M/32/NC/V/77A-24D/28LP/H2S/[M801] - Model Code: 3 litre per minute
Max Valve Pressure: Direct Acting Spring Return - 450bar
Connections: Subbase mounting
Valve Configuration: 3 way 2 position
Valve Configuration: Normally Closed
O-Ring Material: Viton -20°C to +130°C
Solenoid: Ex d
Solenoid Approval: ATEX/IECEx Dual Certified
Voltage/Resistance: 24VDC
Override Options: Auto Reset
Power: 8 Watts Energise - 2.8 Watts Holding
Cable Entry: M20 x 1.5 Cable Entry
Option: Standard
Manifold Option: 1/4 inch NPT Manifold
FP03/S2/M/32/NC/V/77A-24D/28LP/H2S/[M801] - Model Code: 3 litre per minute
Max Valve Pressure: Direct Acting Spring Return - 450bar
Connections: Subbase mounting
Valve Configuration: 3 way 2 position
Valve Configuration: Normally Closed
O-Ring Material: Viton -20°C to +130°C
Solenoid: Ex d
Solenoid Approval: ATEX/IECEx Dual Certified
Voltage/Resistance: 24VDC
Override Options: Auto Reset
Power: 8 Watts Energise - 2.8 Watts Holding
Cable Entry: M20 x 1.5 Cable Entry
Option: Standard
Manifold Option: 1/4 inch NPT Manifold
FP03P-02-32-NC-AL-77G-24D-30 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: 1/8" Body Ported - Stainless Steel, Valve Configuration: 3-way, 2-position, Valve Configuration: Normally Closed, O-ring Material: Fluorosilicone -60°C to +130°C, Solenoid: Ex d, Solenoid Approval: CU-TR/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Auto Reset, Power: 3.0 Watts, Cable Entry: M20 x 1.5 Cable Entry, Port Type: NPT Ports, Identifier: No Identifier, Housing: Rotating Housing,
FP03P-02-32-NC-AL-77G-24D-30 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: 1/8" Body Ported - Stainless Steel, Valve Configuration: 3-way, 2-position, Valve Configuration: Normally Closed, O-ring Material: Fluorosilicone -60°C to +130°C, Solenoid: Ex d, Solenoid Approval: CU-TR/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Auto Reset, Power: 3.0 Watts, Cable Entry: M20 x 1.5 Cable Entry, Port Type: NPT Ports, Identifier: No Identifier, Housing: Rotating Housing,
FP03P-02-32-NC-AL-77U-24D-15-K85 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: 1/8 inch Body Ported - Stainless Steel, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Fluorosilicone -60°C to +130°C, Solenoid: Ex d, Solenoid Approval: CSA/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Auto Reset, Power: 1.5 Watts, Cable Entry: 1/2 inch NPT, Port Type: NPT Ports, Identifier: No Identifier,
FP03P-02-32-NC-AL-77U-24D-15-K85 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: 1/8 inch Body Ported - Stainless Steel, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Fluorosilicone -60°C to +130°C, Solenoid: Ex d, Solenoid Approval: CSA/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Auto Reset, Power: 1.5 Watts, Cable Entry: 1/2 inch NPT, Port Type: NPT Ports, Identifier: No Identifier,
FP03P-02-32-NC-AL-78A-370-K85 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: 1/8 inch Body Ported - Stainless Steel, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Fluorosilicone -60°C to +130°C, Solenoid: Ex ia, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 370 Ohms, Options: Auto Reset, Power: N/A - Intrinsically Safe, Cable Entry: 1/2 inch NPT, Port Type: NPT Ports, Identifier: No Identifier,
FP03P-02-32-NC-AL-78A-370-K85 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: 1/8 inch Body Ported - Stainless Steel, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Fluorosilicone -60°C to +130°C, Solenoid: Ex ia, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 370 Ohms, Options: Auto Reset, Power: N/A - Intrinsically Safe, Cable Entry: 1/2 inch NPT, Port Type: NPT Ports, Identifier: No Identifier,
FP03P-02-32-NC-AL-78A-370-M - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: 1/8 inch Body Ported - Stainless Steel, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Fluorosilicone -60°C to +130°C, Solenoid: Ex ia, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 370 Ohms, Options: Electrical to switch or temporary manual override, Power: N/A - Intrinsically Safe, Cable Entry: M20 x 1.5 Cable Entry, Port Type: NPT Ports, Identifier: No Identifier,
FP03P-02-32-NC-AL-78A-370-M - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: 1/8 inch Body Ported - Stainless Steel, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Fluorosilicone -60°C to +130°C, Solenoid: Ex ia, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 370 Ohms, Options: Electrical to switch or temporary manual override, Power: N/A - Intrinsically Safe, Cable Entry: M20 x 1.5 Cable Entry, Port Type: NPT Ports, Identifier: No Identifier,
FP03P-02-32-NC-AL-78A-370-ML-K85 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: 1/8 inch Body Ported - Stainless Steel, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Fluorosilicone -60°C to +130°C, Solenoid: Ex ia, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 370 Ohms, Options: Electrical and manual req'd to latch or temporary manual override, Power: N/A - Intrinsically Safe, Cable Entry: 1/2 inch NPT, Port Type: NPT Ports, Identifier: No Identifier,
FP03P-02-32-NC-AL-78A-370-ML-K85 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: 1/8 inch Body Ported - Stainless Steel, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Fluorosilicone -60°C to +130°C, Solenoid: Ex ia, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 370 Ohms, Options: Electrical and manual req'd to latch or temporary manual override, Power: N/A - Intrinsically Safe, Cable Entry: 1/2 inch NPT, Port Type: NPT Ports, Identifier: No Identifier,
FP03P-02-32-NC-AL-78G-370 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: 1/8 inch Body Ported - Stainless Steel, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Fluorosilicone -60°C to +130°C, Solenoid: Ex ia, Solenoid Approval: CU-TR/IECEx Dual Certified/Labelled, Voltage: 370 Ohms, Options: Auto Reset, Power: N/A - Intrinsically Safe, Cable Entry: M20 x 1.5 Cable Entry, Port Type: NPT Ports, Identifier: No Identifier,
FP03P-02-32-NC-AL-78G-370 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: 1/8 inch Body Ported - Stainless Steel, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Fluorosilicone -60°C to +130°C, Solenoid: Ex ia, Solenoid Approval: CU-TR/IECEx Dual Certified/Labelled, Voltage: 370 Ohms, Options: Auto Reset, Power: N/A - Intrinsically Safe, Cable Entry: M20 x 1.5 Cable Entry, Port Type: NPT Ports, Identifier: No Identifier,
FP03P-02-32-NC-V-77A-110A-ML-30-K85 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: 1/8 inch Body Ported - Stainless Steel, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 110VAC, Options: Electrical and manual req'd to latch or temporary manual override, Power: 3.0 Watts, Cable Entry: 1/2 inch NPT, Port Type: NPT Ports, Identifier: No Identifier,
FP03P-02-32-NC-V-77A-110A-ML-30-K85 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: 1/8 inch Body Ported - Stainless Steel, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 110VAC, Options: Electrical and manual req'd to latch or temporary manual override, Power: 3.0 Watts, Cable Entry: 1/2 inch NPT, Port Type: NPT Ports, Identifier: No Identifier,
FP03P-02-32-NC-V-77A-220A-30 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: 1/8 inch Body Ported - Stainless Steel, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 220VAC, Options: Auto Reset, Power: 3.0 Watts, Cable Entry: M20 x 1.5 Cable Entry, Port Type: NPT Ports, Identifier: No Identifier,
FP03P-02-32-NC-V-77A-220A-30 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: 1/8 inch Body Ported - Stainless Steel, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 220VAC, Options: Auto Reset, Power: 3.0 Watts, Cable Entry: M20 x 1.5 Cable Entry, Port Type: NPT Ports, Identifier: No Identifier,
FP03P-02-32-NC-V-77A-24D-08-K85 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: 1/8" Body Ported - Stainless Steel, Valve Configuration: 3-way, 2-position, Valve Configuration: Normally Closed, O-ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Auto Reset, Power: 0.8 Watts, Cable Entry: 1/2" NPT, Port Type: NPT Ports, Identifier: No Identifier, Housing: Rotating Housing
FP03P-02-32-NC-V-77A-24D-08-K85 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: 1/8" Body Ported - Stainless Steel, Valve Configuration: 3-way, 2-position, Valve Configuration: Normally Closed, O-ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Auto Reset, Power: 0.8 Watts, Cable Entry: 1/2" NPT, Port Type: NPT Ports, Identifier: No Identifier, Housing: Rotating Housing
FP03P-02-32-NC-V-77A-24D-15 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: 1/8 inch Body Ported - Stainless Steel, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Auto Reset, Power: 1.5 Watts, Cable Entry: M20 x 1.5 Cable Entry, Port Type: NPT Ports, Identifier: No Identifier,
FP03P-02-32-NC-V-77A-24D-15 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: 1/8 inch Body Ported - Stainless Steel, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Auto Reset, Power: 1.5 Watts, Cable Entry: M20 x 1.5 Cable Entry, Port Type: NPT Ports, Identifier: No Identifier,
FP03P-02-32-NC-V-77A-24D-15-K85 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: 1/8 inch Body Ported - Stainless Steel, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Auto Reset, Power: 1.5 Watts, Cable Entry: 1/2 inch NPT, Port Type: NPT Ports, Identifier: No Identifier,
FP03P-02-32-NC-V-77A-24D-30 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: 1/8 inch Body Ported - Stainless Steel, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Auto Reset, Power: 3.0 Watts, Cable Entry: M20 x 1.5 Cable Entry, Port Type: NPT Ports, Identifier: No Identifier,
FP03P-02-32-NC-V-77A-24D-30 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: 1/8 inch Body Ported - Stainless Steel, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Auto Reset, Power: 3.0 Watts, Cable Entry: M20 x 1.5 Cable Entry, Port Type: NPT Ports, Identifier: No Identifier,
FP03P-02-32-NC-V-77A-24D-30-K85 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: 1/8 inch Body Ported - Stainless Steel, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Auto Reset, Power: 3.0 Watts, Cable Entry: 1/2 inch NPT, Port Type: NPT Ports, Identifier: No Identifier,
FP03P-02-32-NC-V-77A-24D-M-15 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: 1/8 inch Body Ported - Stainless Steel, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Electrical to switch or temporary manual override, Power: 1.5 Watts, Cable Entry: M20 x 1.5 Cable Entry, Port Type: NPT Ports, Identifier: No Identifier,
FP03P-02-32-NC-V-77A-24D-M-15 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: 1/8 inch Body Ported - Stainless Steel, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Electrical to switch or temporary manual override, Power: 1.5 Watts, Cable Entry: M20 x 1.5 Cable Entry, Port Type: NPT Ports, Identifier: No Identifier,
FP03P-02-32-NC-V-77A-24D-M-15-H2S - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: 1/8 inch Body Ported - Stainless Steel, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Electrical to switch or temporary manual override, Power: 1.5 Watts, Cable Entry: M20 x 1.5 Cable Entry, Port Type: NPT Ports, Identifier: No Identifier,
FP03P-02-32-NC-V-77A-24D-M-15-H2S - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: 1/8 inch Body Ported - Stainless Steel, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Electrical to switch or temporary manual override, Power: 1.5 Watts, Cable Entry: M20 x 1.5 Cable Entry, Port Type: NPT Ports, Identifier: No Identifier,
FP03P-02-32-NC-V-77A-24D-M-30 -Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: 1/8 inch Body Ported - Stainless Steel, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Electrical to switch or temporary manual override, Power: 3.0 Watts, Cable Entry: M20 x 1.5 Cable Entry, Port Type: NPT Ports, Identifier: No Identifier,
FP03P-02-32-NC-V-77A-24D-M-30 -Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: 1/8 inch Body Ported - Stainless Steel, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Electrical to switch or temporary manual override, Power: 3.0 Watts, Cable Entry: M20 x 1.5 Cable Entry, Port Type: NPT Ports, Identifier: No Identifier,
FP03P-02-32-NC-V-77A-24D-ML-15 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: 1/8 inch Body Ported - Stainless Steel, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Electrical and manual req'd to latch or temporary manual override, Power: 1.5 Watts, Cable Entry: M20 x 1.5 Cable Entry, Port Type: NPT Ports, Identifier: No Identifier,
FP03P-02-32-NC-V-77A-24D-ML-15 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: 1/8 inch Body Ported - Stainless Steel, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Electrical and manual req'd to latch or temporary manual override, Power: 1.5 Watts, Cable Entry: M20 x 1.5 Cable Entry, Port Type: NPT Ports, Identifier: No Identifier,
FP03P-02-32-NC-V-77G-24D-ML-30 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: 1/8 inch Body Ported - Stainless Steel, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: CU-TR/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Electrical and manual req'd to latch or temporary manual override, Power: 3.0 Watts, Cable Entry: M20 x 1.5 Cable Entry, Port Type: NPT Ports, Identifier: No Identifier,
FP03P-02-32-NC-V-77G-24D-ML-30 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: 1/8 inch Body Ported - Stainless Steel, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: CU-TR/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Electrical and manual req'd to latch or temporary manual override, Power: 3.0 Watts, Cable Entry: M20 x 1.5 Cable Entry, Port Type: NPT Ports, Identifier: No Identifier,
FP03P-02-32-NC-V-77I-24D-15 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: 1/8 inch Body Ported - Stainless Steel, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: INMETRO/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Auto Reset, Power: 1.5 Watts, Cable Entry: M20 x 1.5 Cable Entry, Port Type: NPT Ports, Identifier: No Identifier,
FP03P-02-32-NC-V-77I-24D-15 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: 1/8 inch Body Ported - Stainless Steel, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: INMETRO/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Auto Reset, Power: 1.5 Watts, Cable Entry: M20 x 1.5 Cable Entry, Port Type: NPT Ports, Identifier: No Identifier,
FP03P-02-32-NC-V-77I-24D-30-K85 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: 1/8 inch Body Ported - Stainless Steel, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: INMETRO/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Auto Reset, Power: 3.0 Watts, Cable Entry: 1/2 inch NPT, Port Type: NPT Ports, Identifier: No Identifier,
FP03P-02-32-NC-V-77I-24D-30-K85 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: 1/8 inch Body Ported - Stainless Steel, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: INMETRO/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Auto Reset, Power: 3.0 Watts, Cable Entry: 1/2 inch NPT, Port Type: NPT Ports, Identifier: No Identifier,
FP03P-02-32-NC-V-77U-24D-M-15 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: 1/8 inch Body Ported - Stainless Steel, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: CSA/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Electrical to switch or temporary manual override, Power: 1.5 Watts, Cable Entry: M20 x 1.5 Cable Entry, Port Type: NPT Ports, Identifier: No Identifier,
FP03P-02-32-NC-V-77U-24D-M-15 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: 1/8 inch Body Ported - Stainless Steel, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: CSA/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Electrical to switch or temporary manual override, Power: 1.5 Watts, Cable Entry: M20 x 1.5 Cable Entry, Port Type: NPT Ports, Identifier: No Identifier,
FP03P-02-32-NC-V-78A-370 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: 1/8 inch Body Ported - Stainless Steel, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex ia, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 370 Ohms, Options: Auto Reset, Power: N/A - Intrinsically Safe, Cable Entry: M20 x 1.5 Cable Entry, Port Type: NPT Ports, Identifier: No Identifier,
FP03P-02-32-NC-V-78A-370 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: 1/8 inch Body Ported - Stainless Steel, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex ia, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 370 Ohms, Options: Auto Reset, Power: N/A - Intrinsically Safe, Cable Entry: M20 x 1.5 Cable Entry, Port Type: NPT Ports, Identifier: No Identifier,
FP03P-02-32-NC-V-78A-370-K85 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: 1/8 inch Body Ported - Stainless Steel, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex ia, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 370 Ohms, Options: Auto Reset, Power: N/A - Intrinsically Safe, Cable Entry: 1/2 inch NPT, Port Type: NPT Ports, Identifier: No Identifier,
FP03P-02-32-NC-V-78A-370-K85 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: 1/8 inch Body Ported - Stainless Steel, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex ia, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 370 Ohms, Options: Auto Reset, Power: N/A - Intrinsically Safe, Cable Entry: 1/2 inch NPT, Port Type: NPT Ports, Identifier: No Identifier,
FP03P-02-32-NC-V-78A-370-M - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: 1/8 inch Body Ported - Stainless Steel, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex ia, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 370 Ohms, Options: Electrical to switch or temporary manual override, Power: N/A - Intrinsically Safe, Cable Entry: M20 x 1.5 Cable Entry, Port Type: NPT Ports, Identifier: No Identifier,
FP03P-02-32-NC-V-78A-370-M - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: 1/8 inch Body Ported - Stainless Steel, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex ia, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 370 Ohms, Options: Electrical to switch or temporary manual override, Power: N/A - Intrinsically Safe, Cable Entry: M20 x 1.5 Cable Entry, Port Type: NPT Ports, Identifier: No Identifier,
FP03P-02-32-NC-V-78A-370-ML - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: 1/8 inch Body Ported - Stainless Steel, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex ia, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 370 Ohms, Options: Electrical and manual req'd to latch or temporary manual override, Power: N/A - Intrinsically Safe, Cable Entry: M20 x 1.5 Cable Entry, Port Type: NPT Ports, Identifier: No Identifier,
FP03P-02-32-NC-V-78A-370-ML - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: 1/8 inch Body Ported - Stainless Steel, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex ia, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 370 Ohms, Options: Electrical and manual req'd to latch or temporary manual override, Power: N/A - Intrinsically Safe, Cable Entry: M20 x 1.5 Cable Entry, Port Type: NPT Ports, Identifier: No Identifier,
FP03P-04-32-NC-AL-78A-370-K85 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: 1/4 inch Body Ported - Stainless Steel, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Fluorosilicone -60°C to +130°C, Solenoid: Ex ia, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 370 Ohms, Options: Auto Reset, Power: N/A - Intrinsically Safe, Cable Entry: 1/2 inch NPT, Port Type: NPT Ports, Identifier: No Identifier,
FP03P-04-32-NC-AL-78A-370-K85 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: 1/4 inch Body Ported - Stainless Steel, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Fluorosilicone -60°C to +130°C, Solenoid: Ex ia, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 370 Ohms, Options: Auto Reset, Power: N/A - Intrinsically Safe, Cable Entry: 1/2 inch NPT, Port Type: NPT Ports, Identifier: No Identifier,
FP03P-04-32-NC-AL-78G-370 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: 1/4 inch Body Ported - Stainless Steel, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Fluorosilicone -60°C to +130°C, Solenoid: Ex ia, Solenoid Approval: CU-TR/IECEx Dual Certified/Labelled, Voltage: 370 Ohms, Options: Auto Reset, Power: N/A - Intrinsically Safe, Cable Entry: M20 x 1.5 Cable Entry, Port Type: NPT Ports, Identifier: No Identifier,
FP03P-04-32-NC-AL-78G-370 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: 1/4 inch Body Ported - Stainless Steel, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Fluorosilicone -60°C to +130°C, Solenoid: Ex ia, Solenoid Approval: CU-TR/IECEx Dual Certified/Labelled, Voltage: 370 Ohms, Options: Auto Reset, Power: N/A - Intrinsically Safe, Cable Entry: M20 x 1.5 Cable Entry, Port Type: NPT Ports, Identifier: No Identifier,
FP03P-04-32-NC-SA-78A-370-K85 - Model Code: Direct Acting Solenoid Valve, Operator: Solenoid, 145 psi / 10 bar Maximum Valve Pressure, Connections: ¼ Body Ported - Stainless Steel, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Universal, O-Ring Material: Low Temp Nitrile -25°C to +130°C, Solenoid: Ex ia, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 135 Ohms, Options: Auto Reset, Power: N/A - Intrinsically Safe, Cable Entry: 1/2 NPT, Port Type: NPT Ports, Identifier: No Identifier, Spares: None,
FP03P-04-32-NC-SA-78A-370-K85 - Model Code: Direct Acting Solenoid Valve, Operator: Solenoid, 145 psi / 10 bar Maximum Valve Pressure, Connections: ¼ Body Ported - Stainless Steel, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Universal, O-Ring Material: Low Temp Nitrile -25°C to +130°C, Solenoid: Ex ia, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 135 Ohms, Options: Auto Reset, Power: N/A - Intrinsically Safe, Cable Entry: 1/2 NPT, Port Type: NPT Ports, Identifier: No Identifier, Spares: None,
FP03P-04-32-NC-V-77A-24D-15-K85 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: 1/4 inch Body Ported - Stainless Steel, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Auto Reset, Power: 1.5 Watts, Cable Entry: 1/2 inch NPT, Port Type: NPT Ports, Identifier: No Identifier,
FP03P-04-32-NC-V-78A-370 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: 1/4 inch Body Ported - Stainless Steel, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex ia, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 370 Ohms, Options: Auto Reset, Power: N/A - Intrinsically Safe, Cable Entry: M20 x 1.5 Cable Entry, Port Type: NPT Ports, Identifier: No Identifier,
FP03P-04-32-NC-V-78A-370 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: 1/4 inch Body Ported - Stainless Steel, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex ia, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 370 Ohms, Options: Auto Reset, Power: N/A - Intrinsically Safe, Cable Entry: M20 x 1.5 Cable Entry, Port Type: NPT Ports, Identifier: No Identifier,
FP03P-04-32-NC-V-78A-370-K85 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: 1/4 inch Body Ported - Stainless Steel, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex ia, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 370 Ohms, Options: Auto Reset, Power: N/A - Intrinsically Safe, Cable Entry: 1/2 inch NPT, Port Type: NPT Ports, Identifier: No Identifier,
FP03P-04-32-NC-V-78A-370-K85 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: 1/4 inch Body Ported - Stainless Steel, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex ia, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 370 Ohms, Options: Auto Reset, Power: N/A - Intrinsically Safe, Cable Entry: 1/2 inch NPT, Port Type: NPT Ports, Identifier: No Identifier,
FP03P-04-32-NC-V-78A-370-ML - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: 1/4 inch Body Ported - Stainless Steel, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex ia, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 370 Ohms, Options: Electrical and manual req'd to latch or temporary manual override, Power: N/A - Intrinsically Safe, Cable Entry: M20 x 1.5 Cable Entry, Port Type: NPT Ports, Identifier: No Identifier,
FP03P-04-32-NC-V-78A-370-ML - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: 1/4 inch Body Ported - Stainless Steel, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex ia, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 370 Ohms, Options: Electrical and manual req'd to latch or temporary manual override, Power: N/A - Intrinsically Safe, Cable Entry: M20 x 1.5 Cable Entry, Port Type: NPT Ports, Identifier: No Identifier,
FP03P-M1-32-NC-AL-28A-370-M - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount - Axis Manifold System Only, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Fluorosilicone -60°C to +130°C, Solenoid: Ex ia Aluminium Housing, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 370 Ohms, Options: Electrical to switch or temporary manual override, Power: N/A - Intrinsically Safe, Cable Entry: M20 x 1.5 Cable Entry, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M1-32-NC-AL-28A-370-M - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount - Axis Manifold System Only, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Fluorosilicone -60°C to +130°C, Solenoid: Ex ia Aluminium Housing, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 370 Ohms, Options: Electrical to switch or temporary manual override, Power: N/A - Intrinsically Safe, Cable Entry: M20 x 1.5 Cable Entry, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M1-32-NC-AL-77G-24D-M-30 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount - Axis Manifold System Only, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Fluorosilicone -60°C to +130°C, Solenoid: Ex d, Solenoid Approval: CU-TR/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Electrical to switch or temporary manual override, Power: 3.0 Watts, Cable Entry: M20 x 1.5 Cable Entry, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M1-32-NC-AL-77G-24D-M-30 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount - Axis Manifold System Only, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Fluorosilicone -60°C to +130°C, Solenoid: Ex d, Solenoid Approval: CU-TR/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Electrical to switch or temporary manual override, Power: 3.0 Watts, Cable Entry: M20 x 1.5 Cable Entry, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M1-32-NC-AL-78G-370-K85 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount - Axis Manifold System Only, Valve Configuration: 3-way, 2-position, Valve Configuration: Normally Closed, O-ring Material: Fluorosilicone -60°C to +130°C, Solenoid: Ex ia, Solenoid Approval: CU-TR/IECEx Dual Certified/Labelled, Voltage: 370 Ohms, Options: Auto Reset, Power: N/A - Intrinsically Safe, Cable Entry: 1/2" NPT, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M1-32-NC-AL-78G-370-K85 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount - Axis Manifold System Only, Valve Configuration: 3-way, 2-position, Valve Configuration: Normally Closed, O-ring Material: Fluorosilicone -60°C to +130°C, Solenoid: Ex ia, Solenoid Approval: CU-TR/IECEx Dual Certified/Labelled, Voltage: 370 Ohms, Options: Auto Reset, Power: N/A - Intrinsically Safe, Cable Entry: 1/2" NPT, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M1-32-NC-V-74AT4-24D-36 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount - Axis Manifold System Only, Valve Configuration: 3-way, 2-position, Valve Configuration: Normally Closed, O-ring Material: Viton -20°C to +90°C, Solenoid: Ex emb, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Auto Reset, Power: 3.6 Watts, Cable Entry: M20 x 1.5 Cable Entry, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M1-32-NC-V-74AT4-24D-36 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount - Axis Manifold System Only, Valve Configuration: 3-way, 2-position, Valve Configuration: Normally Closed, O-ring Material: Viton -20°C to +90°C, Solenoid: Ex emb, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Auto Reset, Power: 3.6 Watts, Cable Entry: M20 x 1.5 Cable Entry, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M1-32-NC-V-74AT4-24D-36-K85 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount - Axis Manifold System Only, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex emb, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Auto Reset, Power: 3.6 Watts, Cable Entry: 1/2 inch NPT, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M1-32-NC-V-74AT4-24D-36-K85 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount - Axis Manifold System Only, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex emb, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Auto Reset, Power: 3.6 Watts, Cable Entry: 1/2 inch NPT, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M1-32-NC-V-77A-220D-ML-30 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount - Axis Manifold System Only, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 220VDC, Options: Electrical and manual req'd to latch or temporary manual override, Power: 3.0 Watts, Cable Entry: M20 x 1.5 Cable Entry, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M1-32-NC-V-77A-220D-ML-30 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount - Axis Manifold System Only, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 220VDC, Options: Electrical and manual req'd to latch or temporary manual override, Power: 3.0 Watts, Cable Entry: M20 x 1.5 Cable Entry, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M1-32-NC-V-77A-24D-30 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount - Axis Manifold System Only, Valve Configuration: 3-way, 2-position, Valve Configuration: Normally Closed, O-ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Auto Reset, Power: 3.0 Watts, Cable Entry: M20 x 1.5 Cable Entry, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M1-32-NC-V-77A-24D-30 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount - Axis Manifold System Only, Valve Configuration: 3-way, 2-position, Valve Configuration: Normally Closed, O-ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Auto Reset, Power: 3.0 Watts, Cable Entry: M20 x 1.5 Cable Entry, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M1-32-NC-V-77A-24D-M-30 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount - Axis Manifold System Only, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Electrical to switch or temporary manual override, Power: 3.0 Watts, Cable Entry: M20 x 1.5 Cable Entry, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M1-32-NC-V-77A-24D-M-30 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount - Axis Manifold System Only, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Electrical to switch or temporary manual override, Power: 3.0 Watts, Cable Entry: M20 x 1.5 Cable Entry, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M1-32-NC-V-77A-24D-ML-30 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount - Axis Manifold System Only, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Electrical and manual req'd to latch or temporary manual override, Power: 3.0 Watts, Cable Entry: M20 x 1.5 Cable Entry, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M1-32-NC-V-77A-24D-ML-30 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount - Axis Manifold System Only, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Electrical and manual req'd to latch or temporary manual override, Power: 3.0 Watts, Cable Entry: M20 x 1.5 Cable Entry, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M1-32-NC-V-77U-24D-ML-30-K85 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount - Axis Manifold System Only, Valve Configuration: 3-way, 2-position, Valve Configuration: Normally Closed, O-ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: CSA/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Electrical and manual req'd to latch or temporary manual override, Power: 3.0 Watts, Cable Entry: 1/2" NPT, Port Type: Manifold Mount, Identifier: No Identifier, Housing: Rotating Housing
FP03P-M1-32-NC-V-77U-24D-ML-30-K85 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount - Axis Manifold System Only, Valve Configuration: 3-way, 2-position, Valve Configuration: Normally Closed, O-ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: CSA/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Electrical and manual req'd to latch or temporary manual override, Power: 3.0 Watts, Cable Entry: 1/2" NPT, Port Type: Manifold Mount, Identifier: No Identifier, Housing: Rotating Housing
FP03P-M1-32-NC-V-78A-370 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount - Axis Manifold System Only, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex ia, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 370 Ohms, Options: Auto Reset, Power: N/A - Intrinsically Safe, Cable Entry: M20 x 1.5 Cable Entry, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M1-32-NC-V-78A-370 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount - Axis Manifold System Only, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex ia, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 370 Ohms, Options: Auto Reset, Power: N/A - Intrinsically Safe, Cable Entry: M20 x 1.5 Cable Entry, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M1-32-NC-V-78A-370-K85 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount - Axis Manifold System Only, Valve Configuration: 3-way, 2-position, Valve Configuration: Normally Closed, O-ring Material: Viton -20°C to +90°C, Solenoid: Ex ia, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 370 Ohms, Options: Auto Reset, Power: N/A - Intrinsically Safe, Cable Entry: 1/2" NPT, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M1-32-NC-V-78A-370-K85 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount - Axis Manifold System Only, Valve Configuration: 3-way, 2-position, Valve Configuration: Normally Closed, O-ring Material: Viton -20°C to +90°C, Solenoid: Ex ia, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 370 Ohms, Options: Auto Reset, Power: N/A - Intrinsically Safe, Cable Entry: 1/2" NPT, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M1-32-NC-V-78A-370-M - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount - Axis Manifold System Only, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex ia, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 370 Ohms, Options: Electrical to switch or temporary manual override, Power: N/A - Intrinsically Safe, Cable Entry: M20 x 1.5 Cable Entry, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M1-32-NC-V-78A-370-M - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount - Axis Manifold System Only, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex ia, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 370 Ohms, Options: Electrical to switch or temporary manual override, Power: N/A - Intrinsically Safe, Cable Entry: M20 x 1.5 Cable Entry, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M1-32-NC-V-78A-370-ML - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount - Axis Manifold System Only, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex ia, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 370 Ohms, Options: Electrical and manual req'd to latch or temporary manual override, Power: N/A - Intrinsically Safe, Cable Entry: M20 x 1.5 Cable Entry, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M1-32-NC-V-78A-370-ML - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount - Axis Manifold System Only, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex ia, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 370 Ohms, Options: Electrical and manual req'd to latch or temporary manual override, Power: N/A - Intrinsically Safe, Cable Entry: M20 x 1.5 Cable Entry, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M7-32-NC-AL-77G-24D-30 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount Stacker - Axis Manifold System Only, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Fluorosilicone -60°C to +130°C, Solenoid: Ex d, Solenoid Approval: CU-TR/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Auto Reset, Power: 3.0 Watts, Cable Entry: M20 x 1.5 Cable Entry, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M7-32-NC-AL-77G-24D-30 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount Stacker - Axis Manifold System Only, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Fluorosilicone -60°C to +130°C, Solenoid: Ex d, Solenoid Approval: CU-TR/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Auto Reset, Power: 3.0 Watts, Cable Entry: M20 x 1.5 Cable Entry, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M7-32-NC-AL-77G-24D-30-K85 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount Stacker - Axis Manifold System Only, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Fluorosilicone -60°C to +130°C, Solenoid: Ex d, Solenoid Approval: CU-TR/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Auto Reset, Power: 3.0 Watts, Cable Entry: 1/2 inch NPT, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M7-32-NC-AL-77G-24D-30-K85 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount Stacker - Axis Manifold System Only, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Fluorosilicone -60°C to +130°C, Solenoid: Ex d, Solenoid Approval: CU-TR/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Auto Reset, Power: 3.0 Watts, Cable Entry: 1/2 inch NPT, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M7-32-NC-AL-78A-370 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount Stacker - Axis Manifold System Only, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Fluorosilicone -60°C to +130°C, Solenoid: Ex ia, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 370 Ohms, Options: Auto Reset, Power: N/A - Intrinsically Safe, Cable Entry: M20 x 1.5 Cable Entry, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M7-32-NC-AL-78A-370 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount Stacker - Axis Manifold System Only, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Fluorosilicone -60°C to +130°C, Solenoid: Ex ia, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 370 Ohms, Options: Auto Reset, Power: N/A - Intrinsically Safe, Cable Entry: M20 x 1.5 Cable Entry, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M7-32-NC-AL-78A-370-ML - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount Stacker - Axis Manifold System Only, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Fluorosilicone -60°C to +130°C, Solenoid: Ex ia, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 370 Ohms, Options: Electrical and manual req'd to latch or temporary manual override, Power: N/A - Intrinsically Safe, Cable Entry: M20 x 1.5 Cable Entry, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M7-32-NC-AL-78A-370-ML - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount Stacker - Axis Manifold System Only, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Fluorosilicone -60°C to +130°C, Solenoid: Ex ia, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 370 Ohms, Options: Electrical and manual req'd to latch or temporary manual override, Power: N/A - Intrinsically Safe, Cable Entry: M20 x 1.5 Cable Entry, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M7-32-NC-V-77A-125D-30 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount Stacker - Axis Manifold System Only, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 125VDC, Options: Auto Reset, Power: 3.0 Watts, Cable Entry: M20 x 1.5 Cable Entry, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M7-32-NC-V-77A-125D-30 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount Stacker - Axis Manifold System Only, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 125VDC, Options: Auto Reset, Power: 3.0 Watts, Cable Entry: M20 x 1.5 Cable Entry, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M7-32-NC-V-77A-24D-08 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount Stacker - Axis Manifold System Only, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Auto Reset, Power: 0.8 Watts, Cable Entry: M20 x 1.5 Cable Entry, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M7-32-NC-V-77A-24D-08 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount Stacker - Axis Manifold System Only, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Auto Reset, Power: 0.8 Watts, Cable Entry: M20 x 1.5 Cable Entry, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M7-32-NC-V-77A-24D-15 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount Stacker - Axis Manifold System Only, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Auto Reset, Power: 1.5 Watts, Cable Entry: M20 x 1.5 Cable Entry, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M7-32-NC-V-77A-24D-15 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount Stacker - Axis Manifold System Only, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Auto Reset, Power: 1.5 Watts, Cable Entry: M20 x 1.5 Cable Entry, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M7-32-NC-V-77A-24D-30 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount Stacker - Axis Manifold System Only, Valve Configuration: 3-way, 2-position, Valve Configuration: Normally Closed, O-ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Auto Reset, Power: 3.0 Watts, Cable Entry: M20 x 1.5 Cable Entry, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M7-32-NC-V-77A-24D-30 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount Stacker - Axis Manifold System Only, Valve Configuration: 3-way, 2-position, Valve Configuration: Normally Closed, O-ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Auto Reset, Power: 3.0 Watts, Cable Entry: M20 x 1.5 Cable Entry, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M7-32-NC-V-77A-24D-30-K85 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount Stacker - Axis Manifold System Only, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Auto Reset, Power: 3.0 Watts, Cable Entry: 1/2 inch NPT, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M7-32-NC-V-77A-24D-30-K85 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount Stacker - Axis Manifold System Only, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Auto Reset, Power: 3.0 Watts, Cable Entry: 1/2 inch NPT, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M7-32-NC-V-77A-24D-M-30-K85 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount Stacker - Axis Manifold System Only, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Electrical to switch or temporary manual override, Power: 3.0 Watts, Cable Entry: 1/2 inch NPT, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M7-32-NC-V-77A-24D-M-30-K85 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount Stacker - Axis Manifold System Only, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Electrical to switch or temporary manual override, Power: 3.0 Watts, Cable Entry: 1/2 inch NPT, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M7-32-NC-V-77A-24D-ML-15 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount Stacker - Axis Manifold System Only, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Electrical and manual req'd to latch or temporary manual override, Power: 1.5 Watts, Cable Entry: M20 x 1.5 Cable Entry, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M7-32-NC-V-77A-24D-ML-15 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount Stacker - Axis Manifold System Only, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Electrical and manual req'd to latch or temporary manual override, Power: 1.5 Watts, Cable Entry: M20 x 1.5 Cable Entry, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M7-32-NC-V-77A-24D-ML-30 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount Stacker - Axis Manifold System Only, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Electrical and manual req'd to latch or temporary manual override, Power: 3.0 Watts, Cable Entry: M20 x 1.5 Cable Entry, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M7-32-NC-V-77A-24D-ML-30 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount Stacker - Axis Manifold System Only, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Electrical and manual req'd to latch or temporary manual override, Power: 3.0 Watts, Cable Entry: M20 x 1.5 Cable Entry, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M7-32-NC-V-77A-24D-MLT-57 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount Stacker - Axis Manifold System Only, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Electrical and manual req'd to latch - tamperproof, Power: 5.7 Watts, Cable Entry: M20 x 1.5 Cable Entry, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M7-32-NC-V-77A-24D-MLT-57 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount Stacker - Axis Manifold System Only, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Electrical and manual req'd to latch - tamperproof, Power: 5.7 Watts, Cable Entry: M20 x 1.5 Cable Entry, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M7-32-NC-V-77A-48D-30 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount Stacker - Axis Manifold System Only, Valve Configuration: 3-way, 2-position, Valve Configuration: Normally Closed, O-ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 48VDC, Options: Auto Reset, Power: 3.0 Watts, Cable Entry: M20 x 1.5 Cable Entry, Port Type: Manifold Mount, Identifier: No Identifier, Housing: Rotating Housing,
FP03P-M7-32-NC-V-77A-48D-30 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount Stacker - Axis Manifold System Only, Valve Configuration: 3-way, 2-position, Valve Configuration: Normally Closed, O-ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 48VDC, Options: Auto Reset, Power: 3.0 Watts, Cable Entry: M20 x 1.5 Cable Entry, Port Type: Manifold Mount, Identifier: No Identifier, Housing: Rotating Housing,
FP03P-M7-32-NC-V-77U-24D-08-K85 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount Stacker - Axis Manifold System Only, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: CSA/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Auto Reset, Power: 0.8 Watts, Cable Entry: 1/2 inch NPT, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M7-32-NC-V-77U-24D-08-K85 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount Stacker - Axis Manifold System Only, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: CSA/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Auto Reset, Power: 0.8 Watts, Cable Entry: 1/2 inch NPT, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M7-32-NC-V-77U-24D-30-K85 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount Stacker - Axis Manifold System Only, Valve Configuration: 3-way, 2-position, Valve Configuration: Normally Closed, O-ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: CSA/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Auto Reset, Power: 3.0 Watts, Cable Entry: 1/2" NPT, Port Type: Manifold Mount, Identifier: No Identifier, Housing: Rotating Housing,
FP03P-M7-32-NC-V-77U-24D-30-K85 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount Stacker - Axis Manifold System Only, Valve Configuration: 3-way, 2-position, Valve Configuration: Normally Closed, O-ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: CSA/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Auto Reset, Power: 3.0 Watts, Cable Entry: 1/2" NPT, Port Type: Manifold Mount, Identifier: No Identifier, Housing: Rotating Housing,
FP03P-M7-32-NC-V-78A-370 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount Stacker - Axis Manifold System Only, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex ia, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 370 Ohms, Options: Auto Reset, Power: N/A - Intrinsically Safe, Cable Entry: M20 x 1.5 Cable Entry, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M7-32-NC-V-78A-370 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount Stacker - Axis Manifold System Only, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex ia, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 370 Ohms, Options: Auto Reset, Power: N/A - Intrinsically Safe, Cable Entry: M20 x 1.5 Cable Entry, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M7-32-NC-V-78A-370-K85 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount Stacker - Axis Manifold System Only, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex ia, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 370 Ohms, Options: Auto Reset, Power: N/A - Intrinsically Safe, Cable Entry: 1/2 inch NPT, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M7-32-NC-V-78A-370-K85 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount Stacker - Axis Manifold System Only, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex ia, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 370 Ohms, Options: Auto Reset, Power: N/A - Intrinsically Safe, Cable Entry: 1/2 inch NPT, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M7-32-NC-V-78A-370-M-K85 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount Stacker - Axis Manifold System Only, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex ia, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 370 Ohms, Options: Electrical to switch or temporary manual override, Power: N/A - Intrinsically Safe, Cable Entry: 1/2 inch NPT, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M7-32-NC-V-78A-370-M-K85 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount Stacker - Axis Manifold System Only, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex ia, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 370 Ohms, Options: Electrical to switch or temporary manual override, Power: N/A - Intrinsically Safe, Cable Entry: 1/2 inch NPT, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M7-32-NC-V-78A-370-ML - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount Stacker - Axis Manifold System Only, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex ia, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 370 Ohms, Options: Electrical and manual req'd to latch or temporary manual override, Power: N/A - Intrinsically Safe, Cable Entry: M20 x 1.5 Cable Entry, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M7-32-NC-V-78A-370-ML - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount Stacker - Axis Manifold System Only, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex ia, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 370 Ohms, Options: Electrical and manual req'd to latch or temporary manual override, Power: N/A - Intrinsically Safe, Cable Entry: M20 x 1.5 Cable Entry, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M8-32-NC-AL-77G-24D-30 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Fluorosilicone -60°C to +130°C, Solenoid: Ex d, Solenoid Approval: CU-TR/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Auto Reset, Power: 3.0 Watts, Cable Entry: M20 x 1.5 Cable Entry, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M8-32-NC-AL-77G-24D-M-30 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Fluorosilicone -60°C to +130°C, Solenoid: Ex d, Solenoid Approval: CU-TR/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Electrical to switch or temporary manual override, Power: 3.0 Watts, Cable Entry: M20 x 1.5 Cable Entry, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M8-32-NC-AL-77G-24D-M-30 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Fluorosilicone -60°C to +130°C, Solenoid: Ex d, Solenoid Approval: CU-TR/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Electrical to switch or temporary manual override, Power: 3.0 Watts, Cable Entry: M20 x 1.5 Cable Entry, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M8-32-NC-V-77A-24D-08 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Auto Reset, Power: 0.8 Watts, Cable Entry: M20 x 1.5 Cable Entry, Port Type: Manifold Mount, Identifier: No Identifier,
FP03P-M8-32-NC-V-77A-24D-15 - Model Code: Direct Acting Solenoid Valve, Operator: 145 psi / 10 bar Maximum Valve Pressure, Connections: Manifold Mount, Valve Configuration: 3-way 2-position, Valve Configuration: Normally Closed, O-Ring Material: Viton -20°C to +90°C, Solenoid: Ex d, Solenoid Approval: ATEX/IECEx Dual Certified/Labelled, Voltage: 24VDC, Options: Auto Reset, Power: 1.5 Watts, Cable Entry: M20 x 1.5 Cable Entry, Port Type: Manifold Mount, Identifier: No Identifier,
Not sure which product you need?
Contact our technical sales advisors here.
Need a bespoke part?
Our team of engineers are fully equipped to provide bespoke system design and manufacture.
This process involves specifying, procuring, calibrating and maintaining instrumentation and control systems for industrial and commercial process control applications.
Call our technical sales team for advice
© Fine Controls (UK) Ltd 2026
This site uses cookies to monitor site performance and provide a more responsive and
personalised experience.
You must agree to our use of certain cookies.
For more information on how we use and manage cookies, please read our
Privacy Policy .
