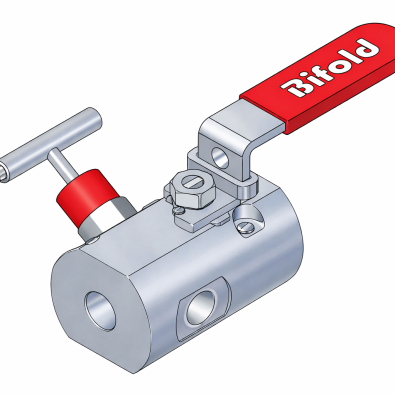

Bifold Model BV04 - Block & Bleed, Ball - Needle Manifold.
Download Specification

Model Number: BV04

Request a quote View Prices
  • Type: Block & Bleed / Ball-Needle manifold (instrumentation use)
  • Construction: Stainless steel (316L), forged/machined body
  • Operation: Manual, low torque, anti-blowout stem
  • Sealing: Bubble-tight, RTFE/Viton seals, non-rotating stem tip
  • Pressure Rating: High-pressure capable (up to ~10,000 psi / 690 bar)
  • Corrosion Resistance: Suitable for harsh/sour service (NACE MR-01-75)
  • Maintenance: Easy serviceability, full material traceability
  • Safety Features: Optional anti-tamper handles
  • Compliance: ISO 15156 / industry standards for instrumentation
BV0404F0210ERV6K
BV0404F0210ERV6K - Valve type; Single block & bleed, Ball/Needle, Nominal pipe size; 1/4", Connection type; Female, Material; UNS S31600/S31603 Stainless steel, Bore size; 10mm, Seat material; PEEK, Seal arrangement; RTFE/Viton elastomer (-20 degC to +180 degC), Pressure rating; 6,000psi (414bar) Maximum cold working pressure
Check availability Request a quote
BV0408F04F0210ERV6KLK
BV0408F04F0210ERV6KLK - Valve type; Single block & bleed, Ball/Needle, Nominal pipe size; 1/2", Connection type; Female, Vent connection; 1/4" NPT female, Material; UNS S31600/S31603 Stainless steel, Bore size; 10mm, Seat material; PEEK, Seal arrangement; RTFE/Viton elastomer (-20 degC to +180 degC), Pressure rating; 6,000psi (414bar) Maximum cold working pressure, Options; Lockable handle
Check availability Request a quote

Not sure which product you need?

Contact our technical sales advisors here.

Need a bespoke part?

Our team of engineers are fully equipped to provide bespoke system design and manufacture.
