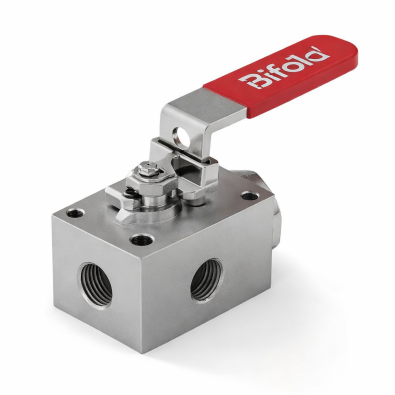

Bifold Model BV02 - 3 Way Ball Valve

Free UK Shipping over £100

Fast Shipping

Worldwide Shipping

Technical Sales Team

{"ga_data":{"item_list_id":736,"item_list_name":"Bifold Model BV02 - 3 Way Ball Valve BV02","items":[{"item_name":"Bifold Model BV02 - 3 Way Ball Valve - (BV02SL04F0210EH6KLK)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model BV02 - 3 Way Ball Valve - (BV02SL04F0210ERV10K)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model BV02 - 3 Way Ball Valve - (BV02SL04F0210ERV6K)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model BV02 - 3 Way Ball Valve - (BV02SL04F0210ERV6KLK)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model BV02 - 3 Way Ball Valve - (BV02SL04F0210ERV96KLK)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model BV02 - 3 Way Ball Valve - (BV02SL04F0211TT1KLK)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model BV02 - 3 Way Ball Valve - (BV02SL06FMP0210ERV10K)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model BV02 - 3 Way Ball Valve - (BV02SL08F0210ERV10K)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model BV02 - 3 Way Ball Valve - (BV02SL08F0210ERV6K)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model BV02 - 3 Way Ball Valve - (BV02SL08F0210ERV6KLK)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model BV02 - 3 Way Ball Valve - (BV02SL08F0210ERV96K)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model BV02 - 3 Way Ball Valve - (BV02SL08F0210ERV96KLK)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model BV02 - 3 Way Ball Valve - (BV02SL08F0212.5TT1KLK)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model BV02 - 3 Way Ball Valve - (BV02SL12F0215TT1KLK)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model BV02 - 3 Way Ball Valve - (BV02SL12F0220ERV6KLK)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model BV02 - 3 Way Ball Valve - (BV02SL16F0220TT1KLK)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model BV02 - 3 Way Ball Valve - (BV02ST04F0210ERV10K)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model BV02 - 3 Way Ball Valve - (BV02ST04F0210ERV6K)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model BV02 - 3 Way Ball Valve - (BV02ST08F0212.5TT1KLK)","price":"0.00","quantity":1,"item_brand":"Bifold"}]}}

Download Specification

Model Number: BV02

Request a quote View Prices

3‑way ball valve with L‑port or T‑port configuration for diverting or mixing flow.
Bubble‑tight shut‑off with 90° quarter‑turn operation.
High pressure rated up to 10,000 psi (690 bar) (model dependent).
Totally enclosed soft seats for positive sealing and low torque.
Pressure‑energised stem sealing and anti‑blowout stem for safety and integrity.
Precision machined stainless steel ball and corrosion‑resistant construction.
Lever handle as standard, optional locking tab available.
Compact, lightweight design suitable for panel or inline mounting.
Complies with NACE MR‑01‑75 / ISO 15156 corrosion standards.

Part Number

Description

Price

Quantity

BV02SL04F0210EH6KLK

BV02SL04F0210EH6KLK - Valve type: 3 Way Ball Valve, "L" type porting, Nominal pipe size; 1/4", Connection type; Female thread (NPT unless stated otherwise), Material; UNS S31600/S31603 Stainless steel, Bore size; 10mm, PEEK, Seal arrangement: RFTE (-100 degC to +225 degC), Pressure rating; 6000psi (414 bar) Maximum cold working pressure; lockable handle

Check availability Request a quote

BV02SL04F0210ERV10K

BV02SL04F0210ERV10K - Valve type: 3 way Ball Valve, Nominal pipe size; 1/4", Connection type; Female thread (NPT unless stated otherwise), Material; UNS S31600/S31603 Stainless steel, Bore size; 10mm, Seat material; PEEK, Seal arrangement; RTFE/Viton Elastomer (-20 degC to +180 decC), Pressure rating; 10000psi (690 bar) Maximum cold working pressure

Check availability Request a quote

BV02SL04F0210ERV6K

BV02SL04F0210ERV6K - Valve type: 3 Way Ball Valve, "L" type port, Nominal pipe size; 1/4", Connection type; Female thread (NPT unless stated otherwise), Material; UNS S31600/S31603 Stainless steel, Bore size; 10mm, Seat material; PEEK, Seal arrangement; RTFE/Viton Elastomer (-20 degC to +180 decC), Pressure rating; 3000psi (207 bar) Maximum cold working pressure, Panel mount.

Check availability Request a quote

BV02SL04F0210ERV6KLK

BV02SL04F0210ERV6KLK - Valve type: 3 Way Ball Valve, SL pattern type, Nominal pipe size; 1/4", Connection type; Female thread (NPT unless stated otherwise), Material; UNS S31600/S31603 Stainless steel, Bore size; 10mm, Seat material; PEEK, Seal arrangement; RTFE/Viton Elastomer (-20 degC to +180 decC), Pressure rating; 6000psi (414 bar) Maximum cold working pressure, Options; Lockable handle, Panel mount as standard.

Check availability Request a quote

BV02SL04F0210ERV96KLK

BV02SL04F0210ERV96KLK - Valve type: 3 Way Ball Valve, "L" type porting, Nominal pipe size; 1/4", Connection type; Female thread (NPT unless stated otherwise), Material; UNS S31600/S31603 Stainless steel, Bore size; 10mm, Seat material; PEEK, Seal arrangement; RTFE/V91A Elastomer, -46C operation, Pressure rating; 6000psi (414 bar) Maximum cold working pressure, lockable handle

Check availability Request a quote

BV02SL04F0211TT1KLK

BV02SL04F0211TT1KLK - Valve type: 3 Way "L" port Ball Valve, Nominal pipe size; 1/4", Connection type; Female thread (NPT unless stated otherwise), Material; UNS S31600/S31603 Stainless steel, Bore size; 11mm, Seat material; PTFE, Seal arrangement; PTFE, Pressure rating; 1000psi (70bar) Maximum cold working pressure, Lockable handle

Check availability Request a quote

BV02SL06FMP0210ERV10K

BV02SL06FMP0210ERV10K - Valve type: 3 Way Ball Valve, Nominal pipe size; 3/8", Connection type; Female thread (NPT unless stated otherwise), MP Thread, Material; UNS S31600/S31603 Stainless steel, Bore size; 10mm, Seat material; PEEK, Seal arrangement; RTFE/Viton Elastomer (-20 degC to +180 decC), Pressure rating; 10000psi (690 bar) Maximum cold working pressure

Check availability Request a quote

BV02SL08F0210ERV10K

BV02SL08F0210ERV10K - Valve type: 3 Way Ball Valve, "L" type port, Nominal pipe size; 1/2", Connection type; Female thread (NPT unless stated otherwise), Material; UNS S31600/S31603 Stainless steel, Bore size; 10mm, Seat material; PEEK, Seal arrangement; RTFE/Viton Elastomer (-20 degC to +180 decC), Pressure rating; 10000psi (690 bar) Maximum cold working pressure, Lockable handle, Panel mount as standard

Check availability Request a quote

BV02SL08F0210ERV6K

BV02SL08F0210ERV6K - Valve type: 3 Way Ball Valve, Nominal pipe size; 1/2", Connection type; Female thread (NPT unless stated otherwise), Material; UNS S31600/S31603 Stainless steel, Bore size; 10mm, Seat material; PEEK, Seal arrangement; RTFE/Viton Elastomer (-20 degC to +180 decC), Pressure rating; 6000psi (414 bar) Maximum cold working pressure

Check availability Request a quote

BV02SL08F0210ERV6KLK

BV02SL08F0210ERV6KLK - Valve type: 3 Way Ball Valve, SL pattern type, Nominal pipe size; 1/2", Connection type; Female thread (NPT unless stated otherwise), Material; UNS S31600/S31603 Stainless steel, Bore size; 10mm, Seat material; PEEK, Seal arrangement; RTFE/Viton Elastomer (-20 degC to +180 decC), Pressure rating; 6000psi (414 bar) Maximum cold working pressure, Options; Lockable handle, Panel mount as standard.

Check availability Request a quote

BV02SL08F0210ERV96K

BV02SL08F0210ERV96K - Valve type: 3 Way Ball Valve, "L" type porting, Nominal pipe size; 1/2", Connection type; Female thread (NPT unless stated otherwise), Material; UNS S31600/S31603 Stainless steel, Bore size; 10mm, Seat material; PEEK, Seal arrangement; RTFE/Viton Elastomer, Pressure rating; 6000psi (414 bar) Maximum cold working pressure

Check availability Request a quote

BV02SL08F0210ERV96KLK

BV02SL08F0210ERV96KLK - Valve type: 3 Way Ball Valve, "L" type porting, Nominal pipe size; 1/2", Connection type; Female thread (NPT unless stated otherwise), Material; UNS S31600/S31603 Stainless steel, Bore size; 10mm, Seat material; PEEK, Seal arrangement; RTFE/Viton Elastomer, Pressure rating; 6000psi (414 bar) Maximum cold working pressure. Lockable handle

Check availability Request a quote

BV02SL08F0212.5TT1KLK

BV02SL08F0212.5TT1KLK - Valve type: 3 Way Ball Valve, "L" type, Nominal pipe size; 1/2", Connection type; Female thread, Material; UNS S31600/S31603 Stainless steel (ASTM A351 CF8M for 1k psi and 2k psi types), Bore size; 12.5mm, Seat material; PTFE, Seat material; PTFE, Pressure rating; 1000psi (70bar) Maximum cold working pressure, Lockable handle

Check availability Request a quote

BV02SL12F0215TT1KLK

BV02SL12F0215TT1KLK - Valve type: 3 Way Ball Valve, Nominal pipe size; 3/4", Connection type; Female thread (NPT unless stated otherwise), Material; UNS S31600/S31603 Stainless steel, Bore size; 15mm, Seat material; PTFE, Seal arrangement; PTFE, 1000 psi, lockable

Check availability Request a quote

BV02SL12F0220ERV6KLK

BV02SL12F0220ERV6KLK - Valve type: 3 Way Ball Valve, Nominal pipe size; 3/4" "L" type configuration, Connection type; Female thread (NPT unless stated otherwise), Material; UNS S31600/S31603 Stainless steel (ASTM A351 CF8M for 1k psi and 2k psi types), Bore size; 20mm, Seat material; PEEK, Seal arrangement; RTFE/Viton Elastomer (-20 degC to +180 decC), Pressure rating; 6000psi (414 bar) Maximum cold working pressure, Lockable handle

Check availability Request a quote

BV02SL16F0220TT1KLK

BV02SL16F0220TT1KLK - Valve type: 3 Way Ball Valve, "L" type, Nominal pipe size 1", Connection type; Female thread (NPT unless stated otherwise), Material; UNS S31600/S31603 Stainless steel (ASTM A351 CF8M for 1k psi and 2k psi types), Bore size; 20mm, Seat material; PTFE, Seal arrangement; RTFE (-40°C to +200°C), Pressure rating; 1000psi (70bar) Maximum cold working pressure, Lockable handle

Check availability Request a quote

BV02ST04F0210ERV10K

BV02ST04F0210ERV10K - Valve type: 3 Way Ball Valve, "T" type porting, Nominal pipe size; 1/4", Connection type; Female thread (NPT unless stated otherwise), Material; UNS S31600/S31603 Stainless steel, Bore size; 10mm, Seat material; PEEK, Seal arrangement; RTFE/Viton Elastomer (-20 degC to +180 decC), Pressure rating; 10 000 psi(689 bar) Maximum cold working pressure

Check availability Request a quote

BV02ST04F0210ERV6K

BV02ST04F0210ERV6K - Model Code: Single Isolation Ball Valve, Nominal Pipe Size: 3/8 inch, Connection Type: Female Thread NPT, Material: UNS S31600 / S31603 Stainless Steel, Bore Size: 7mm Bore, Seat Material: Glass Filled PTFE, Seal Stem and Body: PTFE , Pressure Rating: 1 000 psi / 70 bar Maximum Cold Working Pressure, Handle: Lockable Handle, Mounting: Pipe Mount, FAT: Standard FAT, Option: Nace to be confirmed,

Check availability Request a quote

BV02ST08F0212.5TT1KLK

BV02ST08F0212.5TT1KLK - Valve type: 3 Way "T" port Ball Valve, Nominal pipe size; 1/2", Connection type; Female thread (NPT unless stated otherwise), Material; UNS S31600/S31603 Stainless steel, Bore size; 12.5mm, Seat material; PTFE, Seal arrangement; PTFE, Pressure rating; 1000psi (70bar) Maximum cold working pressure, Lockable handle

Check availability Request a quote
