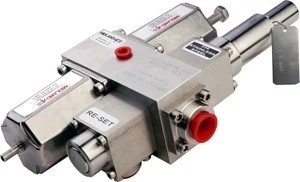

Midland Acs Opd Silsave System - Over Pressurisation Device Stemsaver

Model Number: OPD

The purpose of the MIDLAND ACS OPD Silsave system is to serve as a preventative pressure-sensitive device, designed to prevent the downstream system receiving an unscheduled increase in supply pressure thus causing potential damage and downtime.

Should an increase in supply pressure be sensed, within 30 milliseconds the device will automatically fail-safe and lock the downstream pressure at the secondary preset trip pressure level. Thereby eliminating the potential damage occurring from increased torque or thrust values.

On over pressurisation of the outlet due to failure of the regulator, the valve will be triggered to shut-off the outlet and either vent the downstream pressure or trap it. The choice is made by leaving the exhaust port of the valve open or plugged. Once the fault on the regulator has been corrected the unit is reset by pushing the button on the underside which resets the unit. Models also available with air pilot operators or proximity switches to indicate the triggered position. In line with today's requirements for space-saving and efficiency, the system is all close-coupled within a common body.

  • Specifically designed for Severe Offshore Environments
  • Functional safety data available upon request
  • 1/4” and 1/2” connection sizes
  • Auto shut-off
  • Easy Installation
  • Ambient Temperature Range -20ºC to +80ºC (Low-temperature version -50ºC)
  • 316 Stainless Steel Construction
  • Protection of equipment from regulator failure & overpressure events
