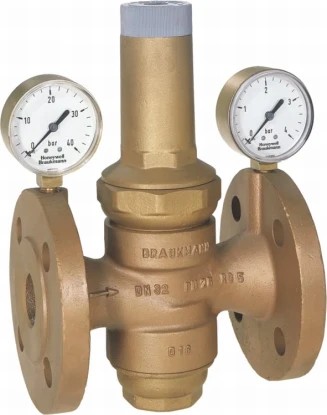

Model Number: D16N


Pressure reducing valves of this Resideo Braukmann type D16N protect installations against excessive pressure from the supply. They can be used for household, industrial or commercial applications within the range of their specification. By installing a pressure reducing valve, pressurisation damage is avoided and water consumption is reduced. The set pressure is also maintained constant, even when there is wide inlet pressure fluctuation. Reduction of the operating pressure and maintaining it at a constant level minimizes flow noise in the installation.

  • Media: Water, compressed air and nitrogen
  • Body material: red bronze RG5
  • Spring bonnet material: metal
  • Port connection type: flanges
  • Max. media temperature: 70 oC
  • Static pressure: PN25
  • Integral filter: 0,5 mm
  • Pressure setpoint range: 0,5 ... 2 bar
