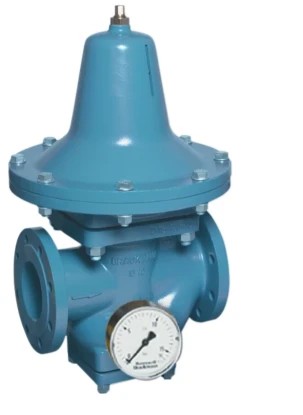

Resideo Braukmann D15Np Pressure Reducing Valve

Model Number: D15NP

Pressure reducing valves of this Resideo Braukmann type  D15NP protect installations against excessive pressure from the supply. They can be used for industrial or commercial applications within the range of their specification. By installing a pressure reducing valve, pressurisation damage is avoided and water consumption is reduced. The set pressure is also maintained constant, even when there is wide inlet pressure fluctuation. Reduction of the operating pressure and maintaining it at a constant level minimizes flow noise in the installation.

  • Media: Water, compressed air and nitrogen
  • Body material: cast iron GG25
  • Spring bonnet material: metal
  • Body finishing: powder coating
  • Port connection type: flanges
  • Max. media temperature: 70 oC
  • Static pressure: PN16
  • Pressure setpoint range: 0,2 ... 2 bar
