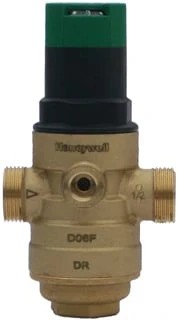

Resideo Braukmann D06Fn Water Pressure Reducing Valve

Model Number: D06FN

The low noise Resideo Braukmann D06F by Honeywell is one of the most popular PRVs on the market, with over 15 million units installed across Europe. The D06F pressure reducing valve protects domestic, commercial and industrial applications against excessive water supply pressure. It reduces both water consumption and noise from water hammer while minimising overpressure damage. The set outlet pressure can be maintained even when there are wide inlet pressure fluctuations. A drop tight seal means outlet water pressure will not increase when there is no flow. The D06F has been awarded the Waterwise Marque.

Some of the benefits of using the Honeywell Resideo Braukmann D06F are:

  • Approvals: DVGW, Up to size 1 1/4" approved for low noise, Group 1 without limitations
  • Media: Water, compressed air and nitrogen
  • Body material: brass, dezincification resistant
  • Spring bonnet material: synthetic material
  • Port connection type: external threads
  • Integral filter: 0,16 mm
  • Pressure setpoint range: 1,5 ... 6 bar

Special features include:

  • Integral fine filter
  • ACS certified
  • Conforms to BSEN 1567.
