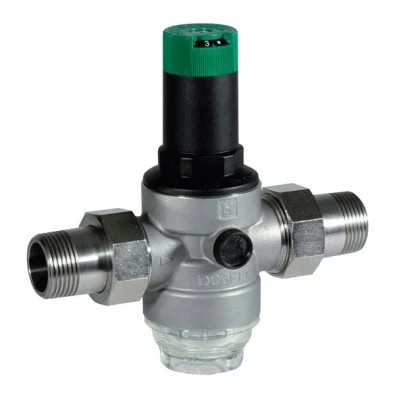

Resideo Braukmann D06Fi - Water Pressure Reducing Valve

Model Number: D06FI

Pressure reducing valves of this type  Resideo Braukmann D06FI  protect household water installations against excessive pressure from the supply. They can also be used for industrial or commercial applications within the range of their specification. By installing a pressure reducing valve, pressurisation damage is avoided and water consumption is reduced. The set pressure is also maintained constant, even when there is wide inlet pressure fluctuation. Reduction of the operating pressure and maintaining it at a constant level minimizes flow noise in the installation.

  • Approvals DVGW approved: Up to size 11/4" approved for low noise, Group 1
  • Media: Water, compressed air and Nitrogen
  • Body material: stainless steel
  • Spring bonnet material: synthetic material
  • Port connection type: external threads
  • Integral filter: 0,16 mm
  • Pressure setpoint range: 1,5 ... 6 bar

Can't find the right part?

We're official distributors, we can get it

Resideo D06FI-1/2B SS Pressure Red.Valve
Maximum inlet pressure: 25 bar
Output pressure range: 1.5-6 bar
Minimum pressure drop: 1.0 bar
Maximum operating temperature: 70 °C
Material: EPDM Diaphragm & Seal, Stainless Steel Body, Stainless Steel Filter Bow
Port size: 1/2" BSPP male connections
Gauge port size: 1/4" BSPP
DVGW and WRAS (up to 23°C) approved

HS Code: 8481 1005
Country Of Origin: Germany
Net Weight Each: 0.7KG
Resideo D06FI-1/2B SS Pressure Red.Valve
Maximum inlet pressure: 25 bar
Output pressure range: 1.5-6 bar
Minimum pressure drop: 1.0 bar
Maximum operating temperature: 70 °C
Material: EPDM Diaphragm & Seal, Stainless Steel Body, Stainless Steel Filter Bow
Port size: 1/2" BSPP male connections
Gauge port size: 1/4" BSPP
DVGW and WRAS (up to 23°C) approved

HS Code: 8481 1005
Country Of Origin: Germany
Net Weight Each: 0.7KG

£287.42 (ex VAT)

£344.90 (inc VAT)

Out of stock
Resideo D06FI-11/2B SS Pressure Red.Valve
Maximum inlet pressure: 25 bar
Output pressure range: 1.5-6 bar
Minimum pressure drop: 1.0 bar
Maximum operating temperature: 70 °C
Material: EPDM Diaphragm & Seal, Stainless Steel Body, Stainless Steel Filter Bow
Port size: 1 1/2" BSPP male connections
Gauge port size: 1/4" BSPP
DVGW and WRAS (up to 23°C) approved

HS Code: 8481 1005
Country Of Origin: Germany
Net Weight Each: 2.9KG
Resideo D06FI-11/2B SS Pressure Red.Valve
Maximum inlet pressure: 25 bar
Output pressure range: 1.5-6 bar
Minimum pressure drop: 1.0 bar
Maximum operating temperature: 70 °C
Material: EPDM Diaphragm & Seal, Stainless Steel Body, Stainless Steel Filter Bow
Port size: 1 1/2" BSPP male connections
Gauge port size: 1/4" BSPP
DVGW and WRAS (up to 23°C) approved

HS Code: 8481 1005
Country Of Origin: Germany
Net Weight Each: 2.9KG

£794.34 (ex VAT)

£953.21 (inc VAT)

Out of stock

Resideo D06FI-11/4B SS Pressure Red.Valve
Maximum inlet pressure: 25 bar
Output pressure range: 1.5-6 bar
Minimum pressure drop: 1.0 bar
Maximum operating temperature: 70 °C
Material: EPDM Diaphragm & Seal, Stainless Steel Body, Stainless Steel Filter Bow
Port size: 1 1/4" BSPP male connections
Gauge port size: 1/4" BSPP

HS Code: 8481 1005
Country Of Origin: Germany
Net Weight Each: 1.6KG

£570.91 (ex VAT)

£685.09 (inc VAT)

Out of stock
Resideo D06FI-1B SS Pressure Red.Valve
Maximum inlet pressure: 25 bar
Output pressure range: 1.5-6 bar
Minimum pressure drop: 1.0 bar
Maximum operating temperature: 70 °C
Material: EPDM Diaphragm & Seal, Stainless Steel Body, Stainless Steel Filter Bow
Port size: 1" BSPP male connections
Gauge port size: 1/4" BSPP
DVGW and WRAS (up to 23°C) approved

HS Code: 8481 1005
Country Of Origin: Germany
Net Weight Each: 1.2KG
Resideo D06FI-1B SS Pressure Red.Valve
Maximum inlet pressure: 25 bar
Output pressure range: 1.5-6 bar
Minimum pressure drop: 1.0 bar
Maximum operating temperature: 70 °C
Material: EPDM Diaphragm & Seal, Stainless Steel Body, Stainless Steel Filter Bow
Port size: 1" BSPP male connections
Gauge port size: 1/4" BSPP
DVGW and WRAS (up to 23°C) approved

HS Code: 8481 1005
Country Of Origin: Germany
Net Weight Each: 1.2KG

£460.38 (ex VAT)

£552.46 (inc VAT)

Out of stock
Resideo D06FI-2B SS Pressure Red.Valve
Maximum inlet pressure: 25 bar
Output pressure range: 1.5-6 bar
Minimum pressure drop: 1.0 bar
Maximum operating temperature: 70 °C
Material: EPDM Diaphragm & Seal, Stainless Steel Body, Stainless Steel Filter Bow
Port size: 2" BSPP male connections
Gauge port size: 1/4" BSPP
DVGW and WRAS (up to 23°C) approved

HS Code: 8481 1005
Country Of Origin: Germany
Net Weight Each: 3.6KG
Resideo D06FI-2B SS Pressure Red.Valve
Maximum inlet pressure: 25 bar
Output pressure range: 1.5-6 bar
Minimum pressure drop: 1.0 bar
Maximum operating temperature: 70 °C
Material: EPDM Diaphragm & Seal, Stainless Steel Body, Stainless Steel Filter Bow
Port size: 2" BSPP male connections
Gauge port size: 1/4" BSPP
DVGW and WRAS (up to 23°C) approved

HS Code: 8481 1005
Country Of Origin: Germany
Net Weight Each: 3.6KG

£1,067.98 (ex VAT)

£1,281.58 (inc VAT)

Out of stock
