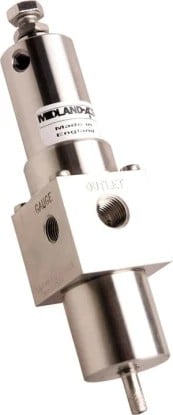

Midland Acs Model 3525 - Stainless Steel Filter Regulator

Model Number: 3525

The Midland ACS 3525 Series is a 316 Stainless Steel combined unit for filtration and regulation of compressed air in the offshore and allied industries. The unit benefits from a manual drain, 25-micron element and is self-relieving.

  • Ports ¼" NPT
  • Flow Capacity At 6.3 bar inlet pressure, 5.3 bar secondary pressure, 1 bar pressure drop  696 L/min (707 cu in/sec)
  • Pressure Range 3.5 to 8 BAR
  • Relief Port 1/16" NPT
  • Ambient Temperature -15ºC to +80ºC (Low temp version -50ºC)

Can't find the right part?

We're official distributors, we can get it

Midland Stainless Steel Filter Regulator, Max Inlet Pressure: 20bar, Outlet Range: 0.5 -8 BAR, Viton Seals, Manual Drain, 25 Micron Element\n \n HS Code: 8481 1019

£122.21 (ex VAT)

£146.65 (inc VAT)

Out of stock
