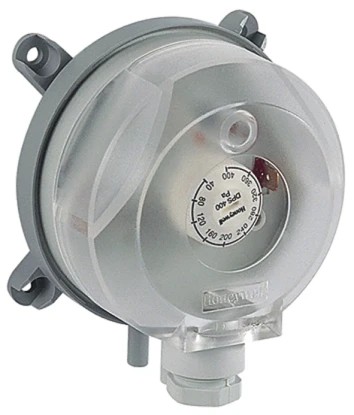

Honeywell Dps Series Pressure Switch

Model Number: DPS

Discontinued

The HONEYWELL DPS is for filter monitor or flow switch for air, non-combustible, non-aggressive gases in air conditioning and ventilating installations.

  • Kind of pressure: overpressure, relative
  • Pressure connection: plastic connection piece for 5 mm (internal) hose
  • Electrical connection AMP connector 6,3x0,8 (DIN 46244) or screw terminals
  • Protection class: IP54
  • Sensing element material: ABS + Silicon
  • Media temp: -20 ... 85 oC
  • Ambient temperature: -20 ... 85 oC
  • Switch function/capacity: SPDT switch 240 Vac; 1,5 A (0.4)A
  • Certificates: CE0085AR0013 according EC Gas Appliance Directive EU/2009/142/EG and DIN EN 1854
  • Max. pressure: 10000 Pa
