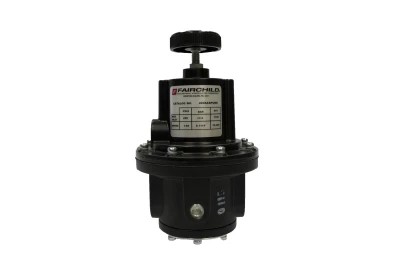

Fairchild Model 4000Bp - Back Pressure Regulator

Model Number: 4000BP

The Model 4000BP is a high flow regulator that relieves excess pressure in a pneumatic system. The Model 4000BP provides greater accuracy over a narrow pressure range than simple relief valves. Control sensitivity of 1/2" water column allows use in precision applications.

  • System Pressure 250 PSIG maximum
  • Sensitivity Less than 1/2" Water Column
  • Adjustment range 0.5-10 to 2-150psi
  • Pipe size 3/8" NPT - 3/4" NPT/BSPT

Can't find the right part?

We're official distributors, we can get it

Pressure range 1-60 psi, Ported 3/4" BSPT , Aluminium Body, Sensitivity 1/2" WC

£929.55 (ex VAT)

£1,115.46 (inc VAT)

Out of stock
