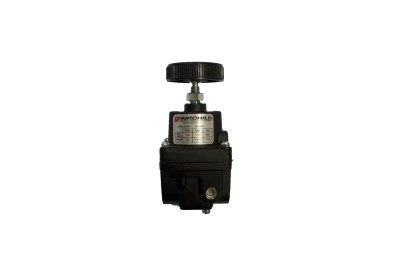

Fairchild Model 30Bp - Back Pressure Regulator

Model Number: 30BP

The Model 30BP is a high capacity regulator that provides relief of excess pressure in a pneumatic system. The Model 30BP is sensitive to 1/4" Water Column variation which permits use in precision processes. The flow of up to 40SCFM.

  • System Pressure 150 PSIG Maximum
  • Sensitivity 1/4" Water Column
  • Adjustment range 0-2 to 2-100
  • Pipe size 1/4" NPT - 3/8" NPT/BSPT

Can't find the right part?

We're official distributors, we can get it

Fairchild Precision Back Pressure Regulator.
Maximum System Pressure: 150 psi.
Output Pressure Range: 1-60 psi.
Material: Alloy body, Nitrile elastomers.
Port Size: 1/4" NPT.

HS Code: 9032 810080.
Country of Origin: USA.
Net Weight: 0.40kg.

£292.49 (ex VAT)

£350.99 (inc VAT)

Out of stock
