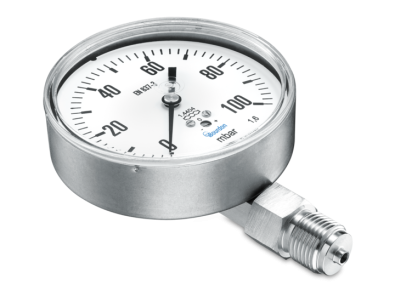

BOURDON MTX5 - INDUSTRIAL CAPSULE PRESSURE GAUGE

Bourdon

Model Number: MTX5

Nominal size: 100 mm
Case material: Stainless steel 1.4301 / AISI 304
Bezel ring material: Black, ABS (for type B)
Window material: Polycarbonate, snap-fitted into the case
Protection rating (EN 60529): IP33 for mounting type A-D / IP44 for mounting type B-F-E
Dial: White, Aluminium
Pointer: Black, Aluminium
Movement material: Brass
Wetted parts: Process connection material: Stainless steel
Capsule: Stainless steel 1.4404 / AISI 316L
Performance: Accuracy according to EN 837-3 Class 1.6
Min. measuring range 0 ... 16 mbar / Max. measuring range 0 ... 600 mbar
