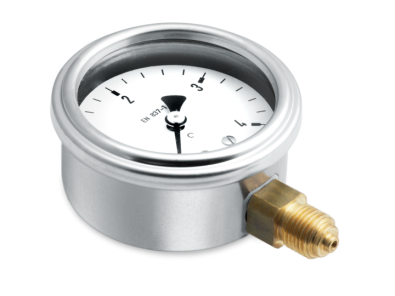

Bourdon

Model Number: MMD3

Nominal size: 63 mm
Case material: Stainless steel 1.4301 / AISI 304
Bezel ring material: Stainless steel 1.4301 / AISI 304
Window material: Styrol-Acrylnitril-Copolymer (SAN)
Window gasket: Elastomer
Protection rating (EN 60529): IP65
Dial: White, aluminium
Pointer: Black, aluminium
Movement material: Brass
Wetted parts: Process connection material: Brass
Bourdon tube: Bronze
Performance: Accuracy according to EN 837-1 Class 1.6
Min. measuring range 0 ... 1 bar / Max. measuring range 0 ... 600 bar
