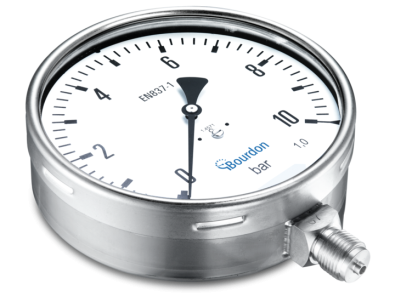

Model Number: MEX8

Nominal size: 160 mm
Case material: Stainless steel 1.4301 / AISI 304 (316L optional)
Bezel ring material: Stainless steel 1.4301 / AISI 304 (316L optional)
Window material: Instrument glass
Window gasket: Elastomer
Protection rating (EN 60529): IP65
Dial: White, Aluminium
Pointer: Black, Aluminium
Movement material: Stainless steel
Wetted parts: Process connection material Stainless steel 1.4404 / AISI 316L
Bourdon tube: Stainless steel 1.4404 / AISI 316L
Performance: Accuracy according to EN 837-1 Class 1
Min. measuring range 0 ... 0.6 bar / Max. measuring range 0 ... 1600 bar Type of pressure
Approval / Conformities ATEX Ex II 2 GDc-IM2c
