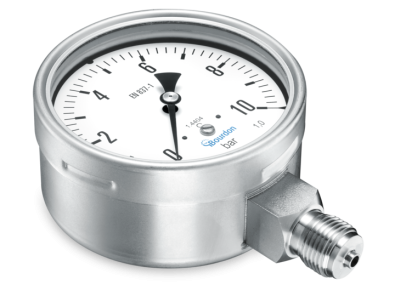

Bourdon

Model Number: MEM5

Nominal size: 100 mm
Case material: Stainless steel 1.4301 / AISI 304 (316L optional)
Bezel ring material: Stainless steel 1.4301 / AISI 304 (316L optional)
Window material: Instrument glass
Window gasket: Elastomer
Protection rating (EN 60529): IP65
Dial: White, Aluminium
Pointer: Black, Aluminium
Movement material: Stainless steel
Safety according to EN 837-1 S1: Pressure gauge with blow-out device
Wetted parts: Process connection material: Monel 400
Bourdon tube: Monel 400
Performance: Accuracy according to EN 837-1 Class 1
Min. measuring range 0 ... 0.6 bar / Max. measuring range 0 ... 600 bar
Approval / Conformities ATEX Ex II 2 GDc-IM2c
