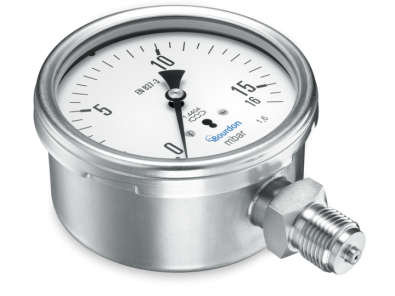

Nominal size: 100 mm
Case material: Stainless steel 1.4301 / AISI 304 (316L optional)
Bezel ring material: Stainless steel 1.4301 / AISI 304 (316L optional)
Window material: Laminated safety glass
Window gasket: Elastomer
Protection rating (EN 60529): IP65
Dial: White, Aluminium
Pointer: Black, Aluminium
Movement material: Brass
Wetted parts: Process connection material: Stainless steel 1.4404 / AISI 316L
Capsule: Stainless steel 1.4404 / AISI 316L
Performance: Accuracy according to EN 837-3 Class 1.6
Min. measuring range 0 ... 16 mbar / Max. measuring range 0 ... 600 mbar
Approval / Conformities ATEX Ex II 2 GDc-IM2c
