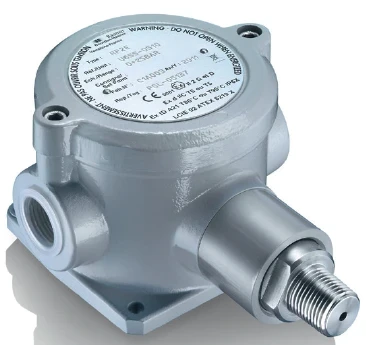

Model Number: RP2E

Protection rating (EN60529): IP66
Case material: Grey painted, Aluminum
Mounting: Wall mounting, 2 x M6 x 16 screws
Scale: Internal graduated scale
Min. pressure range 0 ... 1 bar / Max. pressure range 0 ... 100 bar
Repeatability: ± 1 % FS , (constant cycle)
Wetted parts: Process connection material: Stainless steel 1.4404 / AISI 316L
Diaphragm: Stainless steel 1.4404 / AISI 316L
Electrical data: Electrical connection: Via internal terminal block with cable gland 3/4 NPT (ATEX/IECEx certified) for Ø 7 to 12 mm
Approval / Conformities: ATEX/IECEx Certificate LCIE 02 ATEX 6219X / IECEx LCIE 15.0059X
ATEX/IECEx: ATEX directive 2014/34/UE / Ex II 2 G
