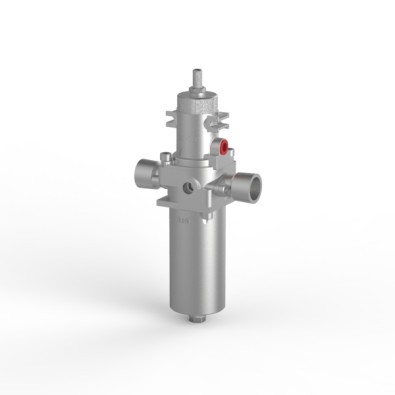

Bifold Model SH12 - Filter Regulators Auto Drain

Combined Filter and Pressure Regulator: Integrated unit that cleans compressed air and regulates downstream pressure
Automatic Condensate Drain: Self‑operated drain for continuous, unattended removal of moisture and contaminants
Replaceable Filter Element: Interchangeable cartridges with selectable micron ratings (e.g., 5 µm – 40 µm or higher)
Adjustable Regulated Pressure: Fine pressure setting suitable for instrument air systems, valves and pneumatic controls
Robust Stainless Steel Construction: Typically 316 stainless steel for excellent corrosion resistance and suitability in harsh environments
Larger Port Size: Commonly 1/2″ (or larger) process connections with gauge port — supports higher flow than smaller series
Maximum Working Pressure: Typically up to ~20 bar (model dependent)
Self‑Relieving or Non‑Relieving Options: Self‑relieving vents excess downstream pressure during adjustment when specified
Suitable Media: Compressed air and compatible inert gases
Easy Maintenance: Filter elements and automatic drain components designed for minimal service intervention
Gauge Port: Provision for pressure gauge installation for monitoring regulated pressure
Flow Capacity (Approximate): 1/2″ Port: Cv ~2.5–3.5 → ~75–100 SCFM (2.1–2.8 m³/min) / Larger Flow Variants (if available): Cv ~4.0+ → ~110–140 SCFM (3.1–4.0 m³/min)

Model Number: SH12-FR-AD
