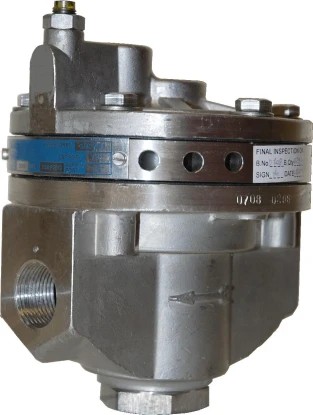

Midland Acs 3000 Series - Stainless Steel Volume Booster

Model Number: 3000

*** NO LONGER AVAILABLE, FOR A REPLACEMENT, PLEASE SEE: https://www.finecontrols.co.uk/yt-300 ***

The Midland ACS 3000 Series volume booster is stainless steel that can substantially increase stroking speeds of large actuators while maintaining normal stable responses. With a 1:1 pressure ratio and supply pressure of up to 150 PSIG, this unit is suitable for a variety of applications.

  • Supply / Output connection: ¼", ½" or ¾" NPT (F)
  • Signal Connection: ¼" NPT (F)
  • Supply Pressure: Up to 150 psig (10.3 bar)
  • Pressure Ratio: 1:1
  • Ambient Temperature: -40˚C to + 70˚C (-40˚F + 160˚F)
  • Deadband Width: 1psig (0.7 bar) or 5% of output span, whichever is greater
  • Operating Supply Gases: Air, Nitrogen, Methane (Natural Gas)
  • Flow Capacity: Cv (In-Out) - 3.5 CV (Out - exhaust) - 2.5
