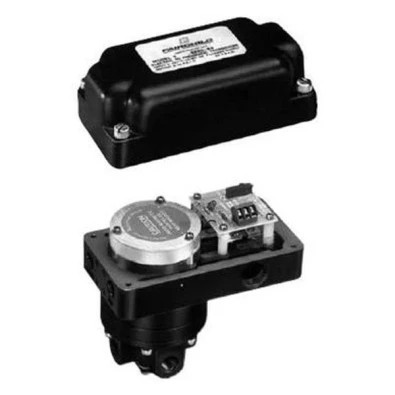

Fairchild Model T5220 - I-P Transducer / Converter

Model Number: T5220

The T5220 Series Electro-Pneumatic Transducer converts a DC current or voltage input signal to a directly proportional pneumatic output. The integrated booster in the Model T5220 provides increased output pressure and flow for systems which require output pressure and flows greater than those provided by the Model T5200.

  • Output range (1:1 Ratio) 3-15 PSIG
  • Output Capacity (SCFM) 15 Maximum @ 20 PSIG supply, 45 @100 PSIG
  • Input Signal Various
  • Approvals: FM, CSA & CENELEC - Explosion-Proof & Intrinsically Safe
