Model Number: 25

The Model 25 Reversing Relay is designed for applications requiring an output that equals a manually preset spring load minus a variable signal pressure.

  • Flow capacity 40 SCFM @ 100 psi supply, 20 psi set
  • Sensitivity 1/8" Water Column
  • Supply Pressure 250 psi maximum
  • Output pressure 150 psi maximum
  • Adjustment range 0-10 PSIG to 2-150 PSIG
  • Pipe size 1/4" NPT - 1/2" NPT/BSPT
Fairchild Model 25 Reversing Relay
Part Number: 25432
Maximum Supply Pressure: 250 psi
Output Pressure Range: 0.5-30 psi
Max Signal Pressure: 150 psi
Port Size: 1/4" NPT

HS Code: 9032.81.00.80
Country of Origin: USA
Net Weight: 1kg


£617.35 (ex VAT)

£740.82 (inc VAT)

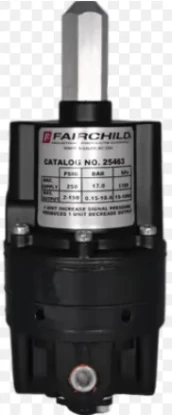

Fairchild Model 25 Reversing Relay
Part Number: 25463
Maximum Supply Pressure: 250 psi
Output Pressure Range: 2-150 psi
Max Signal Pressure: 150 psi
Port Size: 3/8" NPT

HS Code: 9032.81.00.80
Country of Origin: USA
Net Weight: 1kg

£617.35 (ex VAT)

£740.82 (inc VAT)
