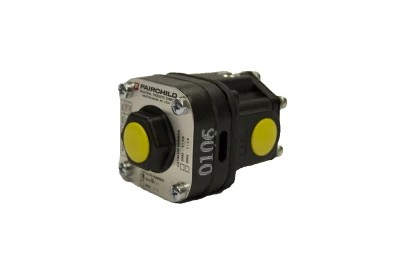

Fairchild Model 2000 - Volume Booster

Model Number: 2000

The Model 200 Pneumatic Volume Booster is ideally suited for a variety of applications including the operation of air systems that require rapid valve or cylinder action. Small signal volume assures rapid response to pressure variation.

Please note this product will not be available from the September 2021

  • Maximum Supply Pressure 250 PSIG
  • Maximum Output Pressure 150 PSIG
  • Flow Capacity (SCFM) 40 @ 100 PSIG & 20 PSIG set point
  • Sensitivity Less than 1" Water Column
  • Ratio 1:1 - 1:1.6
  • Pipe size 1/4" NPT - 3/8" NPT/BSPT
