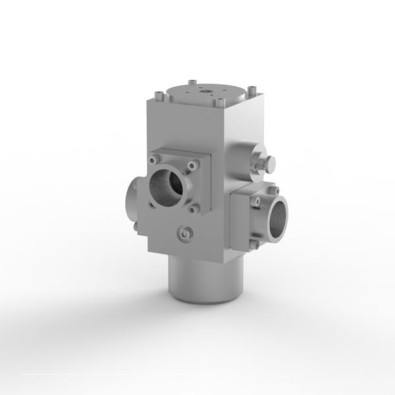

Bifold Model VBP-16 - Stainless Steel Volume Booster
Download Specification

Model Number: VBP-16

Request a quote View Prices
  • Volume Booster Function: Amplifies a pilot/control pressure signal into a high‑flow pneumatic output, enhancing response speed and capability for large actuators and control valves
  • Very High Flow Capacity: One of the largest models in the VBP series, designed for applications with very high demand for flow and rapid actuation
  • Working Pressure: Typically supports inlet pressures up to ~20 bar (model dependent) with robust downstream performance
  • Captive Exhaust Vent: Built‑in exhaust venting eliminates the need for separate external vent piping
  • Independent Fill and Vent Control: Allows controlled flow into and out of actuators or valve pilot lines for fast actuation and safe venting
  • Large Port Sizes: Usually 1/2″ or larger process connections to accommodate high flow volumes
  • Seal Material Options: Available in various elastomer selections (e.g., Viton) for broad temperature range and media compatibility
  • Media Compatibility: Compressed air and compatible inert gases
  • Typical Use Cases: Boosting pilot pressure for large pneumatic actuators / Rapid actuation of large ESD (Emergency Shut‑Down) valves or control valves / High‑capacity pneumatic control systems requiring large flow boosts.
  • Robust Industrial Design: Built for frequent cycling, heavy‑duty duty, and long service life in industrial environments
VBP-16-025
Volume Booster - 1" NPT, 20 Bar M.W.P,
Ratio: 1:1 ratio pilot pressure to valve pressure,
Seal Material: Viton -20°C to +90°C,
Drain Type: Manual Drain, Filter size: 40-50 Micron element,
Thread Form: NPT Thread Ports,
Mounting Brackets: With Mounting Brackets,
Drain Screw: Regular Drain Screw,
Bypass Shroud: Shrouded Bypass Needle,
EAC stamping: N/A,
Sour Gas Compatibility: No,

K10151

HS Code: 8481 209010
<>>
Volume Booster - 1" NPT, 20 Bar M.W.P,
Ratio: 1:1 ratio pilot pressure to valve pressure,
Seal Material: Viton -20°C to +90°C,
Drain Type: Manual Drain, Filter size: 40-50 Micron element,
Thread Form: NPT Thread Ports,
Mounting Brackets: With Mounting Brackets,
Drain Screw: Regular Drain Screw,
Bypass Shroud: Shrouded Bypass Needle,
EAC stamping: N/A,
Sour Gas Compatibility: No,

K10151

HS Code: 8481 209010
<>>
Pre-order
Check availability Request a quote
VBP-16-11-AL
Volume Booster - 1" NPT, 20 Bar M.W.P,
Ratio: 1:1 ratio pilot pressure to valve pressure,
Seal Material: Fluorosilicone -60°C to +100°C,
Drain Type: No filter, Filter size: No filter element,
Mounting Brackets: With Mounting Brackets,
Drain Screw: N/A,
Bypass Shroud: Unshrouded Bypass Needle,

K14546

HS Code: 8481 209010
Pre-order
Check availability Request a quote
VBP-16-11-AL-AD-X1-L214
VBP-16-11-AL-AD-X1-L214 - Model Code, Port: Volume Booster - 1 inch NPT - 20 Bar M.W.P, Ratio: 1:1 ratio pilot pressure to valve pressure, Seal Material: Fluorosilicone -40°C to +100°C, Drain Type: Auto Drain, Filter size: 5 Micron element, Mounting Brackets: Mounting Brackets, Drain Screw: N/A, Bypass Shroud: Unshrouded Bypass Needle,
Pre-order
Check availability Request a quote
VBP-16-11-AL-AD-X4
VBP-16-11-AL-AD-X4 - Model Code, Port: Volume Booster - 1 inch NPT - 20 Bar M.W.P, Ratio: 1:1 ratio pilot pressure to valve pressure, Seal Material: Fluorosilicone -60°C to +100°C, Drain Type: Auto Drain, Filter size: 40-50 Micron element, Thread Form: NPT Thread Ports, Mounting Brackets: Mounting Brackets, Drain Screw: N/A, Bypass Shroud: Unshrouded Bypass Needle, EAC stamping: N/A, Sour Gas Compatibility: No,
Pre-order
Check availability Request a quote
VBP-16-11-AL-L115
Volume Booster - 1" NPT, 20 Bar M.W.P,
Ratio: 1:1 ratio pilot pressure to valve pressure,
Seal Material: Fluorosilicone -60°C to +100°C,
Drain Type: No filter, Filter size: No filter element,
Mounting Brackets: No Mounting Brackets,
Drain Screw: N/A,
Bypass Shroud: Unshrouded Bypass Needle,

K14547

HS Code: 8481 209010
Pre-order
Check availability Request a quote
VBP-16-11-AL-L115-L214
Volume Booster - 1" NPT, 20 Bar M.W.P,
Ratio: 1:1 ratio pilot pressure to valve pressure,
Seal Material: Fluorosilicone -60°C to +100°C,
Drain Type: No Drain, Filter size: No filter element,
Thread Form: NPT Thread Ports,
Mounting Brackets: Less Mounting Brackets,
Drain Screw: N/A,
Bypass Shroud: Unshrouded Bypass Needle,
EAC stamping,
Sour Gas Compatibility: No,

K17729

HS Code: 8481 209010
Pre-order
Check availability Request a quote
VBP-16-11-AL-L129
Volume Booster - 1" NPT, 20 Bar M.W.P,
Ratio: 1:1 ratio pilot pressure to valve pressure,
Seal Material: Fluorosilicone -60°C to +100°C,
Drain Type: No Drain, Filter size: No filter element,
Thread Form: NPT Thread Ports,
Mounting Brackets: With Mounting Brackets,
Drain Screw: N/A,
Bypass Shroud: Shrouded Bypass Needle,
EAC stamping: N/A,
Sour Gas Compatibility: No,

K14867

HS Code: 8481 209010
Pre-order
Check availability Request a quote
VBP-16-11-AL-L214
Volume Booster - 1" NPT, 20 Bar M.W.P,
Ratio: 1:1 ratio pilot pressure to valve pressure,
Seal Material: Fluorosilicone -60°C to +100°C,
Drain Type: No filter, Filter size: No filter element,
Mounting Brackets: With Mounting Brackets,
Drain Screw: N/A,
Bypass Shroud: Unshrouded Bypass Needle,
EAC Conformance stamping details,

K17817

HS Code: 8481 209010
Pre-order
Check availability Request a quote
VBP-16-11-AL-MD-X1-L115
Volume Booster - 1" NPT, 20 Bar M.W.P,
Ratio: 1:1 ratio pilot pressure to valve pressure,
Seal Material: Fluorosilicone -60°C to +100°C,
Drain Type: Manual Drain, Filter size: 5 Micron element,
Thread Form: NPT Thread Ports,
Mounting Brackets: No Mounting Brackets,
Drain Screw: Regular Drain Screw,
Bypass Shroud: Unshrouded Bypass Needle,
EAC stamping: N/A,
Sour Gas Compatibility: No,

K16035

HS Code: 8481 209010
Volume Booster - 1" NPT, 20 Bar M.W.P,
Ratio: 1:1 ratio pilot pressure to valve pressure,
Seal Material: Fluorosilicone -60°C to +100°C,
Drain Type: Manual Drain, Filter size: 5 Micron element,
Thread Form: NPT Thread Ports,
Mounting Brackets: No Mounting Brackets,
Drain Screw: Regular Drain Screw,
Bypass Shroud: Unshrouded Bypass Needle,
EAC stamping: N/A,
Sour Gas Compatibility: No,

K16035

HS Code: 8481 209010
Pre-order
Check availability Request a quote
VBP-16-11-AL-MD-X4
Volume Booster - 1" NPT, 20 Bar M.W.P,
Ratio: 1:1 ratio pilot pressure to valve pressure,
Seal Material: Fluorosilicone -40°C to +100°C,
Drain Type: Manual Drain, Filter size: 40-50 Micron element,
Mounting Brackets: With Mounting Brackets,
Drain Screw: Regular Drain Screw,
Bypass Shroud: Unshrouded Bypass Needle,

K14548

HS Code: 8481 209010
Pre-order
Check availability Request a quote
VBP-16-11-AL-MD-X4-L115
Volume Booster - 1" NPT, 20 Bar M.W.P,
Ratio: 1:1 ratio pilot pressure to valve pressure,
Seal Material: Fluorosilicone -60°C to +100°C,
Drain Type: Manual Drain, Filter size: 40-50 Micron element,
Thread Form: NPT Thread Ports,
Mounting Brackets: No Mounting Brackets,
Drain Screw: Regular Drain Screw,
Bypass Shroud: Unshrouded Bypass Needle,
EAC stamping: N/A,
Sour Gas Compatibility: No,

K17313

HS Code: 8481 209010
Volume Booster - 1" NPT, 20 Bar M.W.P,
Ratio: 1:1 ratio pilot pressure to valve pressure,
Seal Material: Fluorosilicone -60°C to +100°C,
Drain Type: Manual Drain, Filter size: 40-50 Micron element,
Thread Form: NPT Thread Ports,
Mounting Brackets: No Mounting Brackets,
Drain Screw: Regular Drain Screw,
Bypass Shroud: Unshrouded Bypass Needle,
EAC stamping: N/A,
Sour Gas Compatibility: No,

K17313

HS Code: 8481 209010
Pre-order
Check availability Request a quote
VBP-16-11-AL-MD-X4-L115-L115
Volume Booster - 1" NPT, 20 Bar M.W.P,
Ratio: 1:1 ratio pilot pressure to valve pressure,
Seal Material: Fluorosilicone -40°C to +100°C,
Drain Type: Manual Drain, Filter size: 40-50 Micron element,
Mounting Brackets: No Mounting Brackets,
Drain Screw: Knurled Drain Screw,
Bypass Shroud: Unshrouded Bypass Needle,

K14549

HS Code: 8481 209010
Pre-order
Check availability Request a quote
VBP-16-11-AL-MD-X4-L115-L116
VBP-16-11-AL-MD-X4-L115-L116 - Model Code, Port: Volume Booster - 1 inch NPT - 20 Bar M.W.P, Ratio: 1:1 ratio pilot pressure to valve pressure, Seal Material: Fluorosilicone -40°C to +100°C, Drain Type: Manual Drain, Filter size: 40-50 Micron element, Mounting Brackets: Less Mounting Brackets, Drain Screw: Knurled Drain Screw, Bypass Shroud: Unshrouded Bypass Needle,
Check availability Request a quote
VBP-16-11-V
Volume Booster - 1" NPT, 20 Bar M.W.P,
Ratio: 1:1 ratio pilot pressure to valve pressure,
Seal Material: Viton -20°C to +180°C,
Drain Type: No Drain, Filter size: No filter element,
Thread Form: NPT Thread Ports,
Mounting Brackets: With Mounting Brackets,
Drain Screw: N/A,
Bypass Shroud: Unshrouded Bypass Needle,
EAC stamping: N/A,
Sour Gas Compatibility: No,

K8993

HS Code: 8481 209010
Pre-order
Check availability Request a quote
VBP-16-11-V-AD-X1
Volume Booster - 1" NPT, 20 Bar M.W.P,
Ratio: 1:1 ratio pilot pressure to valve pressure,
Seal Material: Viton -20°C to +180°C,
Drain Type: Auto Drain, Filter size: 5 Micron element,
Thread Form: NPT Thread Ports,
Mounting Brackets: With Mounting Brackets,
Drain Screw: N/A,
Bypass Shroud: Unshrouded Bypass Needle,
EAC stamping: N/A,
Sour Gas Compatibility: No,

K11366

HS Code: 8481 209010
Pre-order
Check availability Request a quote
VBP-16-11-V-AD-X1-L115
Volume Booster - 1" NPT, 20 Bar M.W.P,
Ratio: 1:1 ratio pilot pressure to valve pressure,
Seal Material: Viton -20°C to +180°C,
Drain Type: Auto Drain, Filter size: 5 Micron element,
Thread Form: NPT Thread Ports,
Mounting Brackets: No Mounting Brackets,
Drain Screw: N/A,
Bypass Shroud: Unshrouded Bypass Needle,
EAC stamping: N/A,
Sour Gas Compatibility: No,

K12676

HS Code: 8481 209010
Pre-order
Check availability Request a quote
VBP-16-11-V-AD-X4
Volume Booster - 1" NPT, 20 Bar M.W.P,
Ratio: 1:1 ratio pilot pressure to valve pressure,
Seal Material: Viton -20°C to +180°C,
Drain Type: Auto Drain, Filter size: 40-50 Micron element,
Thread Form: NPT Thread Ports,
Mounting Brackets: With Mounting Brackets,
Drain Screw: N/A,
Bypass Shroud: Unshrouded Bypass Needle,
EAC stamping: N/A,
Sour Gas Compatibility: No,

K9694

HS Code: 8481 209010
Pre-order
Check availability Request a quote
VBP-16-11-V-AD-X4-L115
Volume Booster - 1" NPT, 20 Bar M.W.P,
Ratio: 1:1 ratio pilot pressure to valve pressure,
Seal Material: Viton -20°C to +180°C,
Drain Type: Auto Drain, Filter size: 40-50 Micron element,
Mounting Brackets: No Mounting Brackets,
Drain Screw: N/A,
Bypass Shroud: Unshrouded Bypass Needle,

K15393

HS Code: 8481 209010
Pre-order
Check availability Request a quote
VBP-16-11-V-L115
Volume Booster - 1" NPT, 20 Bar M.W.P,
Ratio: 1:1 ratio pilot pressure to valve pressure,
Seal Material: Viton -20°C to +90°C,
Drain Type: No Drain, Filter size: No filter element,
Thread Form: NPT Thread Ports,
Mounting Brackets: No Mounting Brackets,
Drain Screw: N/A,
Bypass Shroud: Unshrouded Bypass Needle,
EAC stamping: N/A,
Sour Gas Compatibility: No,

K9801

HS Code: 8481 209010
Pre-order
Check availability Request a quote
VBP-16-11-V-L129
Volume Booster - 1" NPT, 20 Bar M.W.P,
Ratio: 1:1 ratio pilot pressure to valve pressure,
Seal Material: Viton -20°C to +180°C,
Drain Type: No filter, Filter size: No filter element,
Mounting Brackets: With Mounting Brackets,
Drain Screw: N/A,
Bypass Shroud: Shrouded Bypass Needle,

K10071

HS Code: 8481 209010
Pre-order
Check availability Request a quote
VBP-16-11-V-L129-H2S
Volume Booster - 1" NPT, 20 Bar M.W.P,
Ratio: 1:1 ratio pilot pressure to valve pressure,
Seal Material: Viton -20°C to +180°C,
Drain Type: No Drain, Filter size: No filter element,
Thread Form: NPT Thread Ports,
Mounting Brackets: With Mounting Brackets,
Drain Screw: N/A,
Bypass Shroud: Shrouded Bypass Needle,
EAC stamping: N/A,
Sour Gas Compatibility: NACE MR0175,

K17318

HS Code: 8481 209010
Pre-order
Check availability Request a quote
VBP-16-11-V-MD-X1
Volume Booster - 1" NPT, 20 Bar M.W.P,
Ratio: 1:1 ratio pilot pressure to valve pressure,
Seal Material: Viton -20°C to +180°C,
Drain Type: Manual Drain, Filter size: 5 Micron element,
Mounting Brackets: With Mounting Brackets,
Drain Screw: Regular Drain Screw,
Bypass Shroud: Unshrouded Bypass Needle,

K10605

HS Code: 8481 209010
Pre-order
Check availability Request a quote
VBP-16-11-V-MD-X1-L115
Volume Booster - 1" NPT, 20 Bar M.W.P,
Ratio: 1:1 ratio pilot pressure to valve pressure,
Seal Material: Viton -20°C to +90°C,
Drain Type: Manual Drain, Filter size: 5 Micron element,
Thread Form: NPT Thread Ports,
Mounting Brackets: No Mounting Brackets,
Drain Screw: Regular Drain Screw,
Bypass Shroud: Unshrouded Bypass Needle,
EAC stamping: N/A,
Sour Gas Compatibility: No,

K17571

HS Code: 8481 209010
Pre-order
Check availability Request a quote
VBP-16-11-V-MD-X4
Volume Booster - 1" NPT, 20 Bar M.W.P,
Ratio: 1:1 ratio pilot pressure to valve pressure,
Seal Material: Viton -20°C to +180°C,
Drain Type: Manual Drain, Filter size: 40-50 Micron element,
Mounting Brackets: With Mounting Brackets,
Drain Screw: Regular Drain Screw,
Bypass Shroud: Unshrouded Bypass Needle,

K8998

HS Code: 8481 209010
Pre-order
Check availability Request a quote
VBP-16-11-V-MD-X4-L115
Volume Booster - 1" NPT, 20 Bar M.W.P,
Ratio: 1:1 ratio pilot pressure to valve pressure,
Seal Material: Viton -20°C to +180°C,
Drain Type: Manual Drain, Filter size: 40-50 Micron element,
Mounting Brackets: No Mounting Brackets,
Drain Screw: Regular Drain Screw,
Bypass Shroud: Unshrouded Bypass Needle,

K9884

HS Code: 8481 209010
Pre-order
Check availability Request a quote
VBP-16-11-V-MD-X4-L115-L116
VBP-16-11-V-MD-X4-L115-L116 - Model Code, Port: Volume Booster - 1 inch NPT - 20 Bar M.W.P, Ratio: 1:1 ratio pilot pressure to valve pressure, Seal Material: Viton -20°C to +180°C, Drain Type: Manual Drain, Filter size: 40-50 Micron element, Thread Form: NPT Thread Ports, Mounting Brackets: Less Mounting Brackets, Drain Screw: Knurled Drain Screw, Bypass Shroud: Unshrouded Bypass Needle, EAC stamping: N/A, Sour Gas Compatibility: No,
Pre-order
Check availability Request a quote
VBP-16-11-V-MD-X4-L129
VBP-16-11-V-MD-X4-L129 - Model Code, Port: Volume Booster - 1 inch NPT - 20 Bar M.W.P, Ratio: 1:1 ratio pilot pressure to valve pressure, Seal Material: Viton -20°C to +90°C, Drain Type: Manual Drain, Filter size: 40-50 Micron element, Thread Form: NPT Thread Ports, Mounting Brackets: Mounting Brackets, Drain Screw: Regular Drain Screw, Bypass Shroud: Shrouded Bypass Needle, EAC stamping: N/A, Sour Gas Compatibility: No,
Check availability Request a quote

Not sure which product you need?

Contact our technical sales advisors here.

Need a bespoke part?

Our team of engineers are fully equipped to provide bespoke system design and manufacture.

This process involves specifying, procuring, calibrating and maintaining instrumentation and control systems for industrial and commercial process control applications.

Call our technical sales team for advice

+44 (0) 151 343 9966
sales@finecontrols.com
helpdesk technician

Latest news

View all news
2 way solenoid valves

Ask the Expert

Burkert Solenoid Valve A guide to uses, features and types.

Ask the Expert

Valves for Hydrogen Applications – Ensuring Safe and Efficient Operations
shutterstock_2373911915

Ask the Expert

Hydrogen Embrittlement Explained | Prevent Failure with the Right Valves
shutterstock_2440843891

Ask the Expert

Your Hydrogen Valve Checklist

This site uses cookies to monitor site performance and provide a more responsive and personalised experience. You must agree to our use of certain cookies. For more information on how we use and manage cookies, please read our Privacy Policy.

Close Accept all & close
