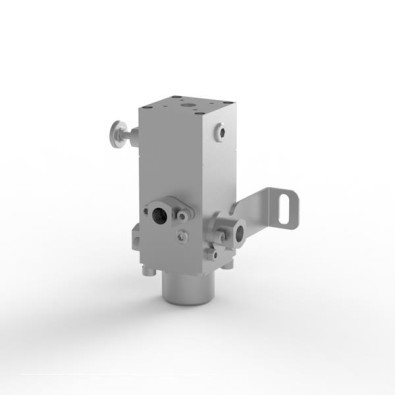

Bifold Model VBP-04 - Stainless Steel Volume Booster
Download Specification

Model Number: VBP-04

Request a quote View Prices
  • Volume Booster Function: Amplifies a pilot/control pressure signal into a higher-flow pneumatic output to improve actuator response
  • Moderate Flow Capacity: Designed for small to medium actuators requiring fast, accurate actuation
  • Working Pressure: Supports inlet pressures up to ~10–20 bar (model dependent)
  • Bifold (Balanced) Design: Ensures smooth pressure tracking and stable control with reduced hunting
  • Captive Exhaust Vent: Integrated exhaust eliminates the need for external vent piping
  • Independent Fill and Vent Control: Enables rapid pressurization and safe, controlled exhaust
  • Compact Port Sizes: Typically 1/4″ connections for moderate flow with a small footprint
  • Seal Material Options: Multiple elastomer choices (e.g., NBR, Viton) for temperature and media compatibility
  • Media Compatibility: Compressed air and compatible inert gases
  • Typical Use Cases: Pilot pressure boosting for small/medium actuators, control valves, and positioners
  • Robust Industrial Design: Built for frequent cycling and long service life in industrial environments
VBP-04-04-11-AL
VBP-04-04-11-AL - Model Code, Port: Volume Booster - 1/4" NPT - 20 Bar M.W.P, Ratio: 1:1 ratio pilot pressure to valve pressure, Seal Material: Fluorosilicone -60°C to +100°C, Drain Type: No filter, Filter size: No filter element, Mounting Brackets: Mounting Brackets, Drain Screw: N/A, Bypass Shroud: Unshrouded Bypass Needle,
Pre-order
Check availability Request a quote
VBP-04-04-11-V-L115
VBP-04-04-11-V-L115 - Model Code, Port: Volume Booster - 1/4" NPT - 20 Bar M.W.P, Ratio: 1:1 ratio pilot pressure to valve pressure, Seal Material: Viton -20°C to +180°C, Drain Type: No filter, Filter size: No filter element, Mounting Brackets: Less Mounting Brackets, Drain Screw: N/A, Bypass Shroud: Unshrouded Bypass Needle,
Pre-order
Check availability Request a quote
VBP-04-11-AL
VBP-04-11-AL - Model Code, Port: Volume Booster - 1/4 inch NPT - 20 Bar M.W.P, Ratio: 1:1 ratio pilot pressure to valve pressure, Seal Material: Fluorosilicone -60°C to +100°C, Drain Type: No filter, Filter size: No filter element, Mounting Brackets: Mounting Brackets, Drain Screw: N/A, Bypass Shroud: Unshrouded Bypass Needle,
Pre-order
Check availability Request a quote
VBP-04-11-AL-L115
VBP-04-11-AL-L115 - Model Code, Port: Volume Booster - 1/4 inch NPT - 20 Bar M.W.P, Ratio: 1:1 ratio pilot pressure to valve pressure, Seal Material: Fluorosilicone -60°C to +100°C, Drain Type: No filter, Filter size: No filter element, Mounting Brackets: Less Mounting Brackets, Drain Screw: N/A, Bypass Shroud: Unshrouded Bypass Needle,
Pre-order
Check availability Request a quote
VBP-04-11-AL-L115-L214
VBP-04-11-AL-L115-L214 - Model Code, Port: Volume Booster - 1/4 inch NPT - 20 Bar M.W.P, Ratio: 1:1 ratio pilot pressure to valve pressure, Seal Material: Fluorosilicone -60°C to +100°C, Drain Type: No Drain, Filter size: No filter element, Thread Form: NPT Thread Ports, Mounting Brackets: Less Mounting Brackets, Drain Screw: N/A, Bypass Shroud: Unshrouded Bypass Needle, EAC stamping: EAC Stamping, Sour Gas Compatibility: No,
Pre-order
Check availability Request a quote
VBP-04-11-AL-L214
VBP-04-11-AL-L214 - Model Code, Port: Volume Booster - 1/4 inch NPT - 20 Bar M.W.P, Ratio: 1:1 ratio pilot pressure to valve pressure, Seal Material: Fluorosilicone -60°C to +100°C, Drain Type: No filter, Filter size: No filter element, Mounting Brackets: Mounting Brackets, Drain Screw: N/A, Bypass Shroud: Unshrouded Bypass Needle, EAC Marking
Pre-order
Check availability Request a quote
VBP-04-11-AL-MD-X1-L115
VBP-04-11-AL-MD-X1-L115 - Model Code, Port: Volume Booster - 1/4 inch NPT - 20 Bar M.W.P, Ratio: 1:1 ratio pilot pressure to valve pressure, Seal Material: Fluorosilicone -60°C to +100°C, Drain Type: Manual Drain, Filter size: 5 Micron element, Mounting Brackets: Less Mounting Brackets, Drain Screw: Regular Drain Screw, Bypass Shroud: Unshrouded Bypass Needle,
Pre-order
Check availability Request a quote
VBP-04-11-AL-MD-X4
VBP-04-11-AL-MD-X4 - Model Code, Port: Volume Booster - 1/4" NPT - 20 Bar M.W.P, Ratio: 1:1 ratio pilot pressure to valve pressure, Seal Material: Fluorosilicone -60°C to +100°C, Drain Type: Manual Drain, Filter size: 40-50 Micron element, Mounting Brackets: Mounting Brackets, Drain Screw: Regular Drain Screw, Bypass Shroud: Unshrouded Bypass Needle,
Pre-order
Check availability Request a quote
VBP-04-11-AL-MD-X4-L115
VBP-04-11-AL-MD-X4-L115 - Model Code, Port: Volume Booster - 1/4 inch NPT - 20 Bar M.W.P, Ratio: 1:1 ratio pilot pressure to valve pressure, Seal Material: Fluorosilicone -60°C to +100°C, Drain Type: Manual Drain, Filter size: 40-50 Micron element, Thread Form: NPT Thread Ports, Mounting Brackets: Less Mounting Brackets, Drain Screw: Regular Drain Screw, Bypass Shroud: Unshrouded Bypass Needle, EAC stamping: N/A, Sour Gas Compatibility: No,
Pre-order
Check availability Request a quote
VBP-04-11-V
VBP-04-11-V - Model Code, Port: Volume Booster - 1/4 inch NPT - 20 Bar M.W.P, Ratio: 1:1 ratio pilot pressure to valve pressure, Seal Material: Viton -20°C to +180°C, Drain Type: No filter, Filter size: No filter element, Mounting Brackets: Mounting Brackets, Drain Screw: N/A, Bypass Shroud: Unshrouded Bypass Needle,
Pre-order
Check availability Request a quote
VBP-04-11-V-AD-X1
VBP-04-11-V-AD-X1 - Model Code, Port: Volume Booster - 1/4 inch NPT - 20 Bar M.W.P, Ratio: 1:1 ratio pilot pressure to valve pressure, Seal Material: Viton -20°C to +180°C, Drain Type: Auto Drain, Filter size: 5 Micron element, Thread Form: NPT Thread Ports, Mounting Brackets: Mounting Brackets, Drain Screw: N/A, Bypass Shroud: Unshrouded Bypass Needle, EAC stamping: N/A, Sour Gas Compatibility: No,
Pre-order
Check availability Request a quote
VBP-04-11-V-AD-X1-L115
VBP-04-11-V-AD-X1-L115 - Model Code, Port: Volume Booster - 1/4 inch NPT - 20 Bar M.W.P, Ratio: 1:1 ratio pilot pressure to valve pressure, Seal Material: Viton -20°C to +180°C, Drain Type: Auto Drain, Filter size: 5 Micron element, Mounting Brackets: Less Mounting Brackets, Drain Screw: N/A, Bypass Shroud: Unshrouded Bypass Needle,
Pre-order
Check availability Request a quote
VBP-04-11-V-AD-X4
VBP-04-11-V-AD-X4 - Model Code, Port: Volume Booster - 1/4 inch NPT - 20 Bar M.W.P, Ratio: 1:1 ratio pilot pressure to valve pressure, Seal Material: Viton -20°C to +90°C, Drain Type: Auto Drain, Filter size: 40-50 Micron element, Thread Form: NPT Thread Ports, Mounting Brackets: Mounting Brackets, Drain Screw: N/A, Bypass Shroud: Unshrouded Bypass Needle, EAC stamping: N/A, Sour Gas Compatibility: No,
Pre-order
Check availability Request a quote
VBP-04-11-V-H25
Volume Booster - 1/4" NPT, 20 Bar M.W.P,
Ratio: 1:1 ratio pilot pressure to valve pressure,
Seal Material: Viton -20°C to +180°C,
Drain Type: No filter, Filter size: No filter element,
Mounting Brackets: With Mounting Brackets,
Drain Screw: N/A,
Bypass Shroud: Unshrouded Bypass Needle,
NACE compliant

K17767

HS Code: 8481 209010
Pre-order
Check availability Request a quote
VBP-04-11-V-H2S
VBP-04-11-V-H2S - Model Code, Port: Volume Booster - 1/4 inch NPT - 20 Bar M.W.P, Ratio: 1:1 ratio pilot pressure to valve pressure, Seal Material: Viton -20°C to +180°C, Drain Type: No filter, Filter size: No filter element, Mounting Brackets: Mounting Brackets, Drain Screw: N/A, Bypass Shroud: Unshrouded Bypass Needle, NACE compliant
Check availability Request a quote
VBP-04-11-V-L115
VBP-04-11-V-L115 - Model Code, Port: Volume Booster - 1/4 inch NPT - 20 Bar M.W.P, Ratio: 1:1 ratio pilot pressure to valve pressure, Seal Material: Viton -20°C to +180°C, Drain Type: No filter, Filter size: No filter element, Mounting Brackets: Less Mounting Brackets, Drain Screw: N/A, Bypass Shroud: Unshrouded Bypass Needle,
Pre-order
Check availability Request a quote
VBP-04-11-V-L129
VBP-04-11-V-L129 - Model Code, Port: Volume Booster - 1/4 inch NPT - 20 Bar M.W.P, Ratio: 1:1 ratio pilot pressure to valve pressure, Seal Material: Viton -20°C to +180°C, Drain Type: No Drain, Filter size: No filter element, Thread Form: NPT Thread Ports, Mounting Brackets: Mounting Brackets, Drain Screw: N/A, Bypass Shroud: Shrouded Bypass Needle, EAC stamping: N/A, Sour Gas Compatibility: No,
Pre-order
Check availability Request a quote
VBP-04-11-V-MD-X1-L115
VBP-04-11-V-MD-X1-L115 - Model Code, Port: Volume Booster - 1/4 inch NPT - 20 Bar M.W.P, Ratio: 1:1 ratio pilot pressure to valve pressure, Seal Material: Viton -20°C to +180°C, Drain Type: Manual Drain, Filter size: 5 Micron element, Mounting Brackets: Less Mounting Brackets, Drain Screw: Regular Drain Screw, Bypass Shroud: Unshrouded Bypass Needle,
Pre-order
Check availability Request a quote
VBP-04-11-V-MD-X4
VBP-04-11-V-MD-X4 - Model Code, Port: Volume Booster - 1/4 inch NPT - 20 Bar M.W.P, Ratio: 1:1 ratio pilot pressure to valve pressure, Seal Material: Viton -20°C to +180°C, Drain Type: Manual Drain, Filter size: 40-50 Micron element, Thread Form: NPT Thread Ports, Mounting Brackets: Mounting Brackets, Drain Screw: Regular Drain Screw, Bypass Shroud: Unshrouded Bypass Needle, EAC stamping: N/A, Sour Gas Compatibility: No,
Pre-order
Check availability Request a quote
VBP-04-11-V-MD-X4-L115
VBP-04-11-V-MD-X4-L115 - Model Code, Port: Volume Booster - 1/4 inch NPT - 20 Bar M.W.P, Ratio: 1:1 ratio pilot pressure to valve pressure, Seal Material: Viton -20°C to +180°C, Drain Type: Manual Drain, Filter size: 40-50 Micron element, Mounting Brackets: Less Mounting Brackets, Drain Screw: Regular Drain Screw, Bypass Shroud: Unshrouded Bypass Needle,
Pre-order
Check availability Request a quote
