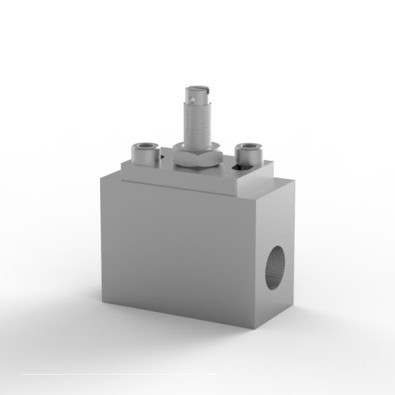

Bifold Model S06-CPV - Cylinder Plug Valve
Download Specification

Model Number: S06-CPV

Request a quote View Prices
  • Combined check and back‑pressure/pressure‑control function: Allows flow in one direction and maintains set pressure or back‑pressure in the reverse direction
  • Compact 1/4″ design: Suitable for panel or in‑line installation in pneumatic systems
  • Adjustable pressure setting: Fine pressure adjustment for control or back‑pressure regulation
  • Stainless steel construction: Typically 316 for corrosion resistance in harsh environments
  • Seal options: Elastomer choices (e.g., Viton) for broad temperature and media compatibility
  • Maximum working pressure: ~20 bar
  • Suitable media: Compressed air and compatible inert gases
  • Common applications: Pneumatic logic, return‑line pressure control, actuator bleed control, pressure sequence circuits
S06-CPV
S06-CPV - Service: Standard Service - Pneumatic: -20C to +180C, Pot Size: 1/4", Valve Configuration: Cylinder Plug Valve, Bi-Directional, Options: None,
Check availability Request a quote
S06-CPV-6MO
S06-CPV-6MO - Service: Standard Service - Pneumatic: -20°C to +180°C, Port Size: 1/4 inch, Valve Configuration: Cylinder Plug Valve Bi-Directional, 6MO material
Check availability Request a quote
S06-CPV-H2S
S06-CPV-H2S - Service: Standard Service - Pneumatic/Hydraulic: -20°C to +180°C, Port Size: 1/4 inch, Connections: Standard , Valve Configuration: Cylinder Plug Valve Bi-Directional, Options: None, Options: None, Wetted Material: Stainless Steel, EAC Mark: No, NACE MR-01-75 compliant internal wetted and body materials: Yes,
Check availability Request a quote
S06-CPV-K32
S06-CPV-K32 - Service: Standard Service - Pneumatic: -20C to +180C, Port Size: 1/4", Valve Configuration: Cylinder Plug Valve, Bi-Directional, Options: Anti Tamper Cap,
Check availability Request a quote
S06-CPV-K6
S06-CPV-K6 - Service: Standard Service - Pneumatic: -20°C to +180°C, Port Size: 1/4 inch, Connections: Standard , Valve Configuration: Cylinder Plug Valve Bi-Directional, Options: BSPP Ported, Options: None, Wetted Material: Stainless Steel, EAC Mark: No, NACE MR-01-75 compliant internal wetted and body materials: No,
Check availability Request a quote
S06-CPV-L214
S06-CPV-L214 - Service: Standard Service - Pneumatic: -20°C to +180°C, Port Size: 1/4 inch, Valve Configuration: Cylinder Plug Valve Bi-Directional,Options: EAC stamped
Check availability Request a quote
