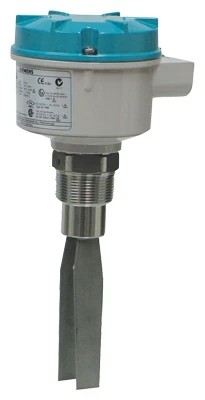

Siemens Milltronics Sitrans Lvs 100 - Vibrating Level Switch

Model Number: LVS 100

SITRANS LVS100 is a vibrating point level switch for bulk solids and detects high, low or demand levels of dry bulk solids in bins, silos or hoppers. SITRANS LVS100 has a compact design and can be top, side, or angle mounted. The vibrating fork design ensures the tines are kept clean. The unique design of the fork and crystal assembly eliminates false high-level readings even if tines become damaged. A signal from the electronic circuit excites a crystal in the probe causing the fork to vibrate. If the fork is covered by material, the change in vibration is detected by the electronic circuitry which causes the relay to change state after a one-second delay. When the fork is free from material pressure, full vibration resumes and the relay reverts to its normal condition.

  • Range: 170 mm to 2 m (6.7" to 6.5 ft)
  • Process Temperature: -40 to 150 °C (-40 to 302 °F)
  • Process Pressure: Up to 10 bar g (145 psi g)
