Siemens Instrumentation Sitrans Lu01 - Ultrasonic Level Controller- This Product Is Now Longer Available

Model Number: LU01

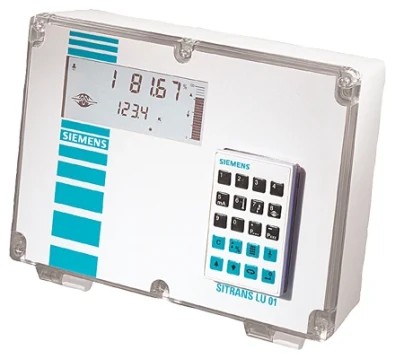

The SITRANS LU01 is an ultrasonic long-range level controller for liquids and solids in a single vessel up to 60 m (200 ft). The system consists of a SITRANS LU01 monitor linked to a non-contacting ultrasonic transducer that can be mounted up to 365 m (1200 ft) away. The SITRANS LU01 will measure distance, level or volume, and it features patented Sonic Intelligence® echo processing software for superior reliability. Readings are displayed in user-selectable linear engineering units on the backlit LCD. An on-board communications port automatically configures for RS-232, RS-485 or bi-polar current loop. The SITRANS LU01 will connect to a DCS or PLC using Siemens SmartLinx® interface modules, giving you remote 2-way communication and full parameter access. Modules for popular industrial buses can be factory installed or added later to meet changing needs. No external gateway is required, reducing hardware and cabling costs.

  • Single point, long-range level monitoring
  • Easy to install and easy to program using the removable infrared keypad (optional)
  • Compatible with all Echomax® transducers
  • A backlit LCD display with reading in standard engineering units
  • Automatic level-to-volume conversion for standard or custom tank shapes
  • Dolphin Plus and SmartLinx compatible
  • High/low alarms
