Model Number: LU240

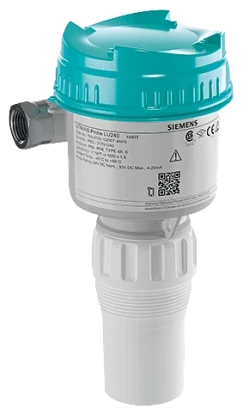

SITRANS Probe LU240 Ultrasonic Level Transmitter for level, volume and flow monitoring of liquids in storage vessels and simple process vessels, as well as in open channels. The SITRANS Probe LU240 is ideal for level monitoring in the water and wastewater industry and chemical storage vessels.


Measurements: distance, level, volume, and open channel flow

Process connections: 2” NPT, 2" BSPT, 2" G

Wetted parts: PVDF and optional ETFE sensors

Range: 6 meters or optional 12 meters

Accuracy: ±6mm

Communications/ outputs 4 to 20 mA HART 7

Approvals: ATEX, CSA, FM, INMETRO, KOSHA, EAC, IECEx , Nepsi , TIIS, DNV GL, Lloyds ,
