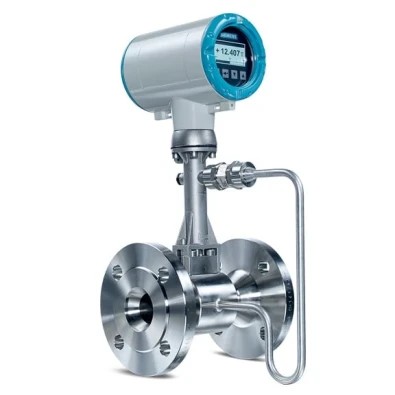

Siemens Danfoss Sitrans Fx330 - Vortex Flow Meter

Model Number: FX330

The SITRANS FX330 combines the proven advantages of the well-established sensor program with the latest modern transmitter technology. Also, the SITRANS FX330 is equipped with temperature compensation as standard for saturated steam applications. Upgrade it with the optional pressure sensor and the device turns into an all-rounder, combining flow, temperature and pressure measurement in one device. The vortex flowmeter product program consists of two types of flowmeters, a flange and a sandwich version.

Nominal size flanged version: From DN15  to DN300 (½”  to 12”)
Nominal size sandwich version:  From DN15  to DN100 (½”  to 4”)
Accuracy: Steam and gases: +/- 1%, Liquids: +/- 0.75%

Current output: 4 - 20 mA HART (loop powered)

Digital output: Pulse (max. 1000 Hz), frequency, status, limit switch

Communication: HART 7, Profibus PA and Foundation Fieldbus

Pressure rating: PN 10 – 100; Class 150 - 600

Medium temperature: From -40 to 240 °C (-40 to 464 °F)
