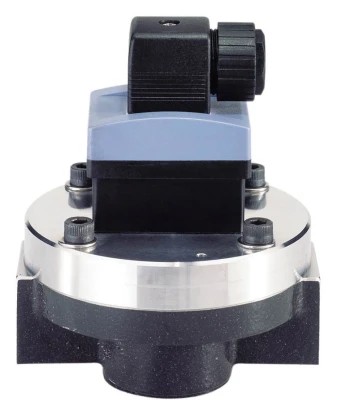

Burkert Type S070 - Positive Displacement Flow Fitting

Model Number: S070

This positive displacement fitting is specially designed for highly viscous fluids like glue, honey or oil. The connection to the electronic SE30, SE32, SE35 and SE35 batch with hall sensor is done with the “easy to connect” quarter-turn technique.

  • Threaded ½" up to 1 ½" (G or NPT)
  • Flanged 40mm or 50mm DIN 2501 PN16, Accuracy 1 ½" or 2" ANSI 150 LB
  • Accuracy ± 0.5% (of reading)
  • The material of wetted parts: Stainless Steel 316/1.4401, PPS, Hastalloy C
  • Max. viscosity: 1000 mPa (cP)
  • Enclosure IP66 (NEMA 6)
  • Fluid temperature (max) 120°C (248°F)
