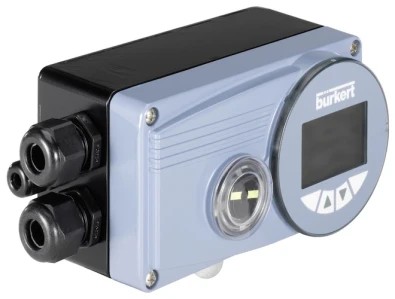

Burkert Type 8793 - Digital Electropnuematic Process Controller

Model Number: 8793

The robust and compact BURKERT TYPE 8793 process controller is designed to standardisation acc. to IEC 534-6 or VDI/VDE 3845 for assembly with linear and rotary actuators. Also, the remote version can be combined with B├╝rkert process control valves. The digital electro-pneumatic SideControl process controller can be operated by the usual current and voltage standard signals and can also be equipped with the Fieldbus interface PROFIBUS DPV1. Additional to the digital display the valve opening is signalled by a mechanical indicator element. The actual process value is directly supplied to the device as 4-20 mA, PT100 or as a frequency signal. The process controller calculates the position setpoint for the subordinated positioner through the variance comparison. Due to the analogue feedback, all analogue values on the controlling level can be transferred. The parameterisation of the process controller and positioner can be carried out automatically.

  • Compact metal housing
  • Graphic display with backlight
  • Easy start-up of process controller and positioner
  • A comprehensive range of additional software functions
  • Profibus DPV1 (optional)
  • Assembly acc. to IEC 534-6 / VDI VDE 38
