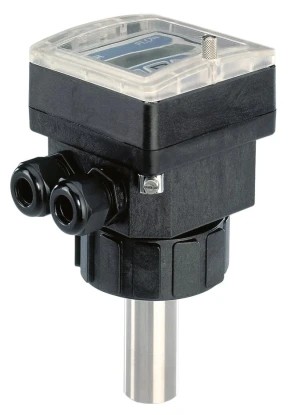

Burkert Type 8045 - Electromagnetic Flow Meter

Model Number: 8045

The Burkert Type 8045 Magmeter is an insertion flowmeter for pipe sizes DN15-DN400. Typical applications are liquids having a conductivity > 20 uS. With sensor bodies in Brass, st/st, PVDF, PVC and PP

  • Measuring range 0.05 - 10 m/s
  • Repeatability =/-0.25% o.R.
  • Display 8-digit LC-display
  • Fluid conductivity > 20 uS
  • Fluid temperature maximum 0 to 80°C
  • Sensor material Body in PVDF electrodes Stainless Steel


The 8045 Magmeter is an insertion flow meter for pipe sizes DN15-DN400. Typical applications are liquids having a conductivity > 20 uS. With sensor bodies in Brass, st/st, PVDF, PVC and PP
• Measuring range 0.05 - 10 m/s
• Repeatability =/-0.25% o.R.
• Display 8-digit LC-display
• Fluid conductivity > 20 uS
• Fluid temperature maximum 0 to 80°C
• Sensor material Body in PVDF electrodes Stainless Steel



The 8045 Magmeter is an insertion flow meter for pipe sizes DN15-DN400. Typical applications are liquids having a conductivity > 20 uS. With sensor bodies in Brass, st/st, PVDF, PVC and PP
• Measuring range 0.05 - 10 m/s
• Repeatability =/-0.25% o.R.
• Display 8-digit LC-display
• Fluid conductivity > 20 uS
• Fluid temperature maximum 0 to 80°C
• Sensor material Body in PVDF electrodes Stainless Steel


£963.00 (ex VAT)

£1,155.60 (inc VAT)
