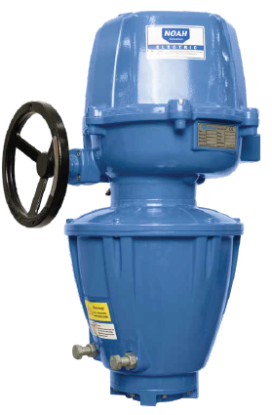

Rotork Actuator - Noah SR03
Download Specification

Model Number: Noah SR03

Request a quote

Key Features

  • Spring-return fail-safe actuator (returns to safe position on power loss)
  • Designed for quarter-turn valve applications
  • Watertight enclosure rated IP67, optional IP68
  • Optional explosion-proof (hazardous area) versions
  • Corrosion-resistant aluminium housing with TGIC-free polyester coating
  • Self-locking gear mechanism to prevent reverse rotation
  • Manual override with lockable handwheel for emergency operation
  • Thermal motor protection
  • Internal heater to prevent condensation
  • Mechanical limit switches for accurate valve position control
  • Speed control during spring return to reduce shock
  • ISO 5211 mounting standard for valve compatibility
  • Manual/automatic switching lever
  • Optional modules:Local Control Unit (LCU)
  • Proportional Control Unit (PCU)
  • Current Position Transmitter (CPT)
  • Emergency Action Unit (EAU)
  • Supports industrial communication protocols: Modbus / Profibus / Foundation Fieldbus / HART
  • Rated for up to ~500 Nm torque range (series dependent)

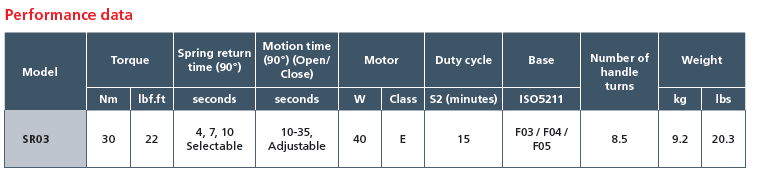

  • Supports AC/DC power supply optionsSR03 PD
