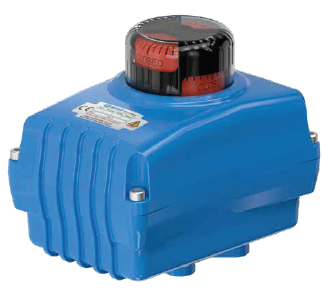

Rotork Actuator - Noah SA005 Compact Part Turn Electric Actuators
Download Specification

Model Number: SA005

Request a quote

Key Features

  • Waterproof rating: IP67 (weatherproof enclosure)
  • Operating temperature range: -20°C to +70°C
  • Power supply: 110 / 220 VAC, 50/60 Hz / 24 V AC/DC options
  • Indicator: Dome-type position indicator with built-in LED
  • Limit switch: 2 × Open + 2 × Close (mechanical contacts, 250 VAC rated)
  • Travel angle: 0° to 90° (quarter-turn)
  • Manual override: Hex wrench operation (manual emergency operation)
  • Cable entries:Standard PF ½" / Optional M20 × 1.5 or NPT ½"
  • Heater: 2 × 3 W internal anti-condensation heater
  • Case material: Aluminium alloy housing
  • Lubricant: Shell Gadus S2 V220 2 grease
  • Surface treatment: Anodised corrosion protection
  • Standard paint finish: TGIC-free polyester powder coating

Performance Data

  • Torque output: up to 60 Nm (varies by configuration)
  • Rotation: 0° to 90° quarter-turn operation
  • Operating time (90°): 50 Hz: ~17–20 seconds
  • 60 Hz: ~14–17 seconds
  • Motor rating: approx. 25 W class motor
  • Duty cycle: S2 – 15 minutes
  • Supply voltage options: 24 V AC/DC 110 V AC / 220 V AC
  • Current consumption (approx.): 24 V: ~1.0 A / 110 V: ~0.4 A / 220 V: ~0.16 A
  • Manual override turns: similar to SA003 family (~7–8 turns typical)
