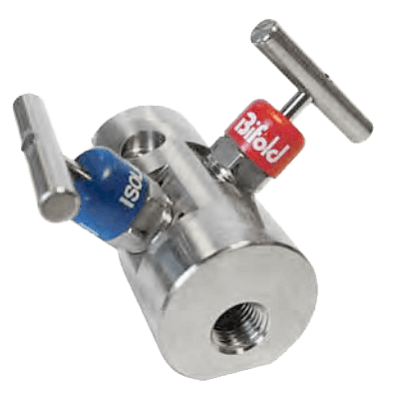

Bifold Model NV04 - Needle Valve / Compact Block & Bleed Manifolds

Free UK Shipping over £100

Fast Shipping

Worldwide Shipping

Technical Sales Team

{"ga_data":{"item_list_id":761,"item_list_name":"Bifold Model NV04 - Needle Valve \/ Compact Block & Bleed Manifolds NV04","items":[{"item_name":"Bifold Model NV04 - Needle Valve \/ Compact Block & Bleed Manifolds - (NV0404F02M5S10K)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model NV04 - Needle Valve \/ Compact Block & Bleed Manifolds - (NV0404F02M5S6K)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model NV04 - Needle Valve \/ Compact Block & Bleed Manifolds - (NV0404F02M5SI1K-L214)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model NV04 - Needle Valve \/ Compact Block & Bleed Manifolds - (NV0404F02M5V10K)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model NV04 - Needle Valve \/ Compact Block & Bleed Manifolds - (NV0404F02M5V10KLK)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model NV04 - Needle Valve \/ Compact Block & Bleed Manifolds - (NV0404F02M5V6K)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model NV04 - Needle Valve \/ Compact Block & Bleed Manifolds - (NV0404F02M5V6K-H)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model NV04 - Needle Valve \/ Compact Block & Bleed Manifolds - (NV0404F02M5V6K-NT)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model NV04 - Needle Valve \/ Compact Block & Bleed Manifolds - (NV0404F02M5V910K)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model NV04 - Needle Valve \/ Compact Block & Bleed Manifolds - (NV0404F02M5V96K)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model NV04 - Needle Valve \/ Compact Block & Bleed Manifolds - (NV0404F26MT5V6K)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model NV04 - Needle Valve \/ Compact Block & Bleed Manifolds - (NV0404F50MT5V6K)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model NV04 - Needle Valve \/ Compact Block & Bleed Manifolds - (NV0404F50MT5V6KLKAVPV-NT)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model NV04 - Needle Valve \/ Compact Block & Bleed Manifolds - (NV0404FK602M5V6K)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model NV04 - Needle Valve \/ Compact Block & Bleed Manifolds - (NV0404FMP02M3V13K)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model NV04 - Needle Valve \/ Compact Block & Bleed Manifolds - (NV0404FMP02MT3V13K)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model NV04 - Needle Valve \/ Compact Block & Bleed Manifolds - (NV0404FMP02MT3V15K)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model NV04 - Needle Valve \/ Compact Block & Bleed Manifolds - (NV0404FMP04F02MT3V13K)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model NV04 - Needle Valve \/ Compact Block & Bleed Manifolds - (NV0406F04F02M5V6K)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model NV04 - Needle Valve \/ Compact Block & Bleed Manifolds - (NV0406FMP04F14540-0302M5V10K)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model NV04 - Needle Valve \/ Compact Block & Bleed Manifolds - (NV0406FMP04F14540-0302M5V6K)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model NV04 - Needle Valve \/ Compact Block & Bleed Manifolds - (NV0408F04F02M5E96KPV)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model NV04 - Needle Valve \/ Compact Block & Bleed Manifolds - (NV0408F04F02M5S6K)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model NV04 - Needle Valve \/ Compact Block & Bleed Manifolds - (NV0408F04F02M5S6KLK)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model NV04 - Needle Valve \/ Compact Block & Bleed Manifolds - (NV0408F04F02M5V10K)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model NV04 - Needle Valve \/ Compact Block & Bleed Manifolds - (NV0408F04F02M5V6K)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model NV04 - Needle Valve \/ Compact Block & Bleed Manifolds - (NV0408F04F02M5V96K)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model NV04 - Needle Valve \/ Compact Block & Bleed Manifolds - (NV0408F04F02MT5V10KFS)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model NV04 - Needle Valve \/ Compact Block & Bleed Manifolds - (NV0408F04F02MT5V6K)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model NV04 - Needle Valve \/ Compact Block & Bleed Manifolds - (NV0408F04F02MT5V6K-NT)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model NV04 - Needle Valve \/ Compact Block & Bleed Manifolds - (NV0408F04F02MT5V6KFS)","price":"0.00","quantity":1,"item_brand":"Bifold"},{"item_name":"Bifold Model NV04 - Needle Valve \/ Compact Block & Bleed Manifolds - (NV04S-FP15-02M5V6K)","price":"0.00","quantity":1,"item_brand":"Bifold"}]}}

Model Number: NV04

Request a quote View Prices

Type: Needle Valve / Compact Block & Bleed Manifold
Connections: Standard NPT threaded ports (female or male/female, depending on model)
Material: UNS S31600 / S31603 stainless steel for corrosion resistance and durability
Tip Style: Metal ball for positive shut-off
Bore Size: Typically 3 mm or 5 mm for precise flow control
Seals: Viton® elastomer (-20°C to +180°C) or compatible elastomers
Pressure Rating: Up to 6,000 psi (414 bar) maximum cold working pressure
Applications: Instrumentation panels, hydraulic systems, process control, and high-pressure fluid lines

Part Number

Description

Price

Quantity

NV0404F02M5S10K

NV0404F02M5S10K - Model Code: Block and Bleed Manifold, Nominal Pipe Size: 1/4 inch, Connection Type: Female NPT, Vent Connection: 1/4 inch Female NPT, Material: UNS S31600 / S31603 Stainless Steel, Tip Style: Metal Ball, Bore Size: 5mm Bore, Seal Arrangement: Nitrile Elastomer, Pressure Rating: 10 000 psi / 690 bar Maximum Cold Working Pressure, Handle: Standard Handle, Anti Tamper Vent: Standard Vent, Plugged Vent: Open Vent, FAT: Standard FAT, Option: None,

Check availability Request a quote

NV0404F02M5S6K

NV0404F02M5S6K - Model Code: Block and Bleed Manifold, Nominal Pipe Size: 1/4 inch, Connection Type: Female NPT, Vent Connection: 1/4 inch Female NPT, Material: UNS S31600 / S31603 Stainless Steel, Tip Style: Metal Ball, Bore Size: 5mm Bore, Seal Arrangement: Nitrile Elastomer, Pressure Rating: 6 000 psi / 414 bar Maximum Cold Working Pressure, Handle: Standard Handle, Anti Tamper Vent: Standard Vent, Plugged Vent: Open Vent, FAT: Standard FAT, Option: None,

Check availability Request a quote

NV0404F02M5SI1K-L214

NV0404F02M5SI1K-L214 - Valve type; 2 valve block and bleed gauge/instrument manifold, Nominal pipe size; 1/4", Connection type; Female inlet, female outlet (NPT unless stated otherwise), Material; UNS S31600/S31603 Stainless steel, Tip style; Metal ball, Bore size; 5mm, Seal arrangement; -60 / +100, 1000 psi - EAC stamped

Check availability Request a quote

NV0404F02M5V10K

NV0404F02M5V10K - Model Code: Block and Bleed Manifold, Nominal Pipe Size: 1/4", Connection Type: Female NPT, Vent Connection: 1/4 Female NPT, Material: UNS S31600 / S31603 Stainless Steel, Tip Style: Metal Ball, Bore Size: 5mm Bore, Seal Arrangement: Viton Elastomer -20°C to +180°C, Pressure Rating: 10,000 psi / 690 bar Maximum Cold Working Pressure, Handle: Standard Handle, Anti Tamper Vent: Standard Vent, Plugged Vent: Open Vent, FAT: Standard FAT,

Check availability Request a quote

NV0404F02M5V10KLK

NV0404F02M5V10KLK - Model Code: Block and Bleed Manifold, Nominal Pipe Size: 1/4 inch, Connection Type: Female NPT, Vent Connection: 1/4 inch Female NPT, Material: UNS S31600 / S31603 Stainless Steel, Tip Style: Metal Ball, Bore Size: 5mm Bore, Seal Arrangement: Viton Elastomer, Pressure Rating: 10 000 psi / 690 bar Maximum Cold Working Pressure, Handle: Lockable T-Bar, Anti Tamper Vent: Standard Vent, Plugged Vent: Open Vent, FAT: Standard FAT, Option: None,

Check availability Request a quote

NV0404F02M5V6K

NV0404F02M5V6K - Model Code: Block and Bleed Manifold, Nominal Pipe Size: 1/4", Connection Type: Female NPT, Vent Connection: 1/4 Female NPT, Material: UNS S31600 / S31603 Stainless Steel, Tip Style: Metal Ball, Bore Size: 5mm Bore, Seal Arrangement: Viton Elastomer, Pressure Rating: 6,000 psi / 414 bar Maximum Cold Working Pressure, Handle: Standard Handle, Anti Tamper Vent: Standard Vent, Plugged Vent: Open Vent, FAT: Standard FAT,

Check availability Request a quote

NV0404F02M5V6K-H

NV0404F02M5V6K-H - Model Code: Block and Bleed Manifold, Nominal Pipe Size: 1/4 inch, Connection Type: Female NPT, Vent Connection: 1/4 inch Female NPT, Material: UNS S31600 / S31603 Stainless Steel, Tip Style: Metal Ball, Bore Size: 5mm Bore, Seal Arrangement: Viton Elastomer, Pressure Rating: 6 000 psi / 414 bar Maximum Cold Working Pressure, Handle: Standard Handle, Anti Tamper Vent: Standard Vent, Plugged Vent: Open Vent, FAT: Standard FAT, Option: None, HALAND HANDLE

Check availability Request a quote

NV0404F02M5V6K-NT

NV0404F02M5V6K-NT - Valve type; 2 valve block and bleed gauge/instrument manifold, Nominal pipe size; 1/4", Connection type; Female inlet, female outlet (NPT unless stated otherwise), Material; UNS S31600/S31603 Stainless steel, Tip style; Metal ball, Bore size; 5mm, Seal arrangement; Viton elastomer (-20°C to +180°C), Pressure rating; 6000psi (414 Bar) Maximum cold working pressure, Options; Gas service / Nitrogen test

Check availability Request a quote

NV0404F02M5V910K

NV0404F02M5V910K - Model Code: Block and Bleed Manifold, Nominal Pipe Size: 1/4 inch, Connection Type: Female NPT, Vent Connection: 1/4 inch Female NPT, Material: UNS S31600 / S31603 Stainless Steel, Tip Style: Metal Ball, Bore Size: 5mm Bore, Seal Arrangement: V91A Elastomer, Pressure Rating: 10 000 psi / 690 bar Maximum Cold Working Pressure, Handle: Standard Handle, Anti Tamper Vent: Standard Vent, Plugged Vent: Open Vent, FAT: Standard FAT, Option: None,

Check availability Request a quote

NV0404F02M5V96K

NV0404F02M5V96K - Model Code: Block and Bleed Manifold, Nominal Pipe Size: 1/4 inch, Connection Type: Female NPT, Vent Connection: 1/4 inch Female NPT, Material: UNS S31600 / S31603 Stainless Steel, Tip Style: Metal Ball, Bore Size: 5mm Bore, Seal Arrangement: V91A Elastomer, Pressure Rating: 6 000 psi / 414 bar Maximum Cold Working Pressure, Handle: Standard Handle, Anti Tamper Vent: Standard Vent, Plugged Vent: Open Vent, FAT: Standard FAT, Option: None,

Check availability Request a quote

NV0404F26MT5V6K

NV0404F26MT5V6K - Model Code: Block and Bleed Manifold, Nominal Pipe Size: 1/4", Connection Type: Female NPT, Vent Connection: 1/4 Female NPT, Material: F51 / UNS S31803 Duplex, Tip Style: Metal Tip, Bore Size: 5mm Bore, Seal Arrangement: Viton Elastomer, Pressure Rating: 6,000 psi / 414 bar Maximum Cold Working Pressure, Handle: Standard Handle, Anti Tamper Vent: Standard Vent, Plugged Vent: Open Vent, FAT: Standard FAT,

Check availability Request a quote

NV0404F50MT5V6K

NV0404F50MT5V6K - Model Code: Block and Bleed Manifold, Nominal Pipe Size: 1/4 inch, Connection Type: Female NPT, Vent Connection: 1/4 inch Female NPT, Material: Hastelloy C-276 , Tip Style: Metal Ball, Bore Size: 5mm Bore, Seal Arrangement: Viton Elastomer, Pressure Rating: 6 000 psi / 414 bar Maximum Cold Working Pressure, Handle: Standard Handle, Anti Tamper Vent: Standard Vent, Plugged Vent: Open Vent, FAT: Standard FAT, Option: None,

Check availability Request a quote

NV0404F50MT5V6KLKAVPV-NT

NV0404F50MT5V6KLKAVPV-NT - Model Code: Block & Bleed Manifold, Nominal Pipe Size: 1/4 inch, Connection Type: Female NPT, Vent Connection: 1/4 inch Female NPT, Material: Hastelloy C-276, Tip Style: Metal tip, Bore Size: 5mm Bore, Seal Arrangement: Viton Elastomer, Pressure Rating: 6 000 psi / 414 bar Maximum Cold Working Pressure, Handle: Lockable T-Bar, Anti Tamper Vent: Standard Vent, Plugged Vent: Open Vent, FAT: Standard FAT, Plugged Vent, nitrogen test

Check availability Request a quote

NV0404FK602M5V6K

NV0404FK602M5V6K - Model Code: Block and Bleed Manifold, Nominal Pipe Size: 1/4 inch, Connection Type: Female BSPP, Vent Connection: 1/4 inch Female BSPP, Material: UNS S31600 / S31603 Stainless Steel, Tip Style: Metal Ball, Bore Size: 5mm Bore, Seal Arrangement: Viton Elastomer, Pressure Rating: 6 000 psi / 414 bar Maximum Cold Working Pressure, Handle: Standard Handle, Anti Tamper Vent: Standard Vent, Plugged Vent: Open Vent, FAT: Standard FAT, Option: None,

Check availability Request a quote

NV0404FMP02M3V13K

NV0404FMP02M3V13K - Valve type; 2 valve block and bleed gauge/instrument manifold, Nominal pipe size; 1/4", Connection type; Female medium pressure, Material; UNS S31600/S31603 Stainless steel, Tip style; Metal ball, Vent connection; 1/4" NPT female, Bore size; 3mm, Seal arrangement; Viton elastomer (-20°C to +180°C), Pressure rating; 13000psi (897 bar) Maximum cold working pressure

Check availability Request a quote

NV0404FMP02MT3V13K

NV0404FMP02MT3V13K - Valve type; 2 valve block and bleed gauge/instrument manifold, Nominal pipe size; 1/4", Connection type; Female medium pressure, Material; UNS S31600/S31603 Stainless steel, Tip style; Metal tip, Vent connection; 1/4" NPT female, Bore size; 3mm, Seal arrangement; Viton elastomer (-20°C to +180°C), Pressure rating; 13000psi (897 bar) Maximum cold working pressure

Check availability Request a quote

NV0404FMP02MT3V15K

NV0404FMP02MT3V15K - NV04 - SINGLE BLOCK & BLEED N/N 04FMP - 1/4MP INLET/OUT/VENT 02 - 316SS MT - METAL CONE TIP 3 - 3MM BORE V - VITON SEALS 15K - 15000psi RATED

Check availability Request a quote

NV0404FMP04F02MT3V13K

NV0404FMP04F02MT3V13K - Valve type; 2 valve block and bleed gauge/instrument manifold, Nominal pipe size; 1/4", Connection type; Female medium pressure, Vent connection; 1/4" NPT female, Material; UNS S31600/S31603 Stainless steel, Tip style; Metal, Bore size; 3mm, Seal arrangement; Viton elastomer (-20°C to +180°C), Pressure rating; 13000psi (897 bar) Maximum cold working pressure

Check availability Request a quote

NV0406F04F02M5V6K

NV0406F04F02M5V6K - Model Code: Block and Bleed Manifold Nominal Pipe Size: 3/8 inch Connection Type: Female NPT Vent Connection: 1/4 inch Female NPT Material: UNS S31600 / S31603 Stainless Steel Tip Style: Metal Ball Bore Size: 5mm Bore Seal Arrangement: Viton Elastomer Pressure Rating: 6 000 psi / 414 bar Maximum Cold Working Pressure Handle: Standard Handle Anti Tamper Vent: Standard Vent Plugged Vent: Open Vent FAT: Standard FAT Option: None

Check availability Request a quote

NV0406FMP04F14540-0302M5V10K

NV0406FMP04F14540-0302M5V10K - 5MM BORE NV04 BLOCK AND BLEED VALVE C/W 14540 (569 BAR) CAPSULE RELIEF. B/N. 316 STST 3/8MP INLET AND OUTLET 1/4 NPT VENT / RELIEF NV0406FMP04F14540-0302M5V10K(569) 569 BAR RELIEF PRESSURE

Check availability Request a quote

NV0406FMP04F14540-0302M5V6K

NV0406FMP04F14540-0302M5V6K - 5MM BORE NV04 BLOCK AND BLEED VALVE C/W 14540 (414 BAR) CAPSULE RELIEF. B/N. 316 STST 3/8MP INLET AND OUTLET 1/4 NPT VENT / RELIEF NV0406FMP04F14540-0302M5V6K 414 BAR RELIEF PRESSURE (FACTORY SET)

Check availability Request a quote

NV0408F04F02M5E96KPV

NV0408F04F02M5E96KPV - NV04 : Block & Bleed Needle Valve Manifold 08 : Nominal Pipe Size ½" F : Connection Type Female NPT 04F : Vent Connection ¼" Female NPT 02 : Material UNS S31600 / S31603 Stainless Steel (Standard) M : Tip Style Metal Ball 5 : Bore Size 5mm E9 : Seal Arrangement E985 6K : Pressure Rating 6,000 psi / 414 bar Maximum Cold Working Pressure PV : Vent Outlet Options Plugged Vent RANGE TEMPERATURE : -46°C / +160°C

Check availability Request a quote

NV0408F04F02M5S6K

NV0408F04F02M5S6K - Model Code: Block and Bleed Manifold, Nominal Pipe Size: 1/2 inch, Connection Type: Female NPT, Vent Connection: 1/4 inch Female NPT, Material: UNS S31600 / S31603 Stainless Steel, Tip Style: Metal Ball, Bore Size: 5mm Bore, Seal Arrangement: Nitrile Elastomer, Pressure Rating: 6 000 psi / 414 bar Maximum Cold Working Pressure, Handle: Standard Handle, Anti Tamper Vent: Standard Vent, Plugged Vent: Open Vent, FAT: Standard FAT, Option: None,

Check availability Request a quote

NV0408F04F02M5S6KLK

NV0408F04F02M5S6KLK - Model Code: Block and Bleed Manifold, Nominal Pipe Size: 1/2 inch, Connection Type: Female NPT, Vent Connection: 1/4 inch Female NPT, Material: UNS S31600 / S31603 Stainless Steel, Tip Style: Metal Ball, Bore Size: 5mm Bore, Seal Arrangement: Nitrile Elastomer, Pressure Rating: 6 000 psi / 414 bar Maximum Cold Working Pressure, Handle: Lockable T-Bar, Anti Tamper Vent: Standard Vent, Plugged Vent: Open Vent, FAT: Standard FAT, Option: None,

Check availability Request a quote

NV0408F04F02M5V10K

NV0408F04F02M5V10K - Model Code: Block and Bleed Manifold, Nominal Pipe Size: 1/2 inch, Connection Type: Female NPT, Vent Connection: 1/4 inch Female NPT, Material: UNS S31600 / S31603 Stainless Steel, Tip Style: Metal Ball, Bore Size: 5mm Bore, Seal Arrangement: Viton Elastomer, Pressure Rating: 10 000 psi / 690 bar Maximum Cold Working Pressure, Handle: Standard Handle, Anti Tamper Vent: Standard Vent, Plugged Vent: Open Vent, FAT: Standard FAT, Option: None,

Check availability Request a quote

NV0408F04F02M5V6K

NV0408F04F02M5V6K - Model Code: Block and Bleed Manifold, Nominal Pipe Size: 1/2 inch, Connection Type: Female NPT, Vent Connection: 1/4 inch Female NPT, Material: UNS S31600 / S31603 Stainless Steel, Tip Style: Metal Ball, Bore Size: 5mm Bore, Seal Arrangement: Viton Elastomer, Pressure Rating: 6 000 psi / 414 bar Maximum Cold Working Pressure, Handle: Standard Handle, Anti Tamper Vent: Standard Vent, Plugged Vent: Open Vent, FAT: Standard FAT, Option: None,

Check availability Request a quote

NV0408F04F02M5V96K

NV0408F04F02M5V96K - Model Code: Block and Bleed Manifold, Nominal Pipe Size: 1/2 inch, Connection Type: Female NPT, Vent Connection: 1/4 inch Female NPT, Material: UNS S31600 / S31603 Stainless Steel, Tip Style: Metal Ball, Bore Size: 5mm Bore, Seal Arrangement: V91A Elastomer, Pressure Rating: 6 000 psi / 414 bar Maximum Cold Working Pressure, Handle: Standard Handle, Anti Tamper Vent: Standard Vent, Plugged Vent: Open Vent, FAT: Standard FAT, Option: None,

Check availability Request a quote

NV0408F04F02MT5V10KFS

NV0408F04F02MT5V10KFS - Model Code: Block and Bleed Manifold, Nominal Pipe Size: 1/2 inch, Connection Type: Female NPT, Vent Connection: 1/4 inch Female NPT, Material: UNS S31600 / S31603 Stainless Steel, Tip Style: Metal Tip, Bore Size: 5mm Bore, Seal Arrangement: Viton Elastomer, Pressure Rating: 10 000 psi / 690 bar Maximum Cold Working Pressure, Handle: Standard Handle, Anti Tamper Vent: Standard Vent, Plugged Vent: Open Vent, FAT: Standard FAT, Option: None, Fire Safe

Check availability Request a quote

NV0408F04F02MT5V6K

NV0408F04F02MT5V6K - Model Code: Block and Bleed Manifold, Nominal Pipe Size: 1/2 inch, Connection Type: Female NPT, Vent Connection: 1/4 inch Female NPT, Material: UNS S31600 / S31603 Stainless Steel, Tip Style: Metal Tip, Bore Size: 5mm Bore, Seal Arrangement: Viton Elastomer, Pressure Rating: 6 000 psi / 414 bar Maximum Cold Working Pressure, Handle: Standard Handle, Anti Tamper Vent: Standard Vent, Plugged Vent: Open Vent, FAT: Standard FAT, Option: None,

Check availability Request a quote

NV0408F04F02MT5V6K-NT

NV0408F04F02MT5V6K-NT - Model Code: Block and Bleed Manifold, Nominal Pipe Size: 1/2 inch, Connection Type: Female NPT, Vent Connection: 1/4 inch Female NPT, Material: UNS S31600 / S31603 Stainless Steel, Tip Style: Metal Tip, Bore Size: 5mm Bore, Seal Arrangement: Viton Elastomer, Pressure Rating: 6 000 psi / 414 bar Maximum Cold Working Pressure, Handle: Standard Handle, Anti Tamper Vent: Standard Vent, Plugged Vent: Open Vent, FAT: Gas Service / Nitrogen Test, Option: None,

Check availability Request a quote

NV0408F04F02MT5V6KFS

NV0408F04F02MT5V6KFS - Model Code: Block and Bleed Manifold, Nominal Pipe Size: 1/2 inch, Connection Type: Female NPT, Vent Connection: 1/4 inch Female NPT, Material: UNS S31600 / S31603 Stainless Steel, Tip Style: Metal Tip, Bore Size: 5mm Bore, Seal Arrangement: Viton Elastomer, Pressure Rating: 6 000 psi / 414 bar Maximum Cold Working Pressure, Handle: Standard Handle, Anti Tamper Vent: Standard Vent, Plugged Vent: Open Vent, FAT: Standard FAT, Option: Fire Safe,

Check availability Request a quote

NV04S-FP15-02M5V6K

NV04S-FP15-02M5V6K - Pressure Supply Block & Bleed Module. Rated 345 Bar Wp. Suitable For Use With 3/2 And 4/2 Valves. Materials:- Body: 316S11 Internals: 316S11/31 Seals: Nitrile / Ptfe

Check availability Request a quote
