Part Number
Description
Price
Quantity

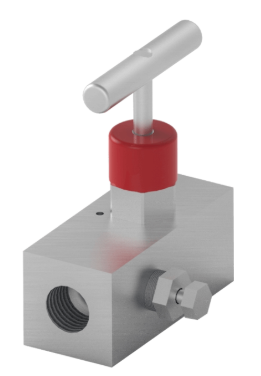

NV0304F02M5S6K - Model Code: Block & Bleed Manifold, Nominal Pipe Size: 1/4 inch, Connection Type: Female NPT, Material: UNS S31600 / S31603 Stainless Steel, Tip Style: Metal Ball, Bore Size: 5mm, Seal Arrangement: Nitrile Elastomer, Pressure Rating: 6 000 psi / 414 bar Maximum Cold Working Pressure, Handle: Standard Handle, FAT: Standard FAT,
NV0304F02M5V10K - Model Code: Block & Bleed Manifold, Nominal Pipe Size: 1/4 inch, Connection Type: Female NPT, Material: UNS S31600 / S31603 Stainless Steel, Tip Style: Metal Ball, Bore Size: 5mm, Seal Arrangement: Viton Elastomer, Pressure Rating: 10 000 psi / 690 bar Maximum Cold Working Pressure, Handle: Standard Handle, FAT: Standard FAT,
NV0304F02M5V6K - Model Code: Block & Bleed Manifold, Nominal Pipe Size: 1/4 inch, Connection Type: Female NPT, Material: UNS S31600 / S31603 Stainless Steel, Tip Style: Metal Ball, Bore Size: 5mm, Seal Arrangement: Viton Elastomer, Pressure Rating: 6 000 psi / 414 bar Maximum Cold Working Pressure, Handle: Standard Handle, FAT: Standard FAT,
NV0304F02M5V910K - Model Code: Block & Bleed Manifold, Nominal Pipe Size: 1/4 inch, Connection Type: Female NPT, Material: UNS S31600 / S31603 Stainless Steel, Tip Style: Metal Ball, Bore Size: 5mm, Seal Arrangement: V91A Elastomer, Pressure Rating: 10 000 psi / 690 bar Maximum Cold Working Pressure, Handle: Standard Handle, FAT: Standard FAT,
NV0304F02M5V96K - Model Code: Block & Bleed Manifold, Nominal Pipe Size: 1/4 inch, Connection Type: Female NPT, Material: UNS S31600 / S31603 Stainless Steel, Tip Style: Metal Ball, Bore Size: 5mm, Seal Arrangement: V91A Elastomer, Pressure Rating: 6 000 psi / 414 bar Maximum Cold Working Pressure, Handle: Standard Handle, FAT: Standard FAT,
NV0304F50MT5V96KLKHW - Model Code: Block & Bleed Manifold, Nominal Pipe Size: 1/4 inch, Connection Type: Female NPT, Material: Hasteloy, Tip Style: Metal Ball, Bore Size: 5mm, Seal Arrangement:low temperature, Pressure Rating: 6 000 psi / 414 bar Maximum Cold Working Pressure, Handle: Lockable hand wheel, FAT: Standard FAT,
NV0304MF02M5SI1K-TV~R - Valve type; Single isolate valve block and captive vent plug bleed
gauge/instrument manifold, Nominal pipe size; 1/4", Connection type; Male
inlet, female outlet (NPT unless stated otherwise), Material; UNS
S31600/S31603 Stainless steel, Tip style; Metal ball, Bore size; 5mm, Seal
arrangement; Phenyl Silicone Elastomer (-60 degC to +100 degC), Pressure rating;
1000psi (69 Bar) Maximum cold working pressure, Tommy bar on bleed.
NV0304MF02M5V6K - Valve type; Single isolate valve block and captive vent plug bleed gauge/instrument manifold, Nominal pipe size; 1/4", Connection type; Male inlet, female outlet (NPT unless stated otherwise), Material; UNS S31600/S31603 Stainless steel, Tip style; Metal ball, Bore size; 5mm, Seal arrangement; Viton elastomer (-20°C to +180°C), Pressure rating; 6000psi (414 Bar) Maximum cold working pressure
NV0306F02M5V6K - Model Code: Block & Bleed Manifold, Nominal Pipe Size: 3/8inch, Connection Type: Female NPT, Material: UNS S31600 / S31603 Stainless Steel, Tip Style: Metal Ball, Bore Size: 5mm, Seal Arrangement: Viton Elastomer, Pressure Rating: 6 000 psi / 414 bar Maximum Cold Working Pressure, Handle: Standard Handle, FAT: Standard FAT,
NV0308F02M5V10K - Model Code: Block & Bleed Manifold, Nominal Pipe Size: 1/2 inch, Connection Type: Female NPT, Material: UNS S31600 / S31603 Stainless Steel, Tip Style: Metal Ball, Bore Size: 5mm, Seal Arrangement: Viton Elastomer, Pressure Rating: 10 000 psi / 690 bar Maximum Cold Working Pressure, Handle: Standard Handle, FAT: Standard FAT,
NV0308F02M5V6K - Model Code: Block & Bleed Manifold, Nominal Pipe Size: 1/2", Connection Type: Female NPT, Material: UNS S31600 / S31603 Stainless Steel, Tip Style: Metal Ball, Bore Size: 5mm, Seal Arrangement: Viton Elastomer, Pressure Rating: 6,000 psi / 414 bar Maximum Cold Working Pressure, Handle: Standard Handle, FAT: Standard FAT,
NV03S0804FK6M115002M5V - Modular Solution Block and Bleed Valve.
