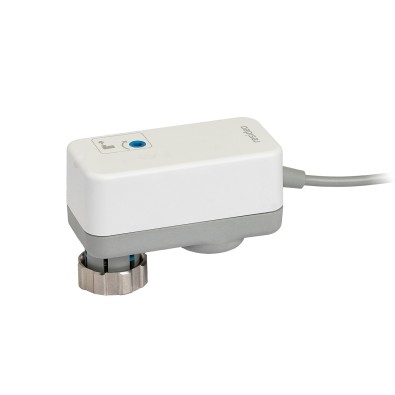

Resideo MLSM Small Modulating Linear Actuator

shipping
fast_delivery
globe
technical
  • 3-point (floating) control
  • Power supply: 100–253 VAC (typically 230 V, 50 Hz)
  • Compact and durable design with IP54 protection
  • Tool-free mounting with M30 x 1.5 connection
  • Low noise operation
  • Visual position indicator
  • Manual override function
  • Stroke approx. 6.5 mm, stem force ~300 N
  • Operating temperature: –5 °C to +60 °C
  • Conforms to EN 60730 standards, Class III insulation
  • Suitable for fan coils, reheaters, small air-handling units
  • Maintenance-free and 5-year warranty (via trade channels)

Type: Small linear actuator with floating (3-point) control
Force: 180 N
Stroke: 6.5 mm
Voltage: 100-253 VAC (50/60 Hz)
Control: Floating (3-point), also 2-point compatible
Manual Operation: Hex key override
Protection: IP54
Mounting & Design: Compact, tool-free mounting (M30 × 1.5), visual position indicator, low noise
Environmental Limits: Operating -5 °C to +60 °C, storage -20 °C to +70 °C, up to 95% RH
Materials & Size: Polycarbonate body, polyamide cover; approx. 100 × 63 × 50 mm; weight ~0.30 kg
Position Feedback: 0/2-10 V DC output signal (max 1 mA)
Use: Accurate control of small linear valves (e.g. PICVs) in HVAC systems, especially where space is limited

HS Code: 8501.10.99
Country of origin: Czech Republic

Type: Small linear actuator with floating (3-point) control
Force: 180 N
Stroke: 6.5 mm
Voltage: 100-253 VAC (50/60 Hz)
Control: Floating (3-point), also 2-point compatible
Manual Operation: Hex key override
Protection: IP54
Mounting & Design: Compact, tool-free mounting (M30 × 1.5), visual position indicator, low noise
Environmental Limits: Operating -5 °C to +60 °C, storage -20 °C to +70 °C, up to 95% RH
Materials & Size: Polycarbonate body, polyamide cover; approx. 100 × 63 × 50 mm; weight ~0.30 kg
Position Feedback: 0/2-10 V DC output signal (max 1 mA)
Use: Accurate control of small linear valves (e.g. PICVs) in HVAC systems, especially where space is limited

HS Code: 8501.10.99
Country of origin: Czech Republic

£93.45 (ex VAT)

£112.14 (inc VAT)

Pre-order
2-3 Weeks

Type: Small linear actuator with floating (3-point) control
Force: 300 N
Stroke: 6.5 mm
Voltage: 100-253 VAC (50/60 Hz)
Control: Floating (3-point), also 2-point compatible
Manual Operation: Hex key override
Protection: IP54
Mounting & Design: Compact, tool-free mounting (M30 × 1.5), visual position indicator, low noise
Environmental Limits: Operating -5 °C to +60 °C; storage -20 °C to +70 °C; up to 95% RH
Materials & Size: Polycarbonate body, polyamide cover; approx. 100 × 63 × 50 mm; weight ~0.30 kg
Position Feedback: 0/2-10 V DC output signal (max 1 mA)
Use: For precise control of small hydronic valves (e.g. PICVs) in HVAC systems, especially in confined spaces

Type: Small linear actuator with floating (3-point) control
Force: 300 N
Stroke: 6.5 mm
Voltage: 100-253 VAC (50/60 Hz)
Control: Floating (3-point), also 2-point compatible
Manual Operation: Hex key override
Protection: IP54
Mounting & Design: Compact, tool-free mounting (M30 × 1.5), visual position indicator, low noise
Environmental Limits: Operating -5 °C to +60 °C; storage -20 °C to +70 °C; up to 95% RH
Materials & Size: Polycarbonate body, polyamide cover; approx. 100 × 63 × 50 mm; weight ~0.30 kg
Position Feedback: 0/2-10 V DC output signal (max 1 mA)
Use: For precise control of small hydronic valves (e.g. PICVs) in HVAC systems, especially in confined spaces

£104.29 (ex VAT)

£125.15 (inc VAT)

Pre-order
2-3 Weeks
