Solenoid Valves

Orifice Size: DN13 - DN50 Body Material: Brass or Stainless Steel on request Seal Material: NBR, EPDM, FKM Media Temperature: Up to 120C WRAS Approved Materials

Port size 1/2" - 2" Pressure range 0-16 bar, operates with zero differential pressure Temperature media ranges covering -30°C to +120°C Body material Brass or Stainless Steel, Seal material NBR, FKM, EPDM Options -.The standard brass housing satisfies all European drinking water requirements, WRAS Approved Materials on request

Port size 1/8' - 1/4', Pressure range 0-10 bar, Body material Brass + st/st, Seal material FPM.

Port Connection: G1/8, G1/4, G3/8, sub-base Body Material: Brass & Stainless Steel Seal Material: FKM, PTFE/Graphite & EPDM Pressure: 0 - 25 Bar Media temprature ranges covering '"10°C + 180°C

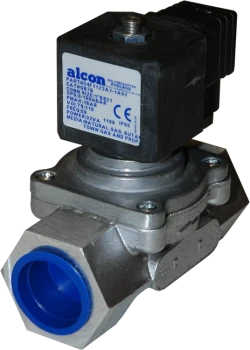

Approved to EN161, Aluminium Body, Direct acting, High flow design.

Fully st/st design, 3/2 & 5/2 Functions, Choice of Seal materials, Ideal of off shore applications.

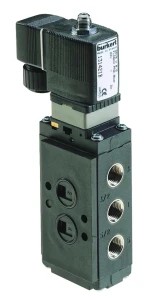

Port connection 1/4' and NAMUR flange, Flow rate 900 (I/min), Valve body Polyamide (PA), With NAMUR adapter plate.

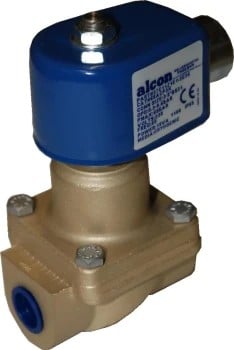

Direct acting, 2way Normally closed, EExed & EExem Options, WRAS approved upto1' (with EPDM).

Port size 1/2' - 1', Pressure range 1-50 bar, Temperature media -10°C to +90°C, Ambient temperature +55°C, max, Body material Brass, Seal material PTFE (O-rings NBR), Un-effected by pressure surges.

Fully st/st design, Ambient Temperature: -20°C to +40°C, 3/2 Closed, Open & Universal functions, IP67 rated.

Pressure Range: 0.2-10 bar, max, Body material: Brass or St/St, Seal material: NBR, EPDM or Viton fluoroelastomers, Separating diaphragm isolates solenoid from operating fluid Lockable manual override as standard.

Port Connection: G 1/2, G 3/4, G 1. Body Material: Brass, grey cast iron, Seal Material: PTFE/graphite, Max Pressure: 12 Bar, Maximum Temperature 180°C.

THIS PRODUCT IS NO LONGER AVAILABLE Direct acting, 2way Normally Open, EExed & EExem Options, Suitable for Vacuum applications.

THIS PRODUCT IS NO LONGER AVAILABLE Direct acting, 3way Normally close, Open, Diverter or Mixing Functions , EExed & EExem Options, Maximum Temperature 180

Temperature -196c, Maximum pressure 8.6bar,

PLEASE NOTE THIS PRODUCT IS NO LONGER AVAILABLE FOR SALE Brass body with Buna seals, Sizes 3/8' -10', Manual lever reset-able, Direct acting.

3/2 & 5/2 Functions, Competitively priced, Options for EExed, Alcon Dual Solenoid coil option.

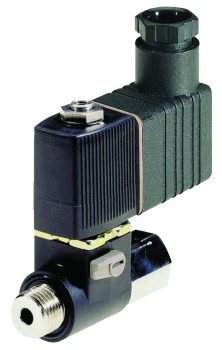

Pressure range 0-10 bar, Temperature media -10°C to +/- 100°C, Banjo bolt Brass, nickel plated, Seal material FPM.

Compact Size, Brass or st/st, Manual Override , 1/8 or sub base mounted, 0-10bar.

Port connections G

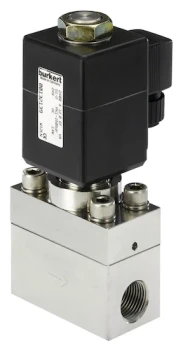

Port Connection: G 1/4, G 3/8, G 1/2. Body Material: Stainless steel, brass and stainless steel, nickel-plated. Seal Material: PEEK/FKM; PCTFE/FKM; PTFE/FKM. Max Pressure: 250 Bar. For high pressures. servo-assisted

Flow rate 900 (I/min), Pressure range 1-10 bar, Manual override, 1/4 Ported.

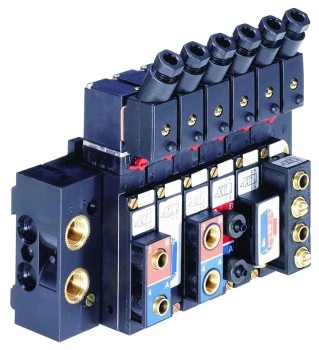

Fully compatible with Rockwell Point I/O System, Combination of Fieldbus, pilot valves and I/O modules, Compact design, High flow rate Fully compatible with Rockwell Point I/O System, Combination Fieldbus, pilot valves and I/O modules, High flow rate

Hazardous area solenoids. Coil with 316 or aluminium housing. Block before bleed. 1/2'NPT (BSP option available). Atex Certification

High flow. Hazardous area solenoids. Coil with 316 housing. Atex Certification. CENELEC - UL approvals. 1/4' NPT and (BSP). Low temperature range.

Pressure Range: 0-10 bar, max. Temperature media: -40°C +180°C (seal PTFE), Body material: Brass or St/St, Seal material: NBR, PTFE, Fluid temperature up to +180°C.

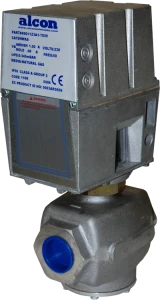

Approved to EN161, Aluminium Body, Direct acting, 11/4' -6' port connections.

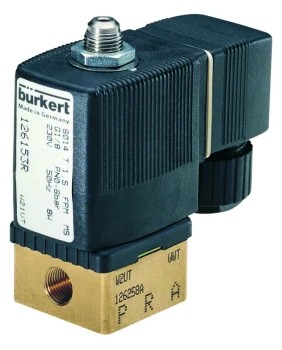

Pressure Range: 0-10 bar, max. Temperature media: -10°C to +100°C, Body material: Brass or St/St, Seal material: FPM.

Port size 1/2' - 2', Pressure range 0.2-16 bar, Temperature media -10°C to +90C, Body material Brass, Seal material NBR, Options - Manual override & Explosion Protection Ex to Eurostandard.

Alcon offer a range of Solenoid coils for general purpose applications. Standard versions and Hazardous versions available. Which can be supplied fitted to most valves with in the Alcon range.
