Level Controllers & Transducers

The Siemens SITRANS LUT400 series controllers are compact, single point, long-range ultrasonic controllers for continuous level, or volume measurement of liquids, slurries, and solids, and high accuracy monitoring of open channel flow.

Monitors wet wells, weirs and flumes. Digital communications with built-in Modbus RTU via RS-485. Compatible with SmartLinx system and SIMATIC PDM configuration software. Single or dual point level monitoring. 6 relay (standard), 1or3 relay (opt.)

Outputs for alarms, chart recorders, controllers and integration of existing systems. Monitors wet wells, weirs and flumes. Energy-saving function with built-in real-time clock. Special control mode to reduce grease rings and other deposits.

Single/dual point level monitoring. False-Echo Suppression for fixed obstructions. Noise reduction and improved signal-to-noise ratio. Level, volume & flow measurements in open channels, differential control, extended pump control and alarm functions

HydroRanger 200 HMI is an ultrasonic level controller for up to six pumps and provides control, differential control, and open channel flow monitoring

MultiRanger 200 HMI is a versatile short to medium-range ultrasonic single and multi-vessel level monitor/controller for virtually any application in a wide range of industries.

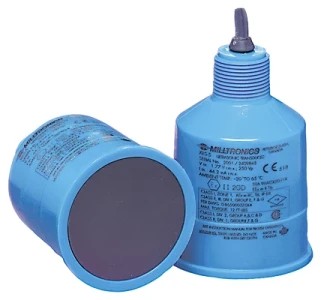

Narrow beam angle of only 10°, Chemically resistant PVDF copolymer enclosure and CSM rubber face, Measuring range: 8 m (26 ft) for measurement of liquids and slurries. Fully submersible: IP68 degree of protection.

Integral temperature compensation, Low ringing effect reduces blanking distance, Optional foam facing for dusty applications, Self-cleaning and low maintenance, Chemically resistant, Hermetically sealed, Ultrasonic Level Transmitter.

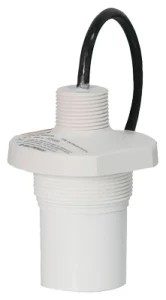

Max. Range: 10 m (33 ft). Min. Range: 0.3 m (1 ft). Max. Temperature: 73°C (163°F) (CSA/FM model) 60°C (140°F) (ATEX model). Frequency: 44 kHz.

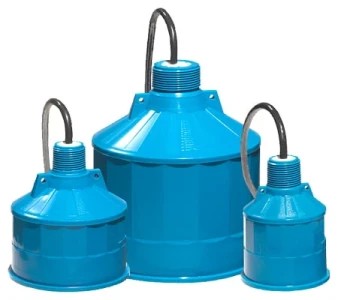

Max. Range: XLT-30: 30 m (98 ft) XLT-60: 60 m (200 ft). Min. Range: XLT-30: 0.9 m (3 ft) XLT-60: 1.8 m (6 ft). Max. Temperature: 150°C (300°F). Frequency: XLT-30: 22 kHz XLT-60: 13 kHz.

Single point, long-range level monitoring. Easy to install and program. Compatible with all Echomax transducers. Backlit display in standard engineering units. Auto level-to-volume conversion. Dolphin Plus and SmartLinx compatible

Dual point, long-range level monitoring. Easy to install and program. Compatible with all Echomax transducers. Backlit display in standard engineering units. Auto level-to-volume conversion. Dolphin Plus and SmartLinx compatible.

Ten point, long-range level monitoring. Easy to install and program. Compatible with all Echomax transducers. Backlit display in standard engineering units. Auto level-to-volume conversion. Dolphin Plus and SmartLinx compatible.

Analog outputs can be up to 1500 m (5000 ft) from the SITRANS LU10. Analog outputs can be per transducer, and/or average of 2 or more.

THIS PRODUCT IS NO LONGER AVAILABLE Pressure Range: 0.30 up to 10 metres, Accuracy: +/ 0.25% of full scale, Resolution: +/- 3mm, Supply Voltage: 18-32 VDC or 110-230AC, Medium temperature: -40 up to +80°C.

THIS PRODUCT IS NO LONGER AVAILABLE Range: 0.30 up to 7 meters, Accuracy

Display: LC graphic display, light blue backlit; 128x168 pixels resolution; German, English, French languages. Keypad: 4 soft keys [F1] [F2] [F3] [F4] for dynamic functions 1 central navigation key.

Measurements: distance, level, volume, and open channel flow Process connections: 2” NPT, 2" BSPT, 2" G Wetted parts: PVDF and optional ETFE sensors Range: 6 meters or optional 12 meters Accuracy: ±6mm Communications/ outputs 4 to 20 mA HART 7 Approvals: ATEX, CSA, FM, INMETRO, KOSHA, EAC, IECEx , Nepsi , TIIS, DNV GL, Lloyds ,
